10.

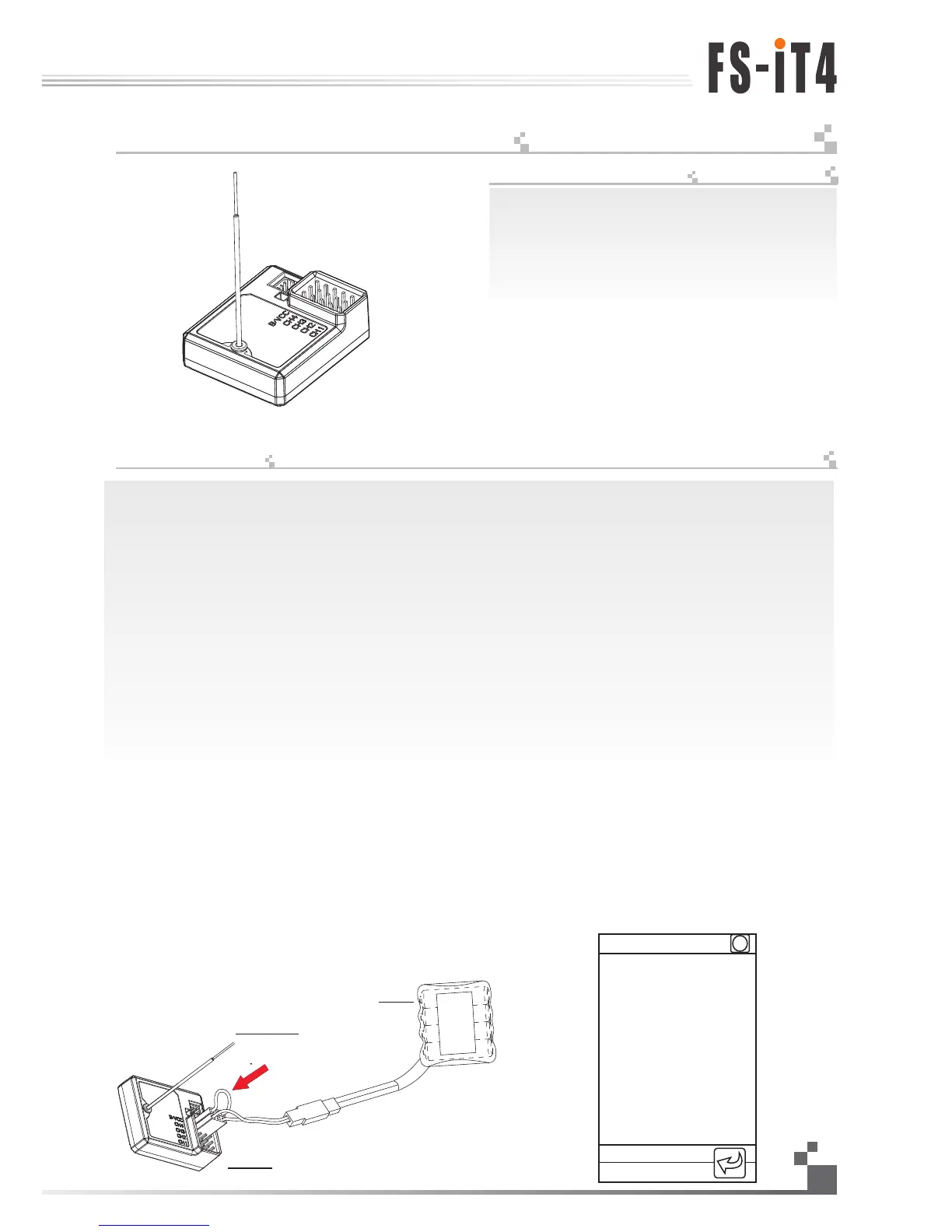

FS-iR4接收机操作说明
CH1-CH4： 表示接收机的相应通道；
BIND,VCC： 表示用于对码和输入电源的通道；
OUT：表示输出PPM数据的ASbus接口，用于连接串行
总线接收机，扩展通道；
IN：表示各种传感器数据的输入接口，数据采集模块可
随意串接；
接口说明
对码
Binding
所有的发射机和接收机，在出厂前都己对码好,无需再次对码，若您需要与另的发射机进行对码
和使用，请按以下方法操作：
1. 发射机装上电池，打开电源；
2. 进入主界面，选择“接收机设置”功能。点触“对码”进入对码状态
3.用产品包装所配的对码线,插入接收机B/VCC 通道;
4. 使用6VDC电源，按正确极性，插入CH1-CH4的任一通道，即可进入对码状态，此时LED灯闪烁；
5. 成功对码后，发射机会自动退出对码状态；
6. 拔掉对码线，重启接收机LED常亮，此时即可插入舵机及其它数据采集模块，检测其工作是否正常；
7. 如果对码失败，可重复以上动作，重新对码。
注意：
配对好的发射机与接收机，当发射机或接收机因误操作而进入对码状态后，会出现不能遥控的现象，
一般情况下，关闭电源重开机即可恢复正常，倘若还是不行，则需要重新对码。
11
Digital propotional radio control system
FS-iR4 operation instruction
port instruction
CH1-CH4 represent relevant channel of transmitter.
BIND,VCC represent the channel used for matching
and input power respectively.
OUT: represent ASbus port of outputting PPMS data
and be used for connecting the serial bus
receiver to expand channels.
IN: Represent input ports of all kinds of sensor data,
and data acquisition modules can be connected
in serial optionally.
:
:
All receivers are already bound to their respective transmitter at production time. If you want to
bind it with another transmitter, please operate as follows:
1. Install the battery in the transmitter, and turn on the power.
2. Open the main menu, and select "RX setup" function in the second page, then touch "Bind with a
receiver" to enter bind mode.
3. Insert the standard bind cable into the power supply channel.
4. Connect the 6VDC power connector to any channel from CH1 to CH4 with correct polarity to enter
bind mode. The receiver LED will flash at this time.
5. The transmitter will exit the bind mode automatically after having successfully bound with the
transmitter.
6. Pull off the bind cable and restart the receiver. Please connect the servos and other telemetry
modules to the receiver to check if everything operates normally.
7. If anything is wrong, please repeat the above steps to bind again.
Notice:
The binded transmitter and receiver will work abnormally if the transmitter or the receiver enters the binding state
by mistake.In other words, the receiver cannot be controlled by the transmitter.
If so, just need to restart the transmitter and the receiver. If it still doesn't work,
please bind the transmitter with the receiver again.
battery
Bind Jumper
Receiver
电池
对码线
接收
?
Bind with a receiver
Bind receiver mode
active.
Press the back button
to exit.
To Next Page
