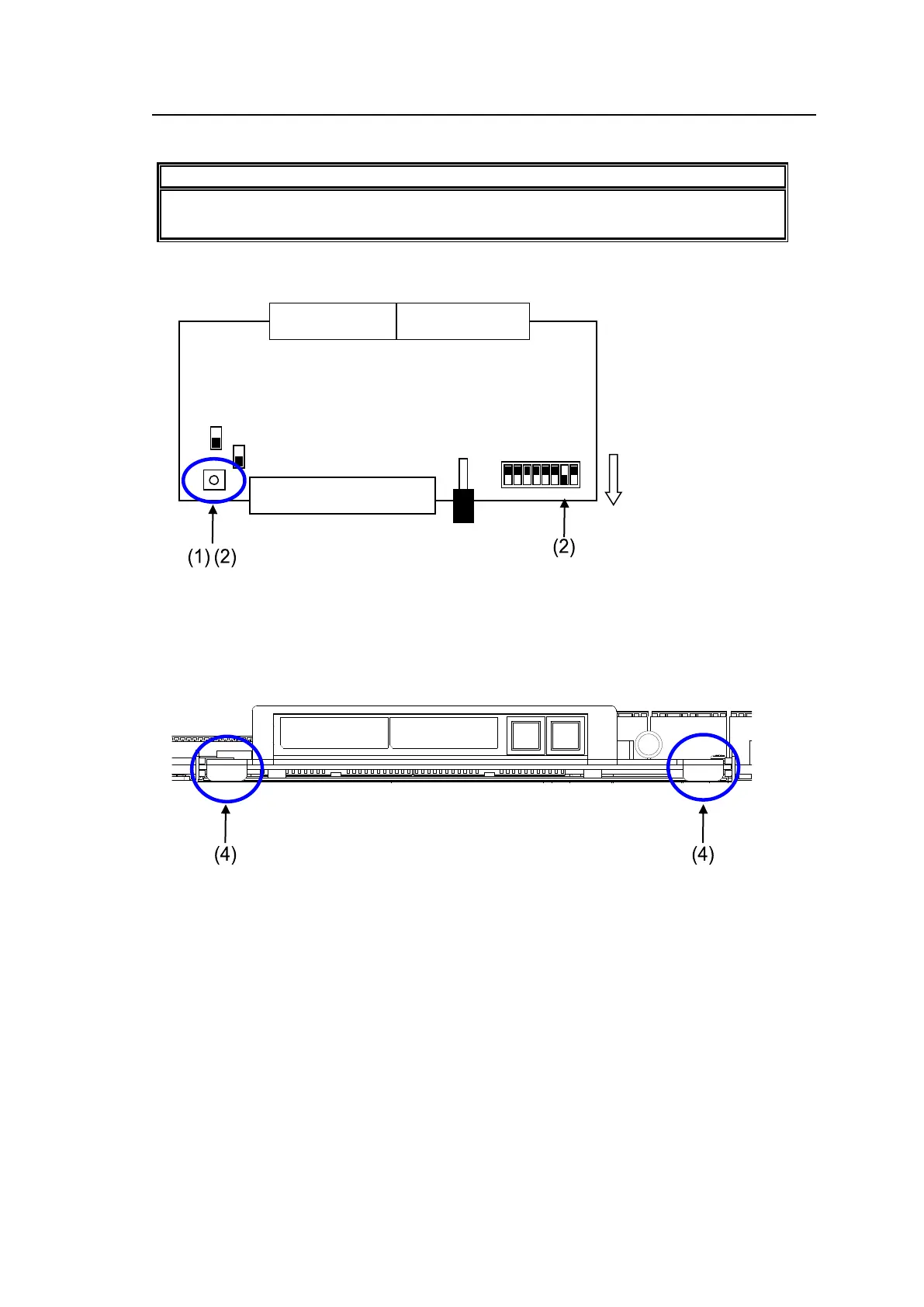

2-3-3. MFR-16MV
MFR-16MV is an SDI output card and can output 16 of 3G/HD/SD-SDI and ASI signals.
Up to 4 cards can be installed into Slot No. 09 to 16. Two slots are required for each card.
Any outputs (BNC) on the card are available for multiview channels. 3G/HD-SDI signals can
be output for multiview output.
► See “Input /output cards and Slots” in Sec. 2-2. "MFR-3100EX Rear Panel."
► See Sec. 4. “Multiview Output.”
BNC x 16 outputs (3G/HD/SD-SDI or ASI signal depending on crosspoint selections)
2-3-4. MFR-8SDIGB
The MFR-8SDIGB is an SDI input card that accepts 12G/3G-SDI signals and supports
Gearbox feature in which video signal conversions between 12G-SDI and Quad Link 3G-SDI,
and between 2SI and SQD are available.
► See Sec. 5. “Gearbox Feature (MFR-8SDIGB/8SDOGB).”
The following input combinations are available (Only 1D and 2D BNC connectors can accept
12G-SDI signals):
12G-SDI signal * 2
3G-SDI signal * 8
12G-SDI signal * 1 and 3G-SDI signal * 4
Up to 8 cards can be installed into Slot No. 01 to 08.
► See “Input /output cards and Slots” in Sec. 2-2. "MFR-3100EX Rear Panel."
BNC x 8 inputs (12G/3G-SDI)
Set up input signals in the Web-based Control Software as shown below.
◆ Gearbox settings
Open the [(Main Unit Settings) - Gearbox Settings page].
This page allows you to set Gearbox input and output signals, lock mode and delay.
