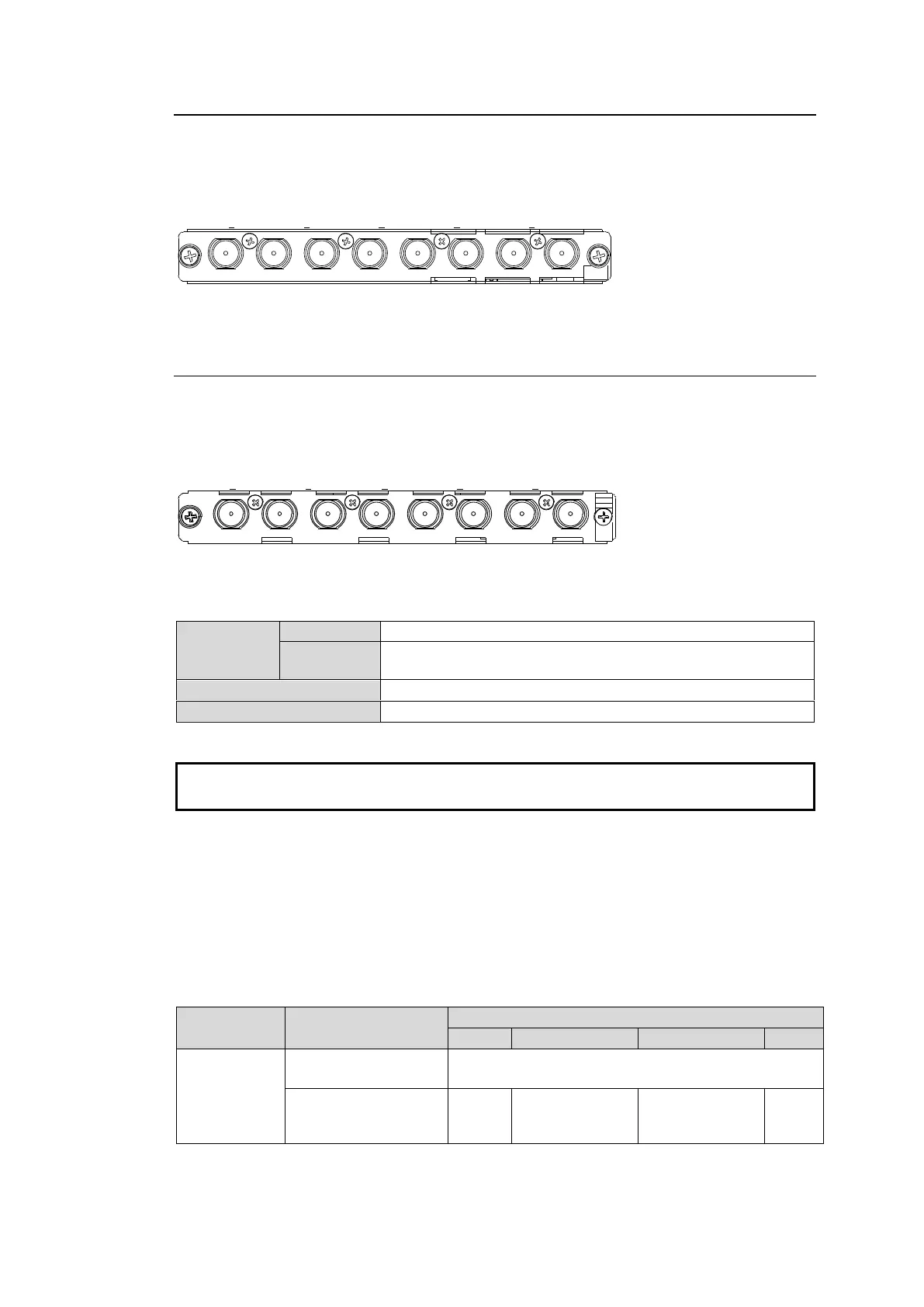

2-4-5. MFR-8SDI (MADI Input)
MFR-8SDI is an SDI or digital audio input card.
When using as an SDI input, refer to Sec. 2-3-1 “MFR-8SDI” for details.
When using as a digital audio input, it can accept 8 MADI signals.
Up to 8 cards can be installed into Slot No. 01 to 08.
► See “Input /output cards and Slots” in Sec.2-2. "MFR-3100EX Rear Panel."
BNC x 8 inputs (64 audio channels per input) unbalanced 75-ohm
2-4-6. MFR-8MADIPO (MADI/SDI Output)
MFR-16MADIPO is a digital audio/ video output card.
Maps audio input channels in SDI / AES/EBU / MADI streams and outputs as MADI / SDI
signals.
Up to 9 cards can be installed into Slot No. 09 to 17.
► See “Input /output cards and Slots” in Sec. 2-2 "MFR-3100EX Rear Panel."
BNC x 8 outputs (MADI/SDI x 8) 75-ohm
◆ Supported formats
1080/59.94i, 1080/50i, 1080/29.97PsF, 1080/23.98PsF,
720/59.94p
Audio input (48kHz / 24bit)
MADI (64-channel only), AES/EBU
Audio output (48kHz / 24bit)
Sampling Rate Converter is not equipped with the card.
Inputting audio should be synchronized with the router REF (reference) input.
The following functions are available and managed by a group of 8 streams.
◆ Mapping
Selects the input type from SDI, MADI (1-32), MADI (33-64) or AES and the output type from
SDI or MADI, and maps audio sources to outputs per physical channel (stream).
Set Mapping in [Web-based Control: Audio Settings page].
If MADI is selected under Output Type, audio sources of last half channels (33-64) cannot be
assigned, but are automatically set according to the input signal type. (See the table below.)
First half 32 channels
(Ch 1-32)
Mapped audio source channels
Last half 32 channels
(Ch 33-64)
33-64 channels of
MADI input
stream
1-32 channels of
MADI input
stream
