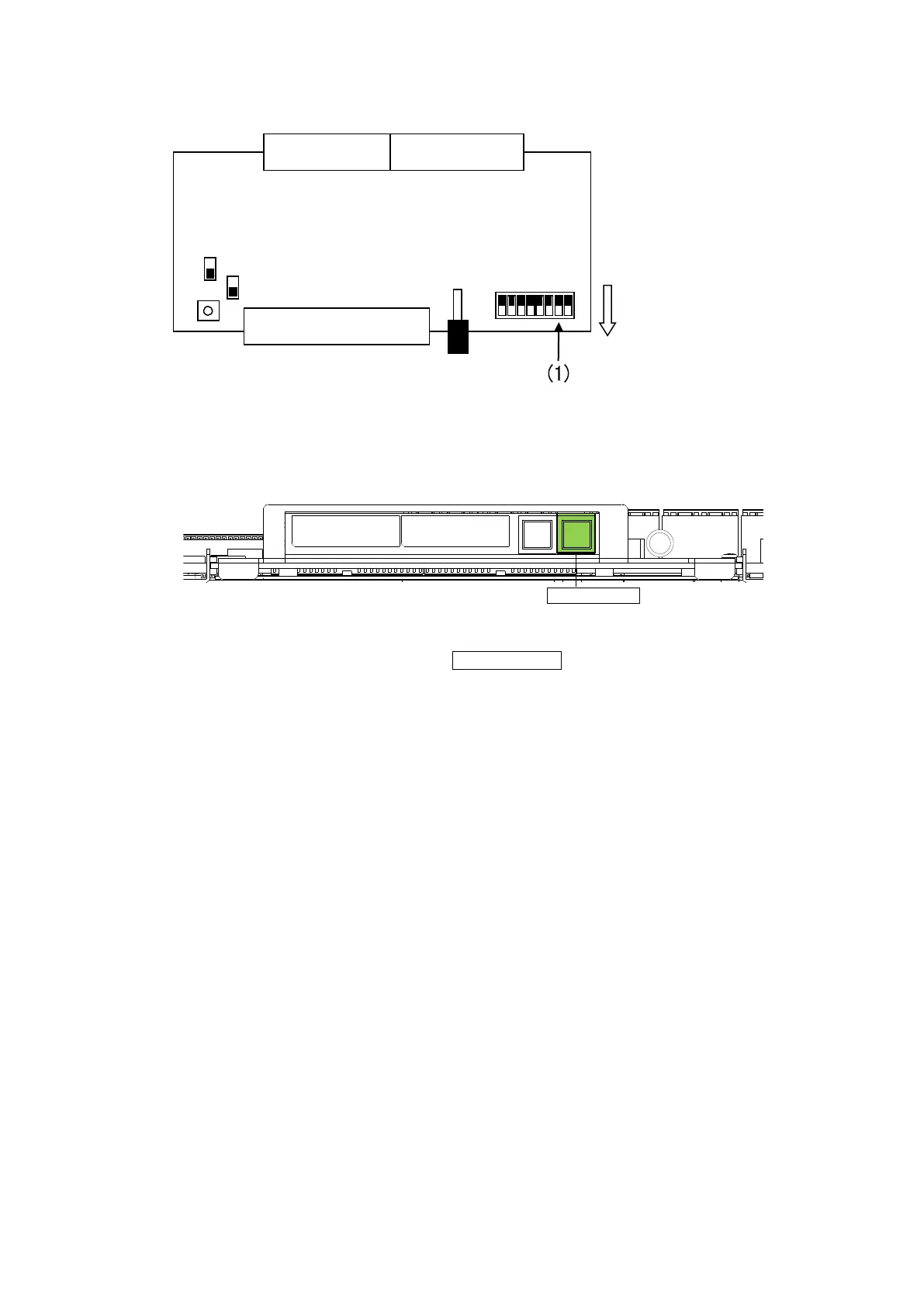

2-3-5. MFR-8SDOGB
The MFR-8SDOGB is an SDI output card that accepts 12G/3G-SDI signals and supports
Gearbox feature in which video signal conversions between 12G-SDI and Quad Link 3G-SDI,
and between 2SI and SQD are available.
► See Sec. 5. “Gearbox Feature (MFR-8SDIGB/8SDOGB).”
The following output combinations are available (Only 1D and 2D BNC connectors can accept
12G-SDI signals):
:
12G-SDI signal * 2
3G-SDI signal * 8
12G-SDI signal * 1 and 3G-SDI signal * 4
Up to 9 cards can be installed into Slot No. 09 to 17.
► See “Input /output cards and Slots” in Sec. 2-2. "MFR-3100EX Rear Panel."
BNC x 8 outputs (12G/3G-SDI)
Set up output signals in the Web-based Control Software as shown below.
◆ Gearbox settings
Open the [(Main Unit Settings) - Gearbox Settings page].
This page allows you to set Gearbox input and output signals, lock mode and delay.
2-3-6. MFR-8SDODL
The MFR-8SDODL is an SDI output card, allowing up to 5H phase adjustment against
reference.
► See Sec. 6. “AVDL Function (MFR-8SDODL).”
Up to 9 cards can be installed into Slot No. 09 to 17.
► See “Input /output cards and Slots” in Sec. 2-2. "MFR-3100EX Rear Panel."
BNC x 8 outputs (3G/HD-SDI)
Set up output signals in the Web-based Control Software as shown below.
◆ AVDL Settings
Open the [(Main Unit Settings) - AVDL Settings page].
This page allows you to set the video format and a delay to be added.
