3. Product Description

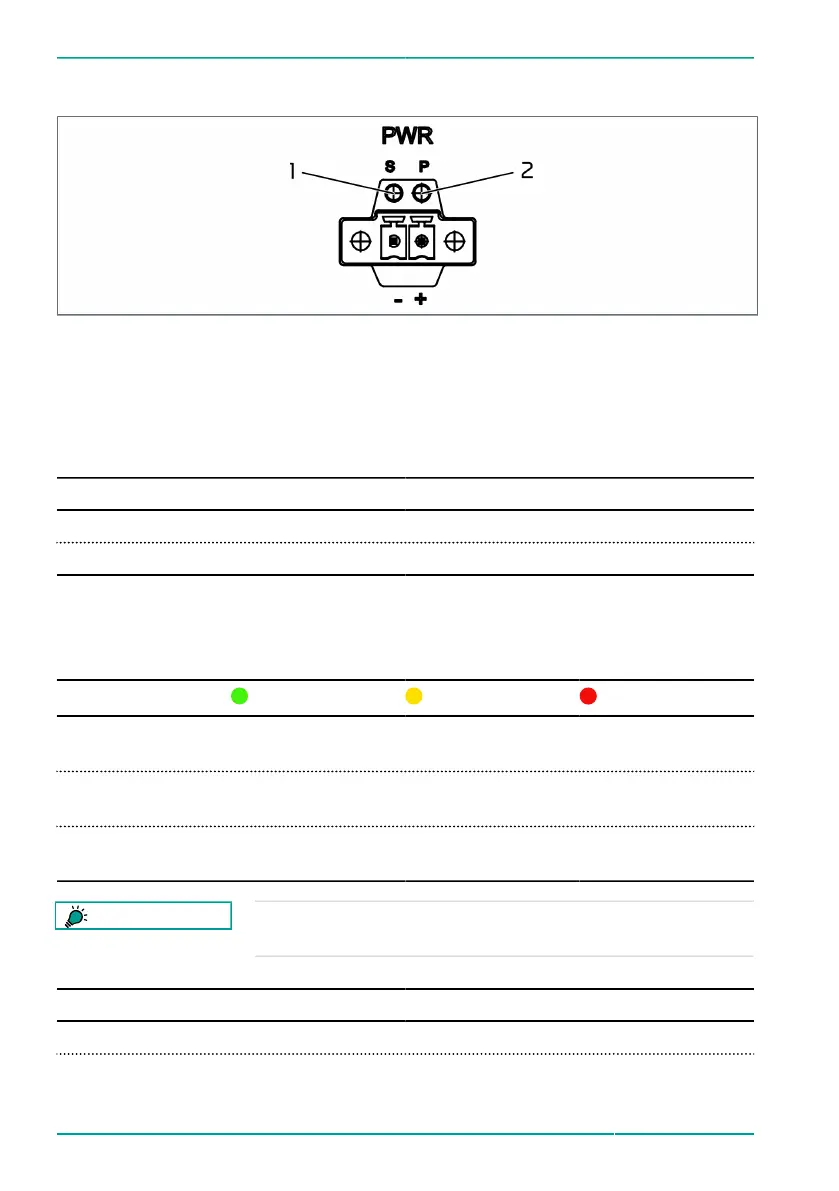

Figure 8: LEDs on the PWR connector
1
Status-LED
2
Power-LED
POWER-LED
Table 16: POWER-LED on the PWR connector
POWER-LED Meaning
On Power supply OK
Off No power supply
STATUS-LED
Table 17: STATUS-LED on the PWR connector
STATUS-LED
Green Yellow Red
On System healthy
Measurement
warning
Measurement
error
Slow flashing
Sytem auto
adjust
- System error
Fast flashing - Identify
System not
adjusted
TIP
The STATUS-LED flashes quickly every 4 s when in the state
On.
Table 18: STATUS-LED and device state
Device state Description
System healthy Normal operation
22 / 76
MDE1195_4-10_1.3.x_5.0_Blackbird
OECD_(9CH, PRN)-en-us
© fos4X 2020
