fos4X Blackbird OECD MDE1195 User Manual

3. Product Description
Device state Description
Sytem auto adjust
■
System booting
■
Light source is regulating
Measurement warning
■
Sensor signal low or near to clipping
■
Temperature warning: Overheating
of the device or ambient
temperature at specification limit
Measurement error
■
Sensor error
■
Temperature error
Identify
Status is activated by a network
command. The blink pattern can be used
to identify the Blackbird OECD.
System error
■
Error in the power supply
■
Error in the light source
■
General system error
System not adjusted
■
No adjustment for the OE chips
loaded
■
Microcontroller defective
3.4.1.3 LEDs on the ETH Connector
There are 2 LEDs on the Ethernet connector.

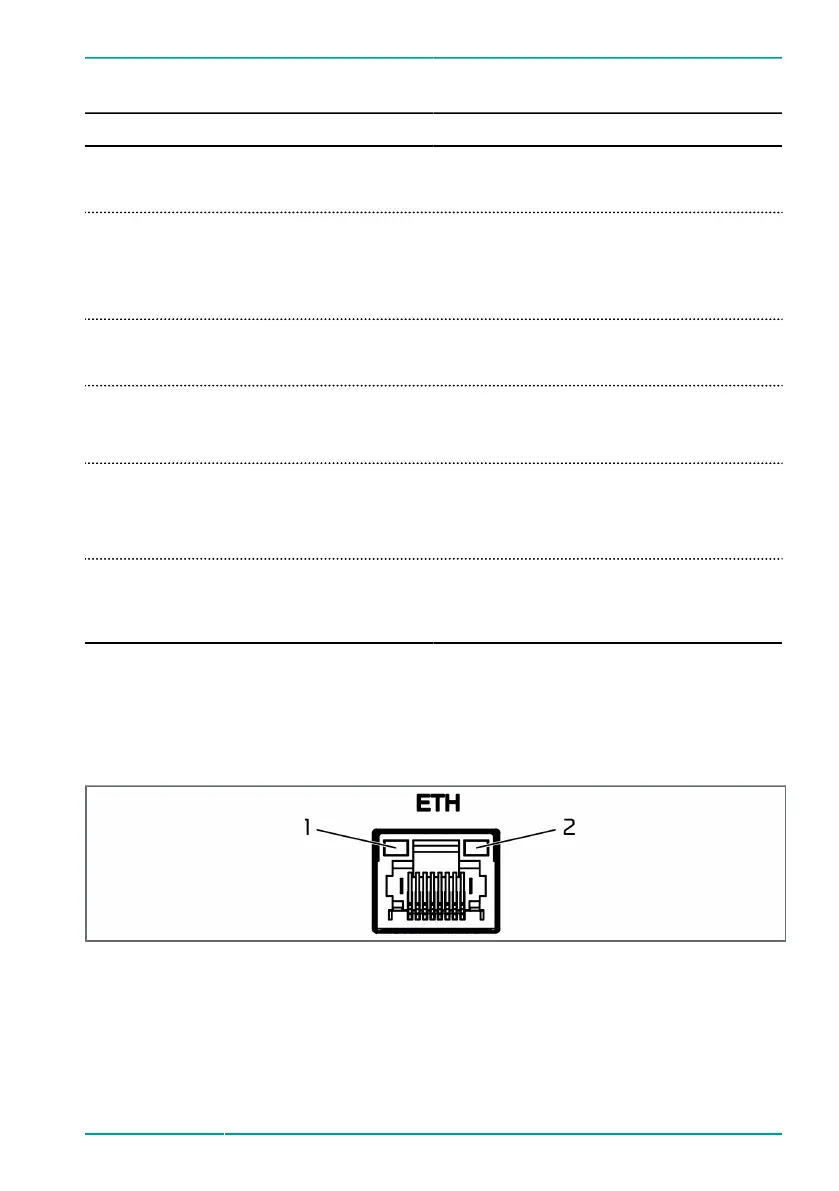

Figure 9: LED on the Ethernet connector.
1
Power-LED (green)
2
Status-LED (yellow)
© fos4X 2020
MDE1195_4-10_1.3.x_5.0_Blackbird
OECD_(9CH, PRN)-en-us
23 / 76
