3. Product Description
3.5.2.2 System State
The page SYSTEM STATE consists of the following pages:
■
SIGNAL STATE
■
HARDWARE STATE
■
SYSTEM REBOOT
Signal State

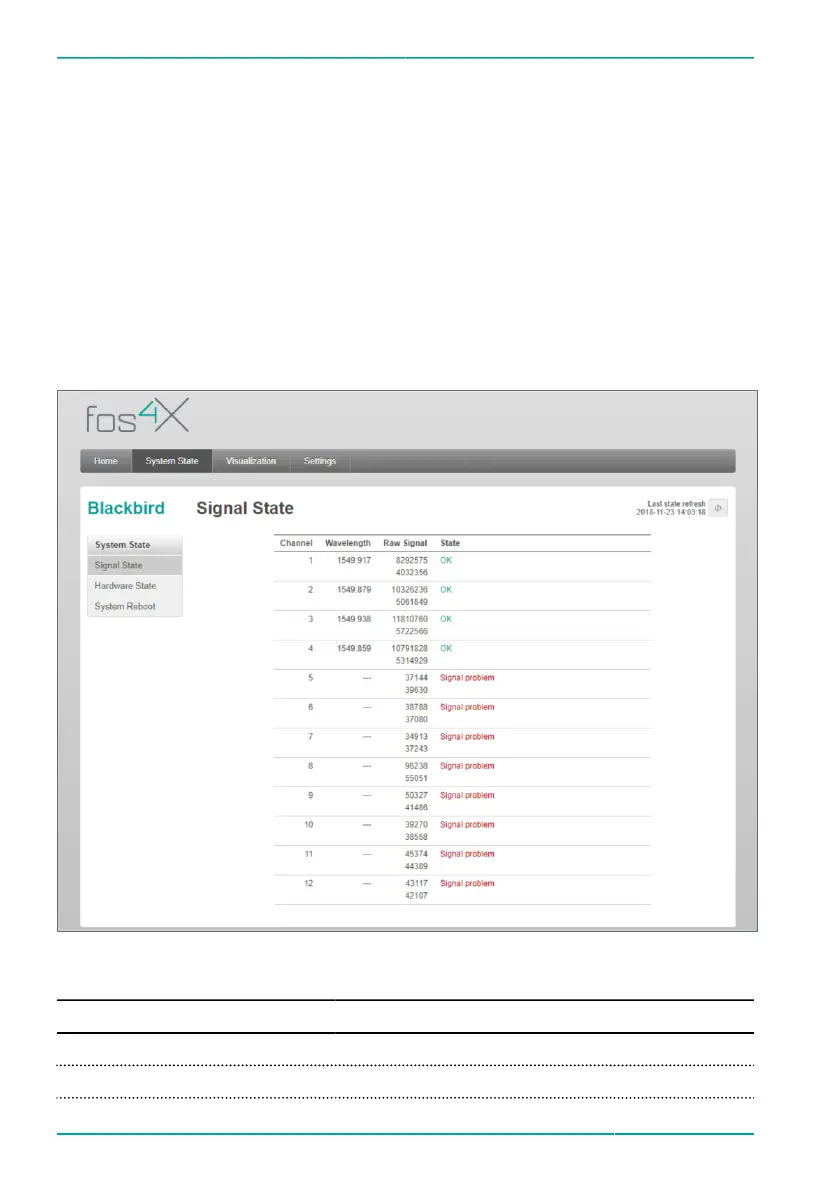

Figure 12: Signal State (number of channels depends on the variant)
Table 26: Signal State: Informations about each channel
Column Content
Channel Number of the channel.
Wavelength Wavelength of the sensor.
