3. Product Description
Column Content
Raw Signal
Signal value of the sensor: Reference (top) and
Filter (bottom).
State Status of the channel.
Hardware State

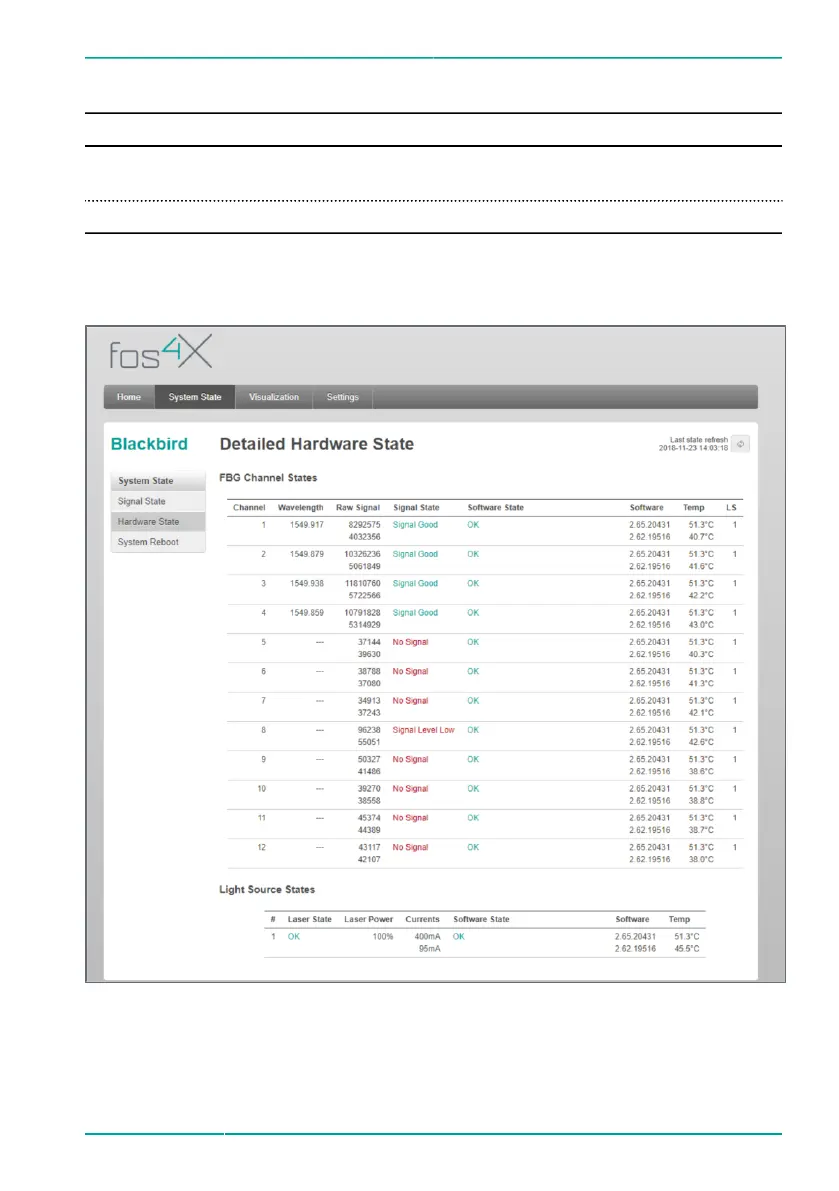

Figure 13: Detailed Hardware State (number of channels depends on the variant)
