3. Product Description
System Reboot

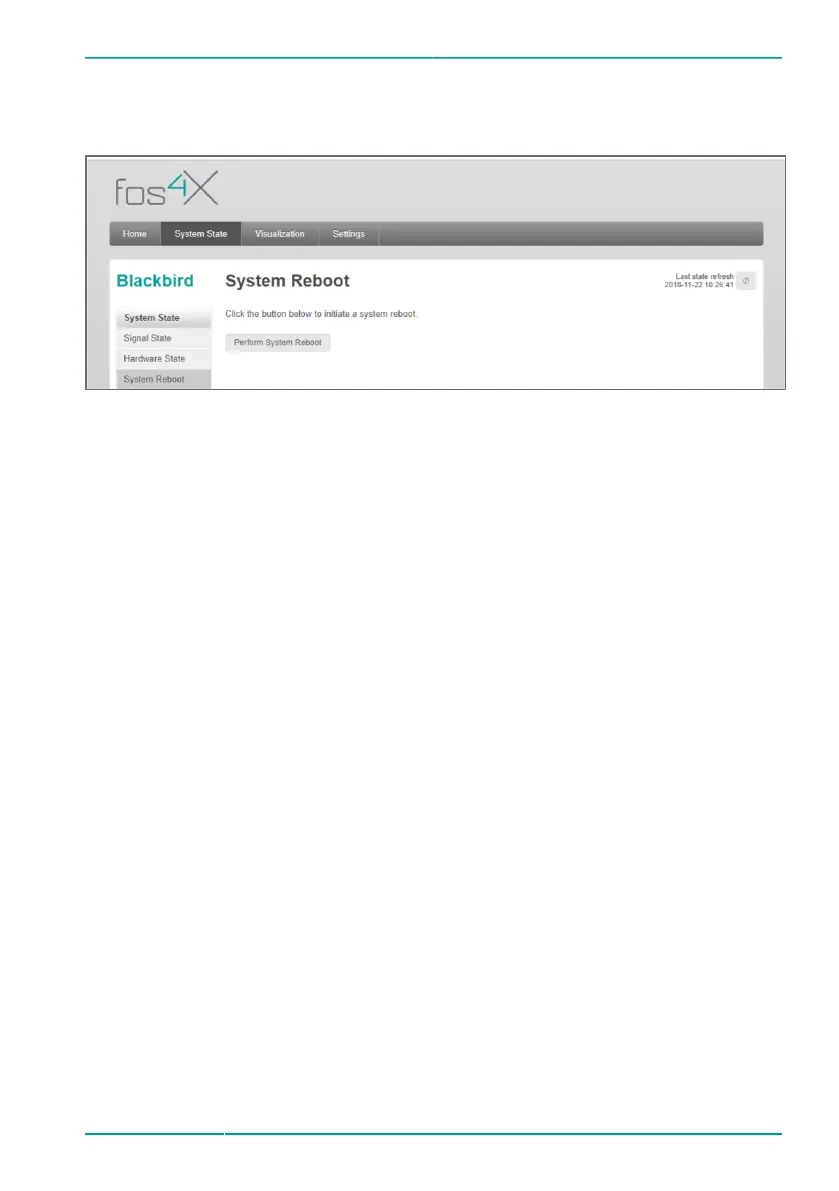

Figure 14: Sy
stem Reboot
A restart of the Blackbird OECD sy
stem can be carried out by clicking on the PERFORM
SYSTEM REBOO
T button.
© fos4X 2020
MDE1195_4-10_1.3.x_5.0_Blackbir
d
OECD_(9CH, PRN)-en-us
31 / 76
