3. Product Description
3.5.2.3 Visualization

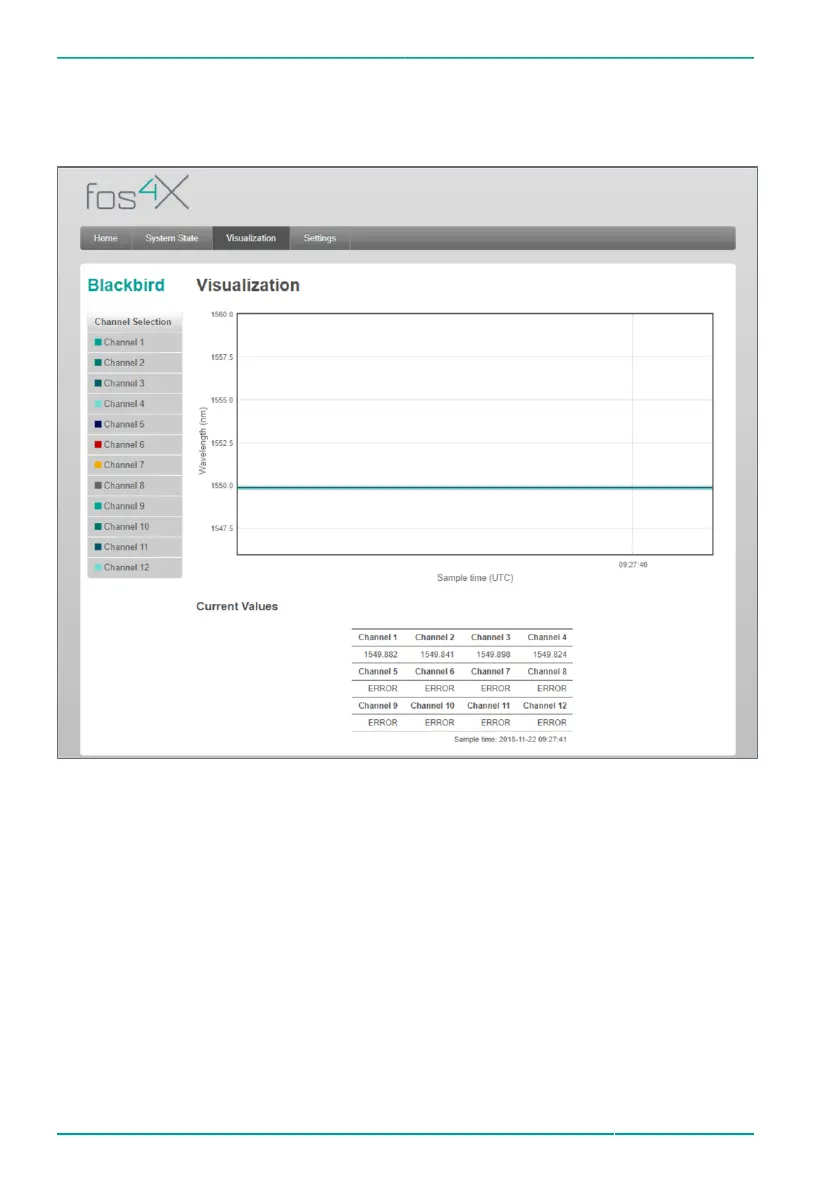

Figure 15: Visualization (number of channels depends on the variant)
The page VISUALIZATION graphically displays the wavelength curve of the connected
sensors.
The channels can be selected by clicking on the channel at Channel Selection.
The current wavelengths for all channels are displayed in the Current Values
section.
