SMP 86 M _/F
– 14 –
EN
Removing the side frames
Bend the crosspiece engaged in the fixing bush
downwards and remove it from the groove.
Tilt the frame upwards by approx. 60° and push it
slightly in the direction of inclination.
Keeping the frame tilted, remove the two top
hooks from the respective holes.
Fitting the side frames
Keeping the frame tilted, insert the top hooks
in the respective holes, pushing lightly in the
direction of inclination.
With the frame tilted, pull in the direction of
inclination until the top hooks stop against the
outside of the compartment wall.
Turn the frame towards the compartment wall.
Bend the crosspiece engaged in the fixing bush
downwards and remove it from the groove.

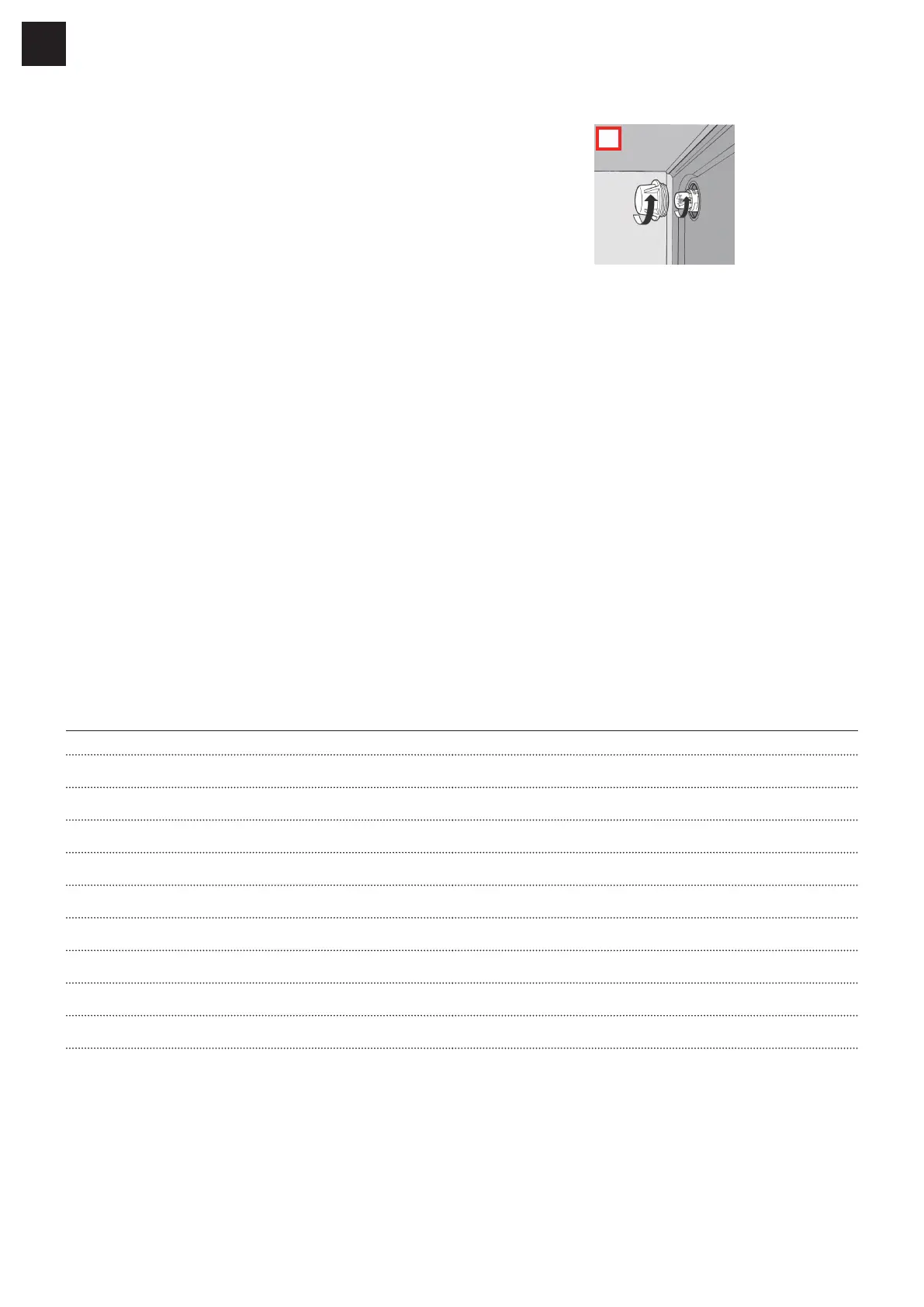

Replacing the oven lamp
A
Franke ovens are equipped with a circular lamp
positioned in the top left area at the back of the
compartment. To replace the oven lamp, proceed
as follows:
Turn off the power to the appliance by means of
the omnipolar switch used for connecting it to
the electrical system, or disconnect the plug if
accessible.
Unscrew the glass cover (A).
Unscrew the lamp and replace it with one
resistant to high temperatures (300 °C),
with the following characteristics:
– Voltage: 220/240 V ~ 50-60 Hz
– Power: 25 W
– Connection: G9
Refit the glass cover (A) and reconnect the power
supply.
TECHNICAL DATA
Power supply voltage and frequency 220-240 V, 50/60 Hz
Total power and fuse rating 2850 W ~ 16 A
Power and heating elements
Upper 1000 W
Lower 1250 W
Grill 2250 W
Fan 30 W
Tangential fan 15 W
Oven lamp 1 x 25 W
