Step 3: aPower

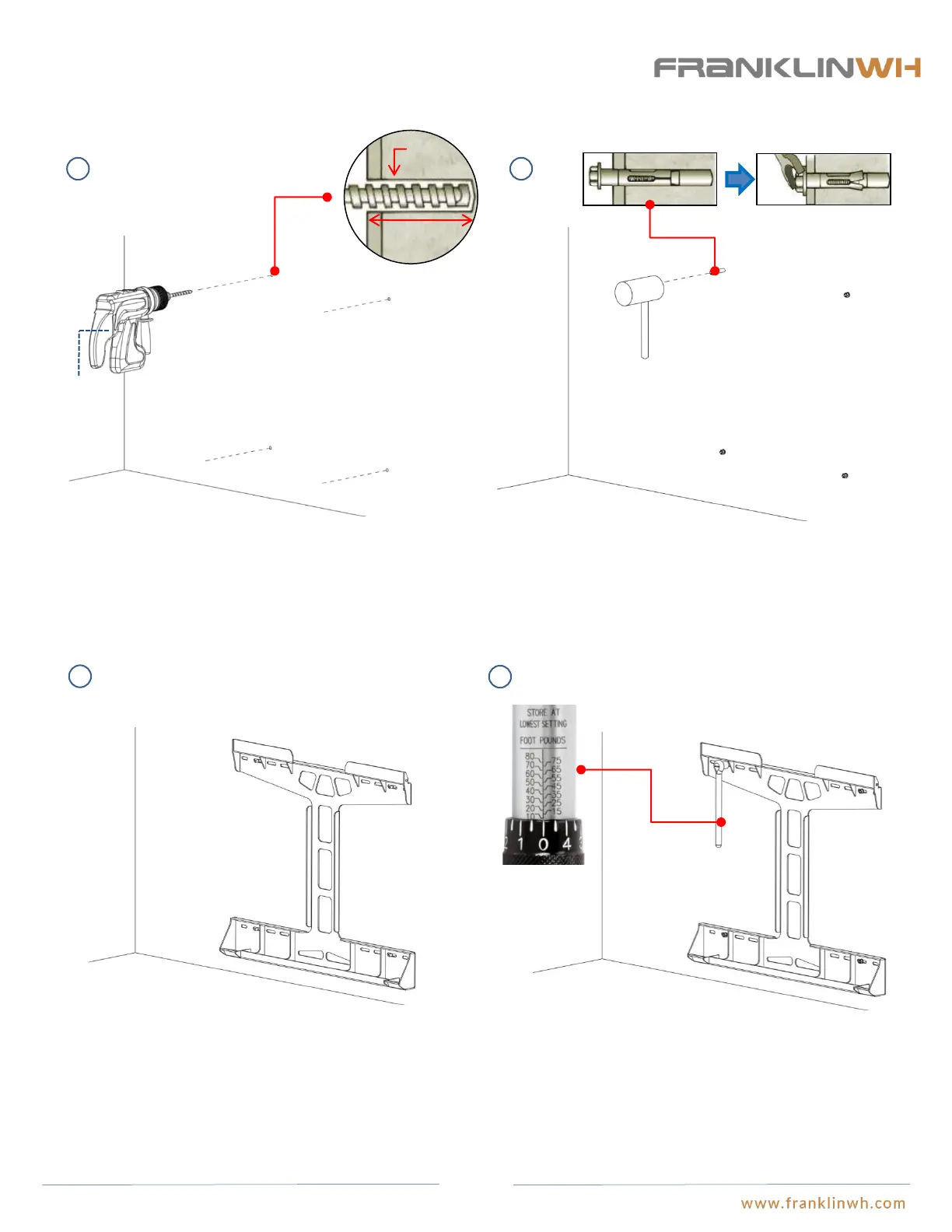

● The following are basic steps to use the mounting bracket on concrete or brick structures:
Hammer drill
Hammer
Torque wrench
1 2
1/2 in Ø
≥1-1/2in
1. Using a hammer drill and carbide tipped drill bit, drill a hole the
same diameter as the anchor diameter, and at least 1-1/2 ” deeper
than the expected embedment. Ensure that all fasteners are at least
1-1/2 ”(38 mm) away from the edges of masonry blocks or bricks.
Clean out the hole of all debris.
2. Set the nut flush with the top of the sleeve anchor. Use a
hammer to drive the sleeve anchor into the hole in the base
material until the washer and nut are tight against the fixture.
Turn the nut until finger tight. Use a 7/16”wrench to set the
anchor by turning the nut three to four full turns.
3. Use a 7/16” wrench to turn the nut in the opposite direction.
Remove the nut, spring washer, and flat washer from the sleeve
anchor. Set the Mounting bracket to the sleeve anchor.
3
4
4. Use a 7/16” wrench to fix the Mounting bracket by turning the
nut until the torque is 56 in-lbs.
56 in-lbs or
4.63 lbf.ft
