Free2Move eSolutions eProWallbox - Description of ports

15
Installation Manual

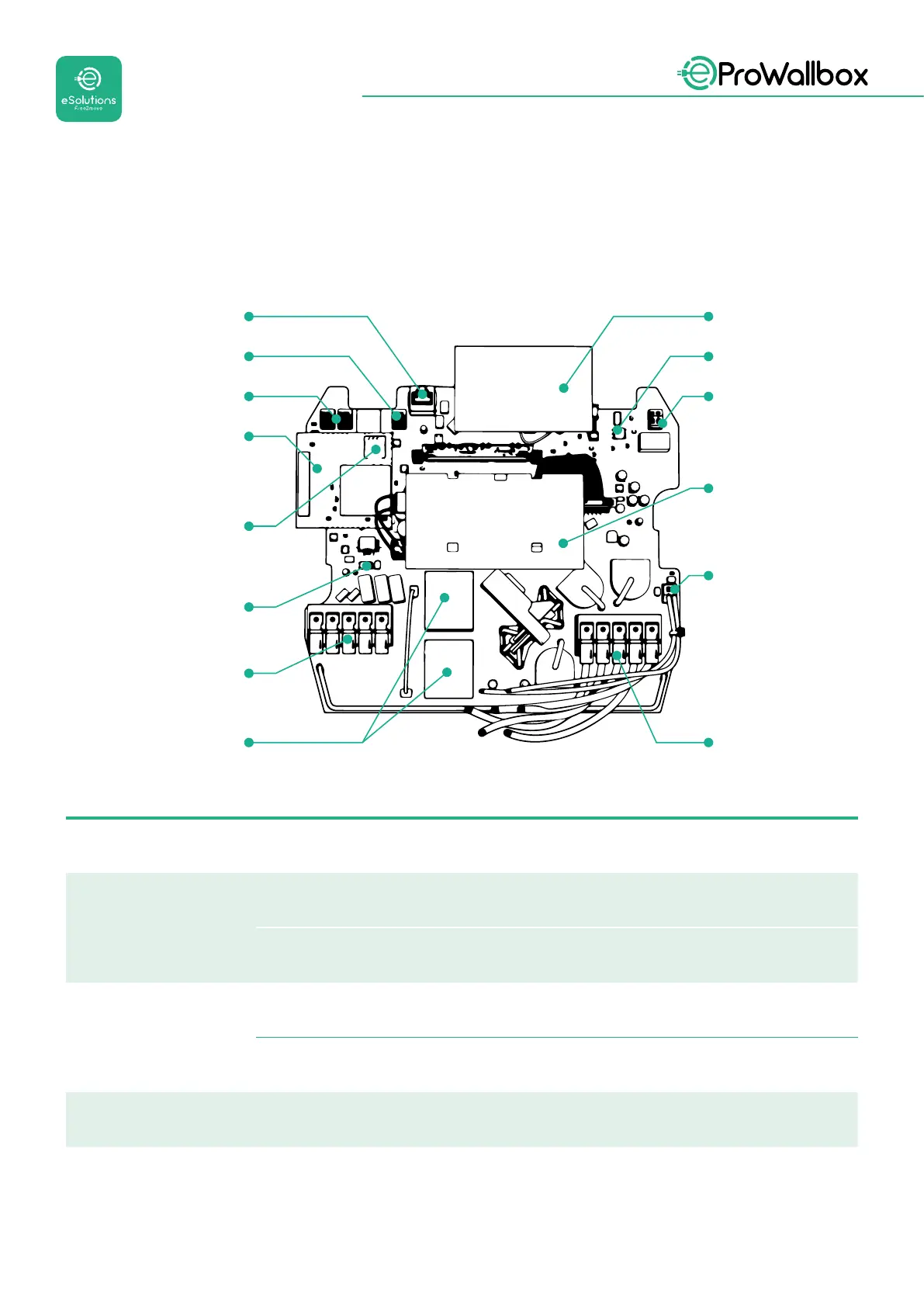

2.6 Description of ports
The following table summarises the ports available on eProWallbox:
RFID reader
(SW1) Rotary
Switch
(CN3) Shunt Trip
ISO15118
PP/CP
Power output cableRelays
(CN1) Power input Cable
(SW2) DIP Switch
SIM Card
4GLTE, WI-FI,
BLE Board
(CN9-CN10)
RS485 x1 DC
ETH 1x
(CN12) RS485 x1 DPM
Type Port Port code Scope N
Input Power Cables CN1 Terminals for power cables 1x
Communication
RS485 DC
CN9
CN10
RS485 Modbus for Daisy Chain
communication
2x
RS485 DPM CN12
RS485 Modbus for external meter
communication
1x
Conguration
Rotary Switch SW1 Power safety limit setting 1x
DIP Switch SW2 Setting for IT grid connection 1x
Safety Shunt trip contact CN3 Free contact NO for MCB release 1x
