Free2Move eSolutions eProWallbox - Page 23

23
Installation Manual
• Pushthexingplugsintotheholeswithahammer

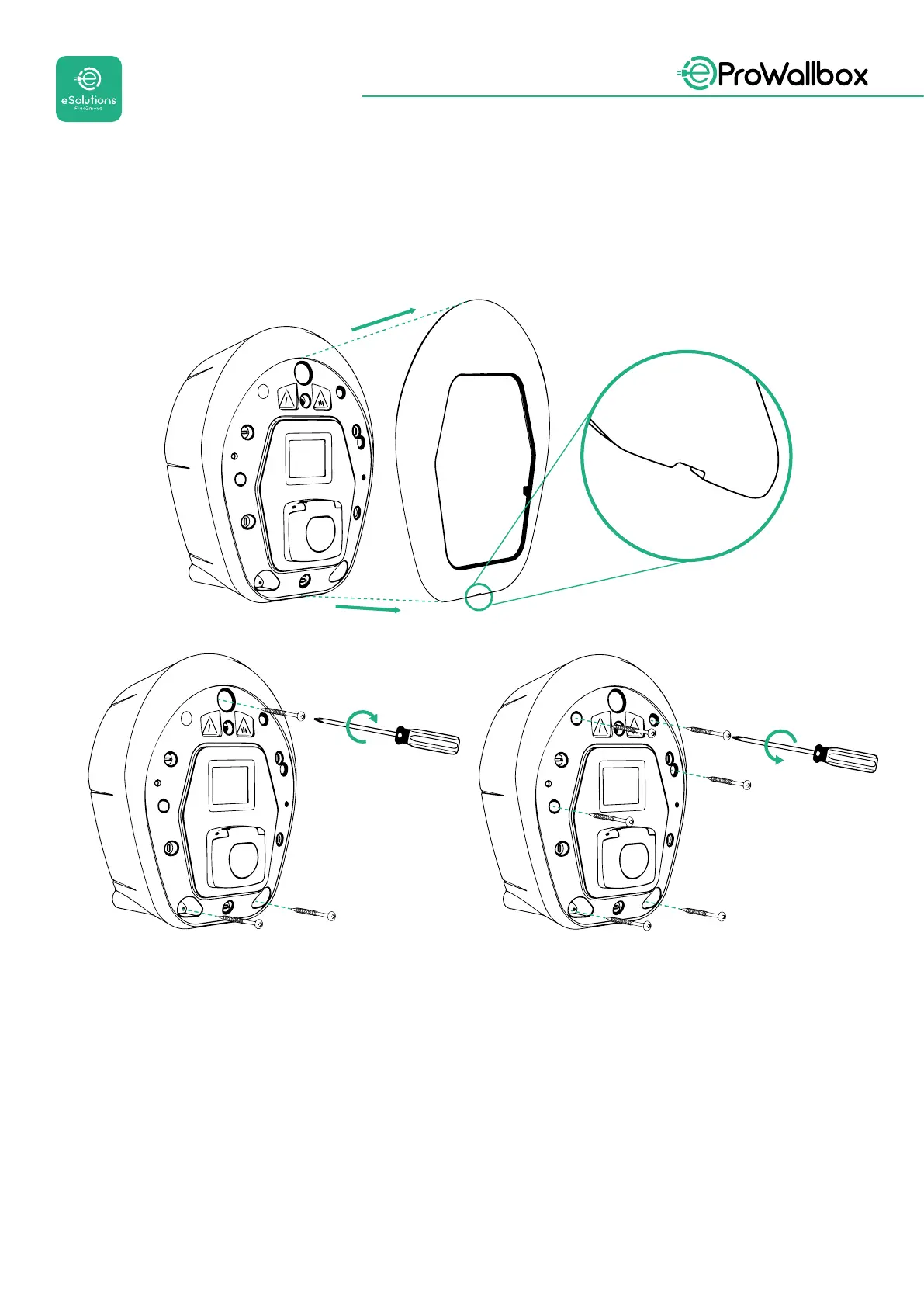

• Secure the main body to the wall by inserting the screws through the holes.
• Remove the external cover using the groove on the bottom.
• Fix eProWallbox by inserting the 3 screws in the wall plugs using the
Philips-head screwdriver.
• To proceed with electrical installation, pull the cover out removing the 6
screws using the Torx T20 ¼’’ screwdriver.
