Installation Manual

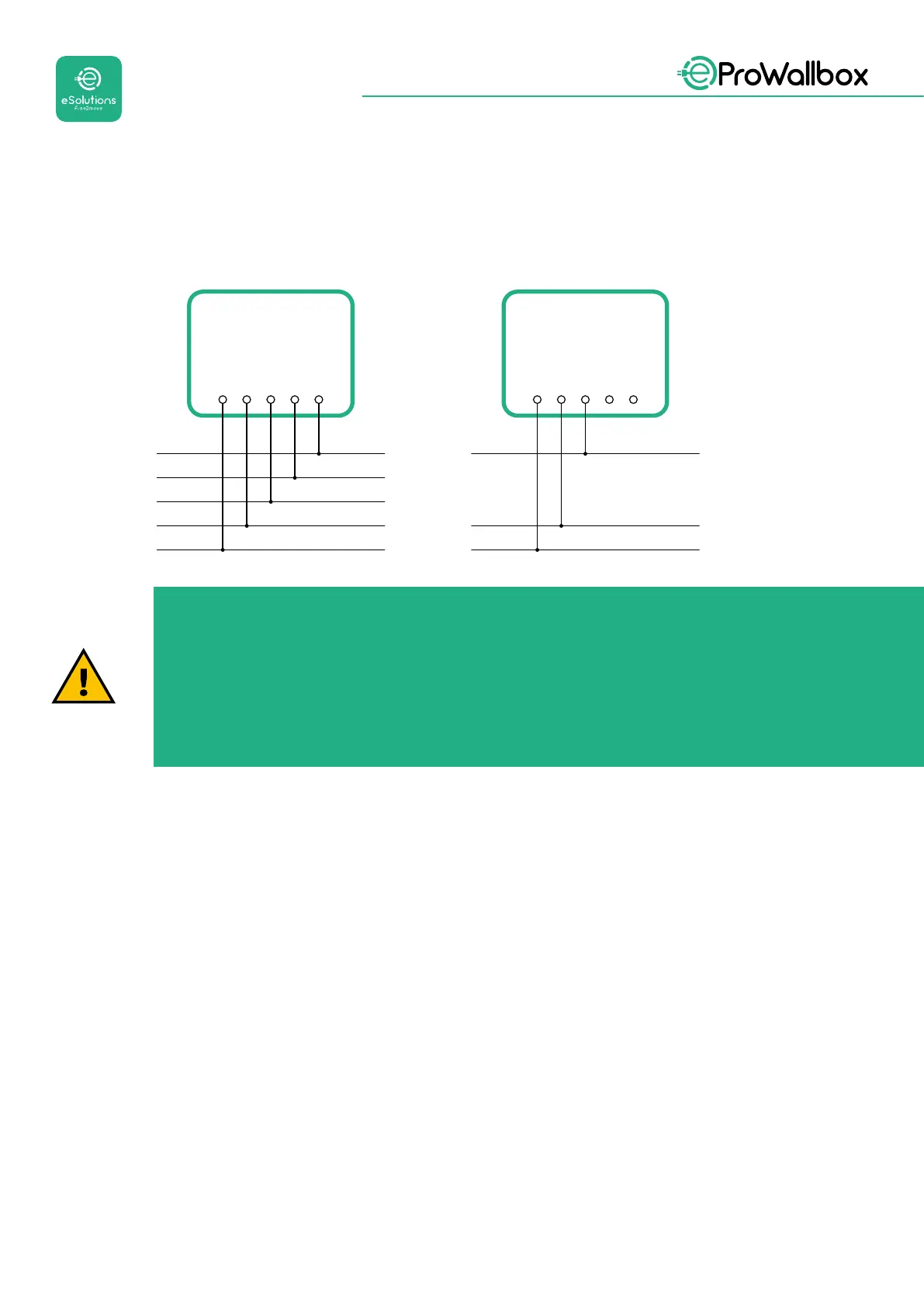

The following diagrams show how to electrically connect the device in single-phase
or three-phase systems.
PE
L1
L2
L3
N
PE
N T RS
PE
L1
N
PE
N T RS
CAUTION
In the case of installations in three-phase systems, ensure that
the electrical loads in the system (including the wallbox) are well
balanced between the phases.
In the event of multiple installations, we recommend sharing the
load between all available phases.
