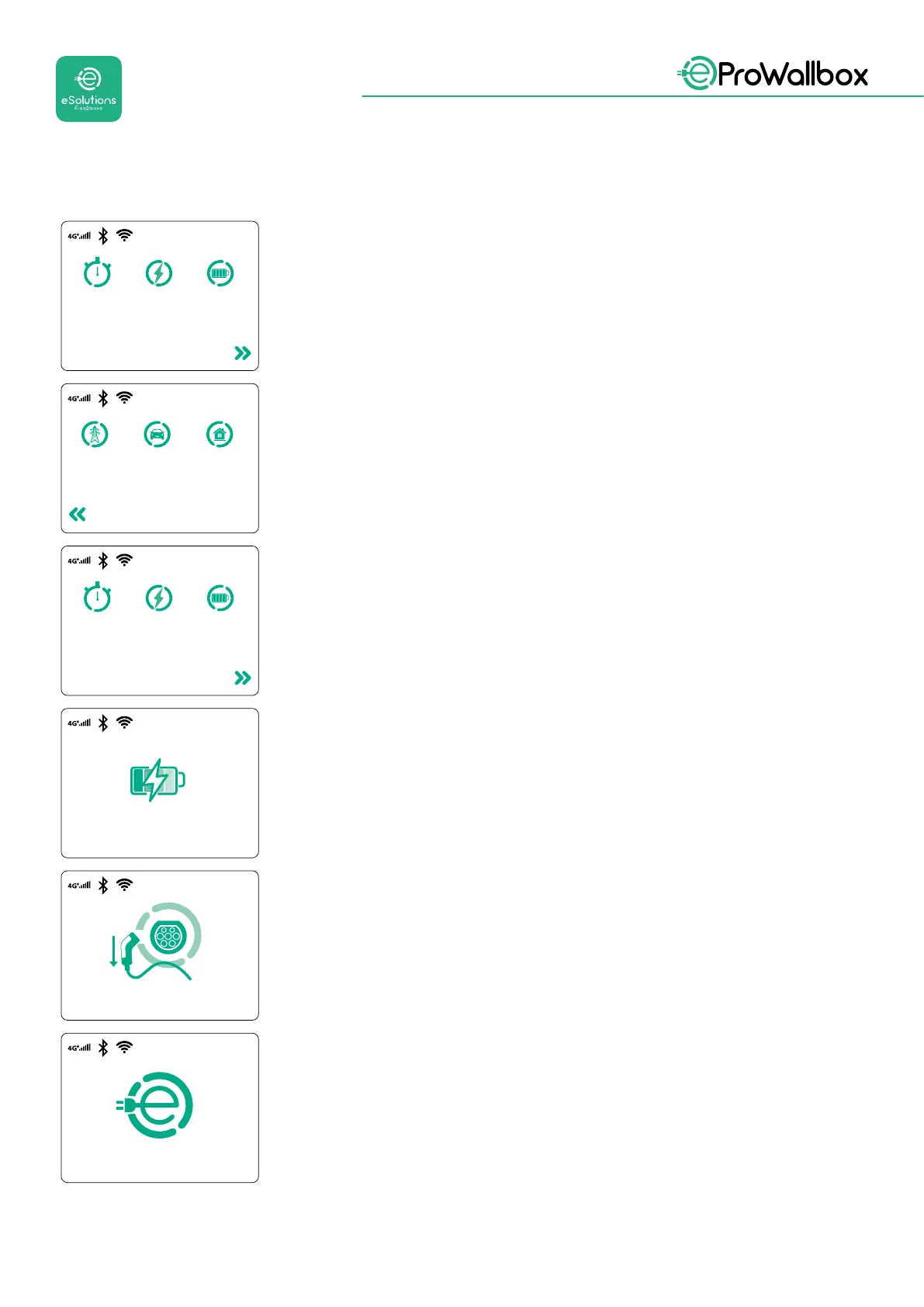

This screen displays the DPM information of the ongoing session:
• GRID POWER: contractual power value
• CAR POWER: power absorbed by the vehicle
• HOME POWER: power absorbed by domestic loads
The charging process has been interrupted.
This screen indicates that the charging process is complete, the
wallbox will soon enter standby mode.
This screen displays the w of the ongoing session:
• TIME: Duration of the session
• ENERGY: Energy absorbed by the vehicle
• POWER: Current charging power
If the DPM function is enabled the arrows on the bottom right will
be present.
This screen will be shown when the charging session is suspended
by the DPM or the EV. The charging session may resume.
This screen instructs the operator to remove the cable when the
charging process is over.
