36
Chapter 2
Robot Assemb
ly
www.freeno
ve.com
█

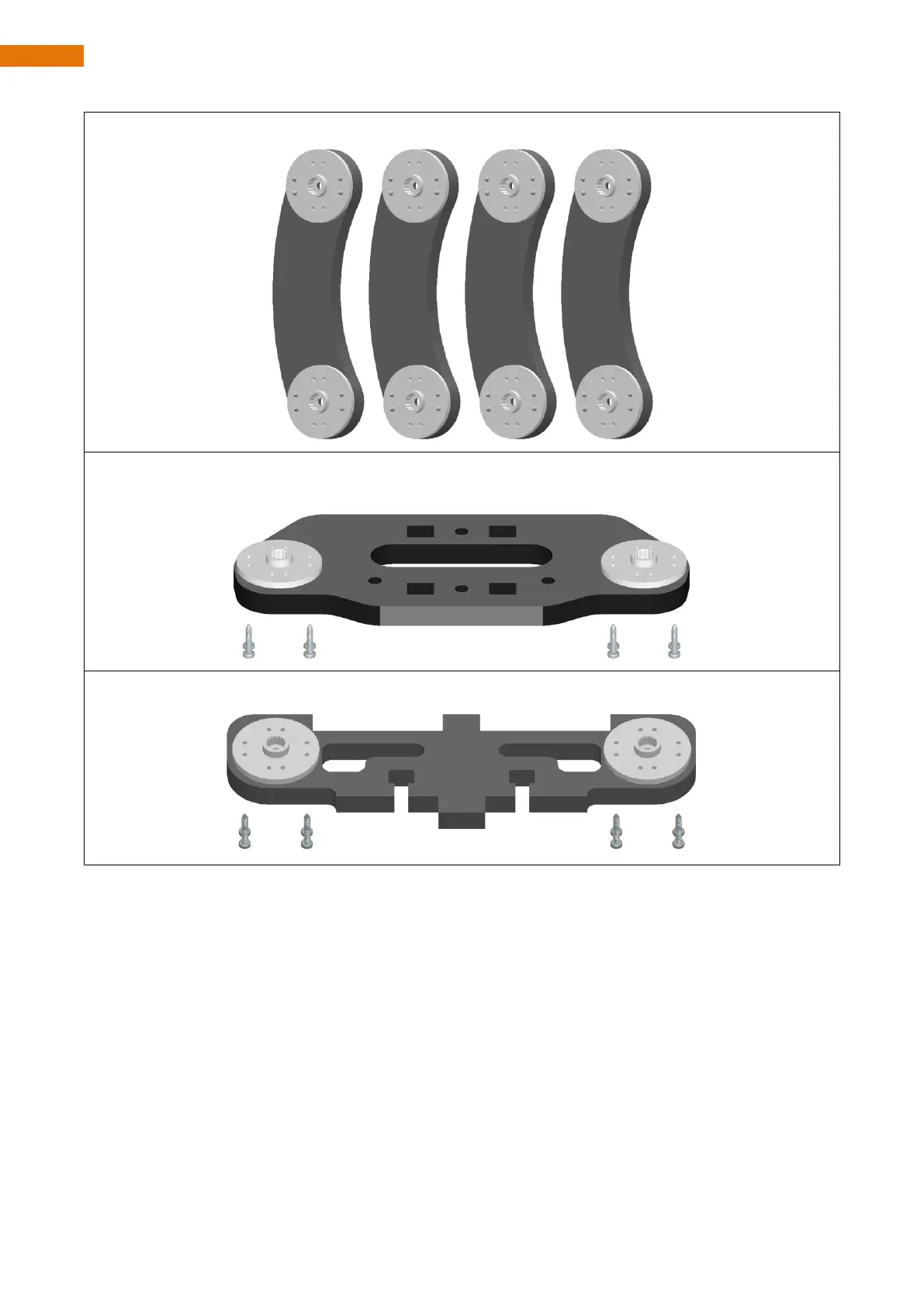

3.
After assembly, y
ou will ge
t the followin
g four parts.
4.
Mount two disc se
rvo arms
with eight M1
.4*8 screw
s to the h
ead board.
5.
Mount two disc se
rvo arms
with ei
ght M1.4*8 screw
s to the
rear board.
37
