Chapter 2 Robot Assembly
█ www.freenove.com
Step 6 Assembly of Head and Wire

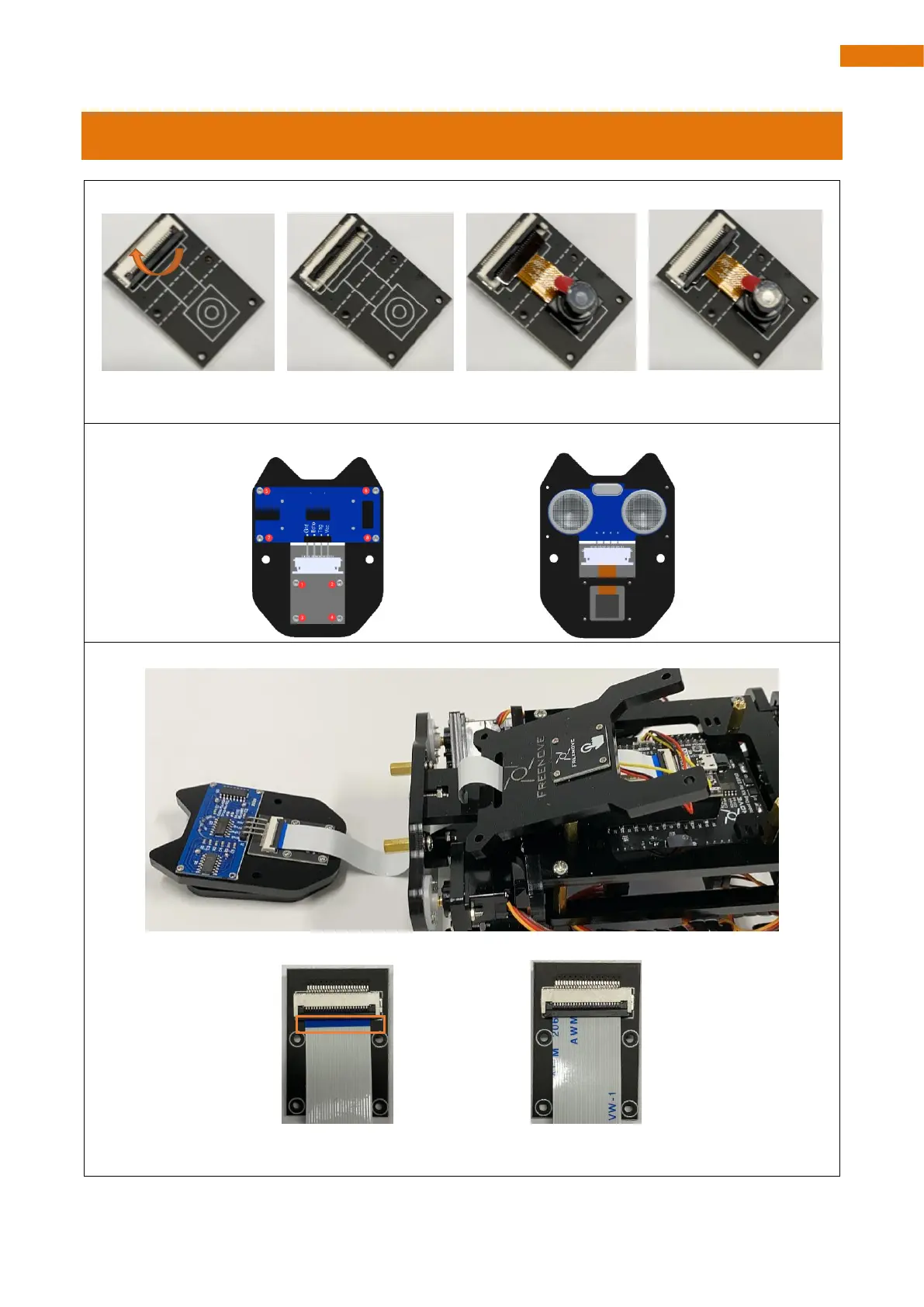

1. Connect the camera to its extension board.
Gently pull up the lock with your fingernail or a plastic stick.
Remember to keep power OFF when assembling the head to avoid damaging the camera.
2. Mount the camera and ultrasonic modules to the head acrylic part.
3.
Plug one end of the camera cable into the camera extension board. Pay attention to blue side.
√ ×
