Chapter 2 Robot Assembly
█ www.freenove.com
Chapter 2 Robot Assembly
Please follow the tutorial to assemble the robot; otherwise, it may not function well.

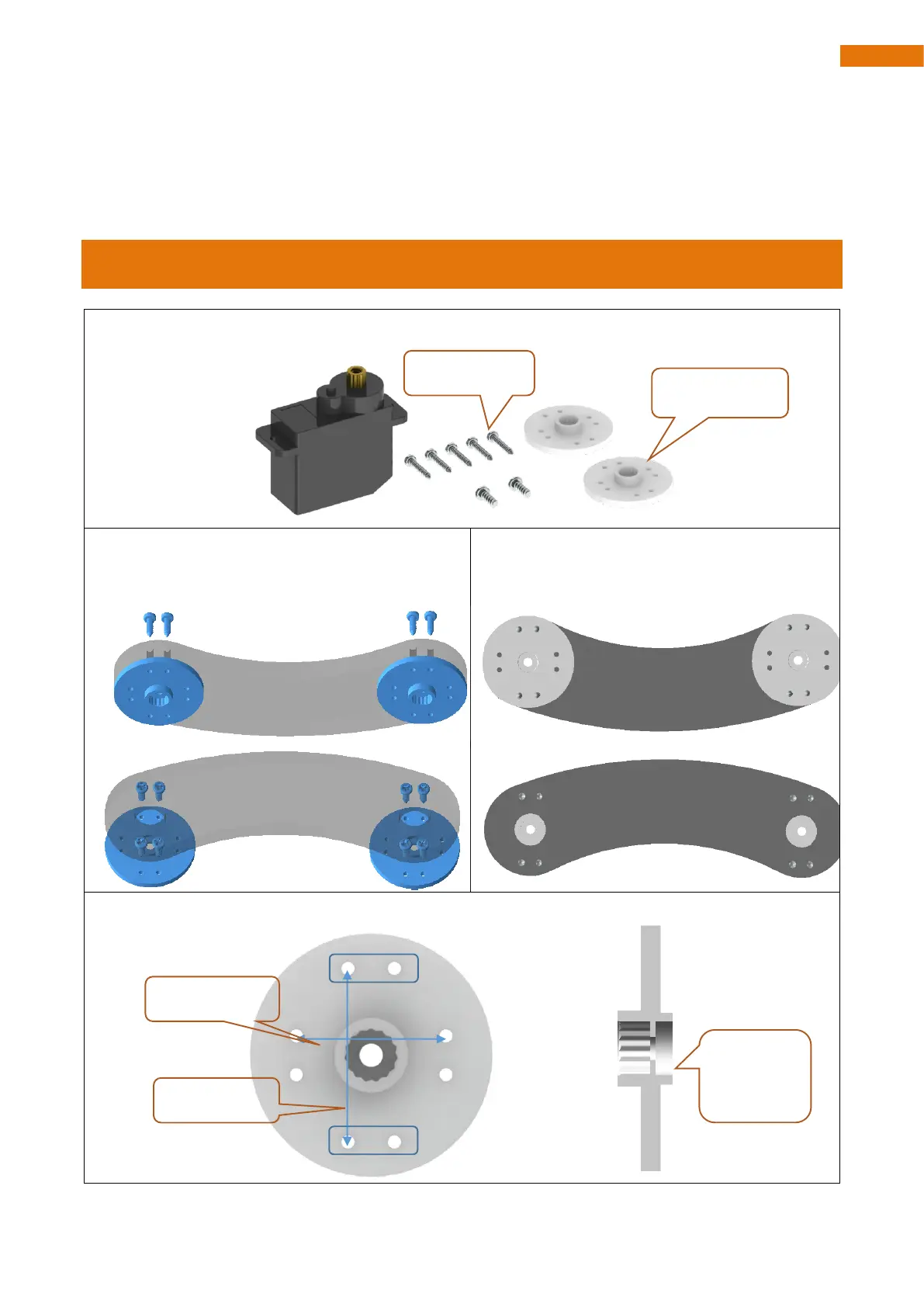

Step 1 Assembly of Disc Servo Arms
1. Take out 8 disc servo arms and 32 M1.4*8 screws from servo packages.
2. Mount two disc servo arms to the acrylic part with
eight M1.4*8 screws.
Below is a perspective view of the front and back.
The front and back after assembly are as shown
below.
Note: The distance between the two sets of holes is different. Please use the ones with longer distance.
Disc servo arm
Attach this
side to the
acrylic part.
Long distance
Short distance
M1.4*8screws
