Chapter 2 Robot Assembly
www.freenove.com █
Step 3 Assembly of Legs
1. Mount four servos to four shanks with M2*10 screws and M2 nuts.
Left shank
Right shank
2. Mount two servos to the below acrylic parts with M2*10 screws and M2 nuts.

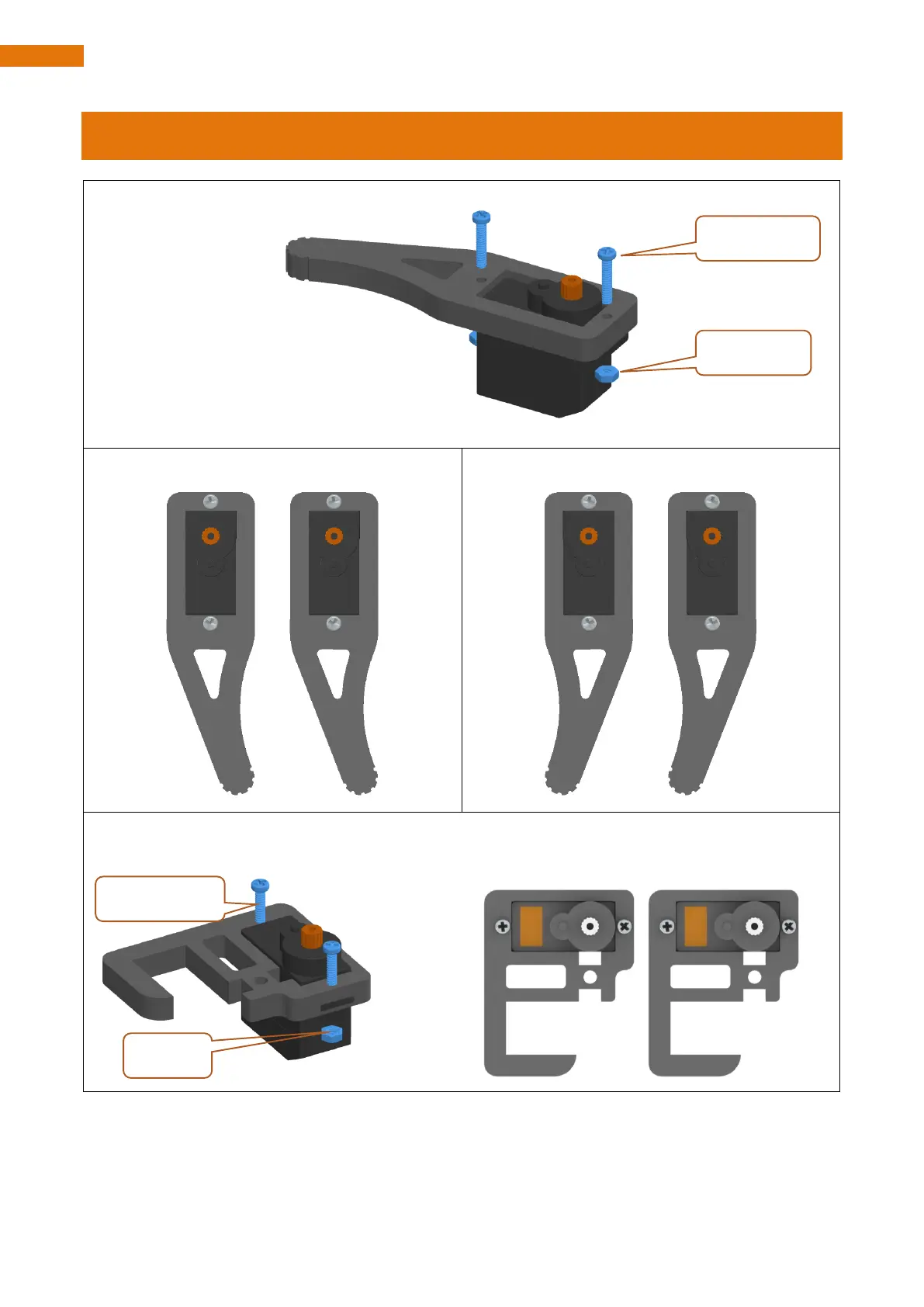

Assembly diagram
After assembly
M2*10 screw
M2 nut
M2x10 screw
M2 nut
