Friedrich Breeze Series User Manual

41 PB
SPECIFICATIONS
Capacities and Selection Data
The correction factor of height between indoor unit and outdoor unit
Height difference
16 ft 33 ft 108 ft
Factor
0.01 0.02 0.025
To ensure correct unit selection, consider the farthest indoor unit.
NOTE:
1.
Above data is assuming that the height difference between indoor unit and outdoor unit is 0m.
2.
Be sure to minimize length of connection pipes to optimize performance. If the outdoor unit is installed higher
or lower than the indoor unit, it is necessary to apply height correction factor additionally to length correction
factor to calculate cooling/heating.
If outdoor unit is higher, correction should be applied to cooling capacity, if outdoor unit is lower, correction
should be applied to heating capacity.
C
C
o
o
r
r
r
r
e
e
c
c
t
t
i
i
o
o
n
n
f
f
a
a
c
c
t
t
o
o
r
r
s
s
a
a
c
c
c
c
o
o
r
r
d
d
i
i
n
n
g
g
t
t
o
o
d
d
e
e
f
f
r
r
o
o
s
s
t
t
i
i
n
n
g
g
o
o
p
p
e
e
r
r
a
a
t
t
i
i
o
o
n
n

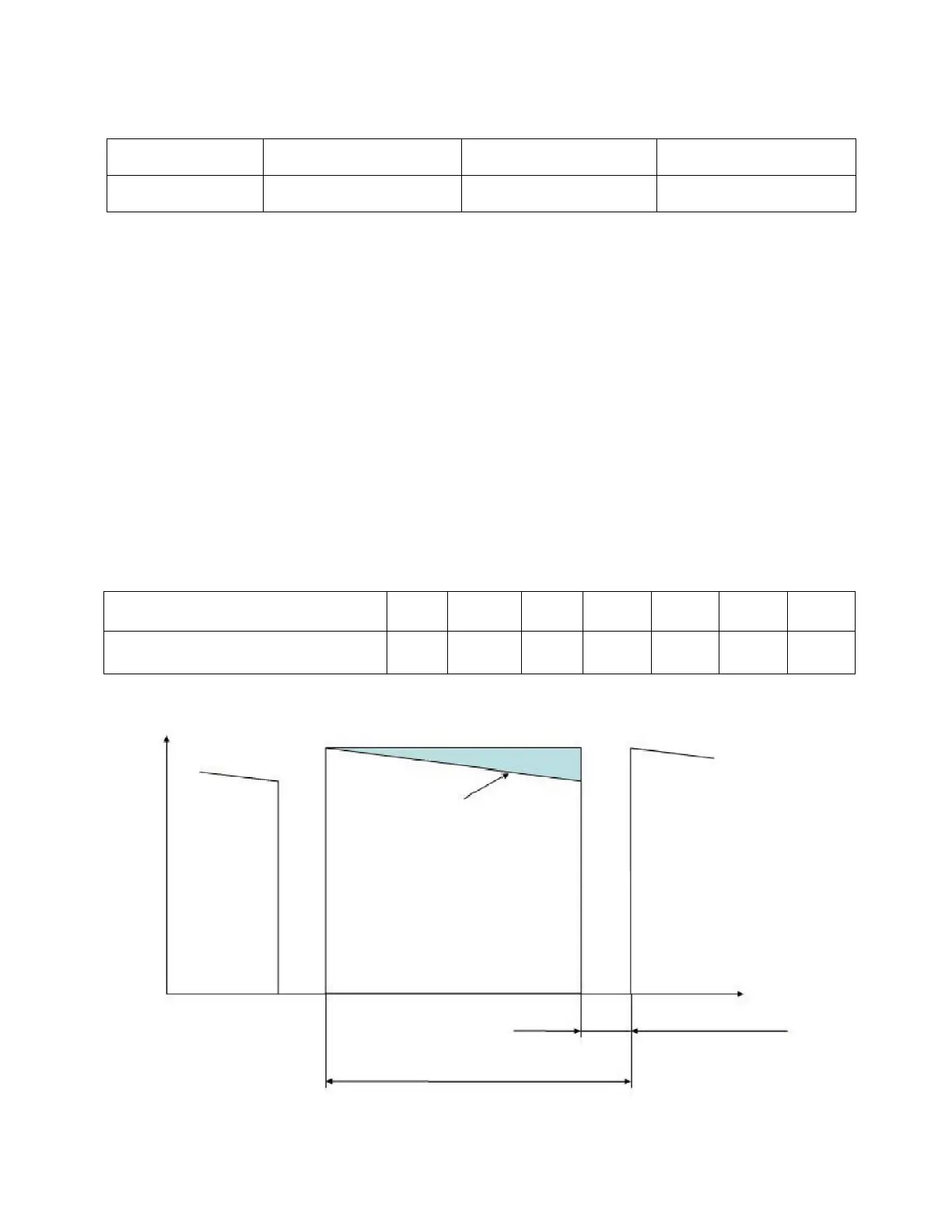

The heating capacity in the previous part, excludes the condition of defrosting operation period. In
consideration of defrosting operation, the heating capacity is corrected by the equation below.
Corrected heating capacity = Defrost correction factor × unit capacity
Correction Factor
NOTE:
The correction factor is not valid for special conditions such as snowfall or operation in a transitional period.
Heating
capacity
Reduction in capacity due
to white frost
1 cycle
Hour
Defrost max. 12mins
Outdoor
temperature [℉ DB]
5 14 23 32 44.6 50 59
Correction factor
(humidity rate 85% RH)
0.95 0.95 0.93 0.85 1.0 1.0 1.0
27

Friedrich Breeze Series Specifications

General

Brand	Friedrich
Model	Breeze Series
Category	Heat Pump
Language	English
