Section 2 Installation Information
2-8
Washer and Dryer 15” Drawer Pedestal
Installation
The Affinity Series washers and dryers use the same
pedestal.
Tools needed:
Level
9/16” open end wrench
#2 Phillips screwdriver
Washer/Dryer Installation Kit

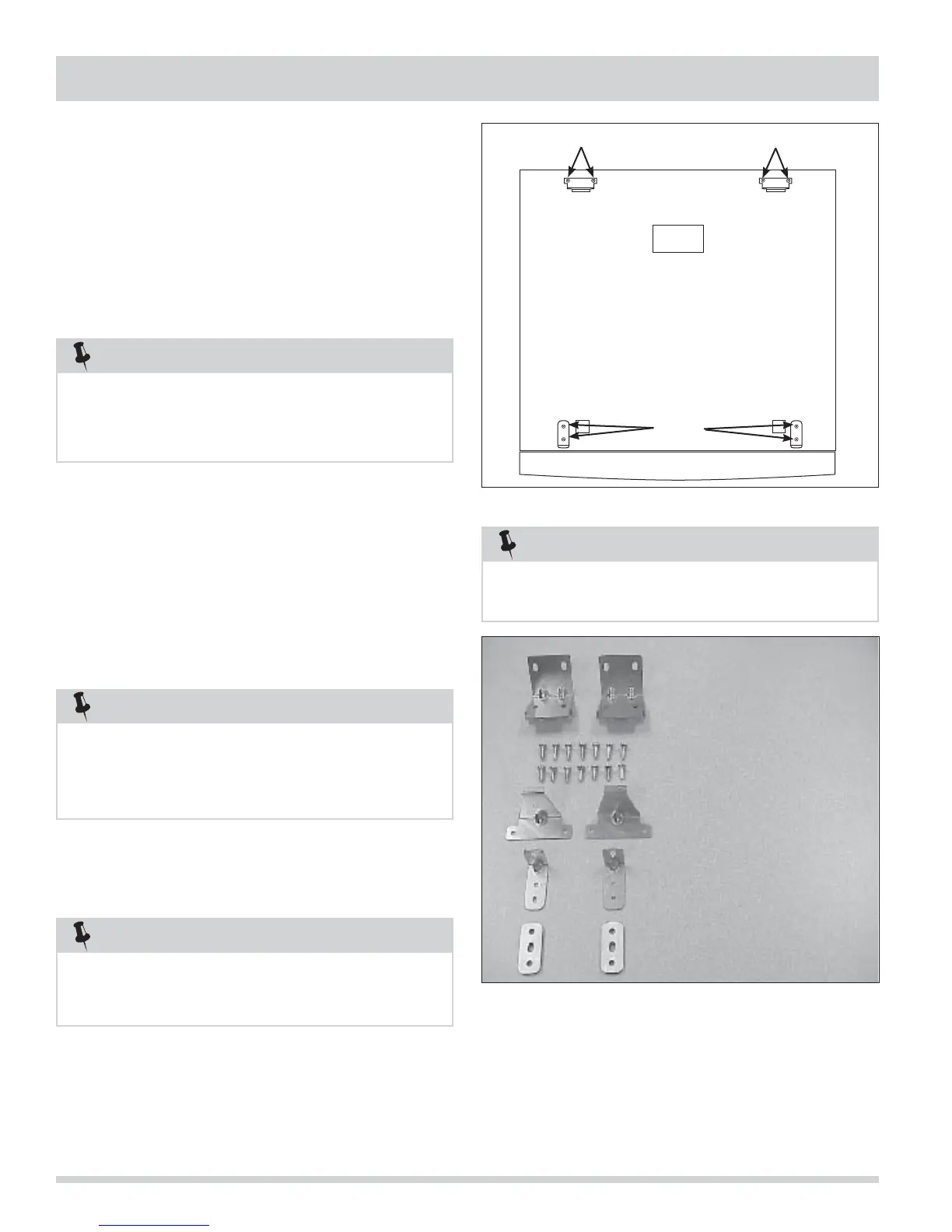

Pedestal Installation
1. Attach the rear brackets to the pedestal with
(4)- #10 screws (2 per bracket). (See Figure 2-9)
2. Attach the front brackets and spacer plates to the
pedestal with (4)- #10 screws (2 per bracket).
3. Tilting the dryer back slightly to engage the slots in
the rear of the dryer with the tabs of the rear
brackets on the pedestal.
4. Using two or more people, carefully lift the washer
onto the pedestal, tilting the washer back slightly to
align the holes in the rear of the washer with the
slots of the rear brackets on the pedestals.
Foam
Rear Bracket Rear Bracket
Screws Screws
Screws
Front Bracket Front Bracket
Pedestal Top
Do not remove the foam in the middle of the pedestal.
It reduces vibration noise.
NOTE
This kit is intended to be installed by persons having
electrical and mechanical training and a level of
knowledge considered acceptable in the appliance
repair trade.
NOTE
Figure 2-9.
2 – Spacer Plates (W asher)
2 - Rear Brackets (Washer)
14 - #10 x 1/2" Screws
(Washer / Dryer)
2-FrontBrackets
(Washer / Dryer)
2 - Rear Brackets (Dryer)
If washer was previously installed, disconnect power
cord, remove the inlet hoses from the water faucets
and tape the drain hose to the top of the washer to
eliminate excess water on the floor.
NOTE
If the mounting holes do not align, make sure washer
leveling legs are adjusted fully into washing machine.
Turn each leg tight to the base.
NOTE
Figure 2-10. Kit Components
