Frigidaire Affinity 6000 Series - Drain Sump

Section 4 Component Teardown
4-19
Drain Sump
1. Disconnect the washer from the electrical supply
and remove the front panel.
2. Loosen the clamp at the tub. (See Figure 4-79)
3. Release the clamp at the pump. (See Figure 4-80)
4. Slide the hose off the tub and pump to remove the
sump.
Drain Pump Outlet Hose Removal
1. Disconnect the washer from the electrical supply
and remove the top and front panel.
2. Release the clamp and slide the hose off of the
drain pump. (See Figure 4-81)
3. Release the clamp and slide the hose off the drain
hose coupler. (See Figure 4-82)
4. Release the hose from its guides and pull the hose
out.

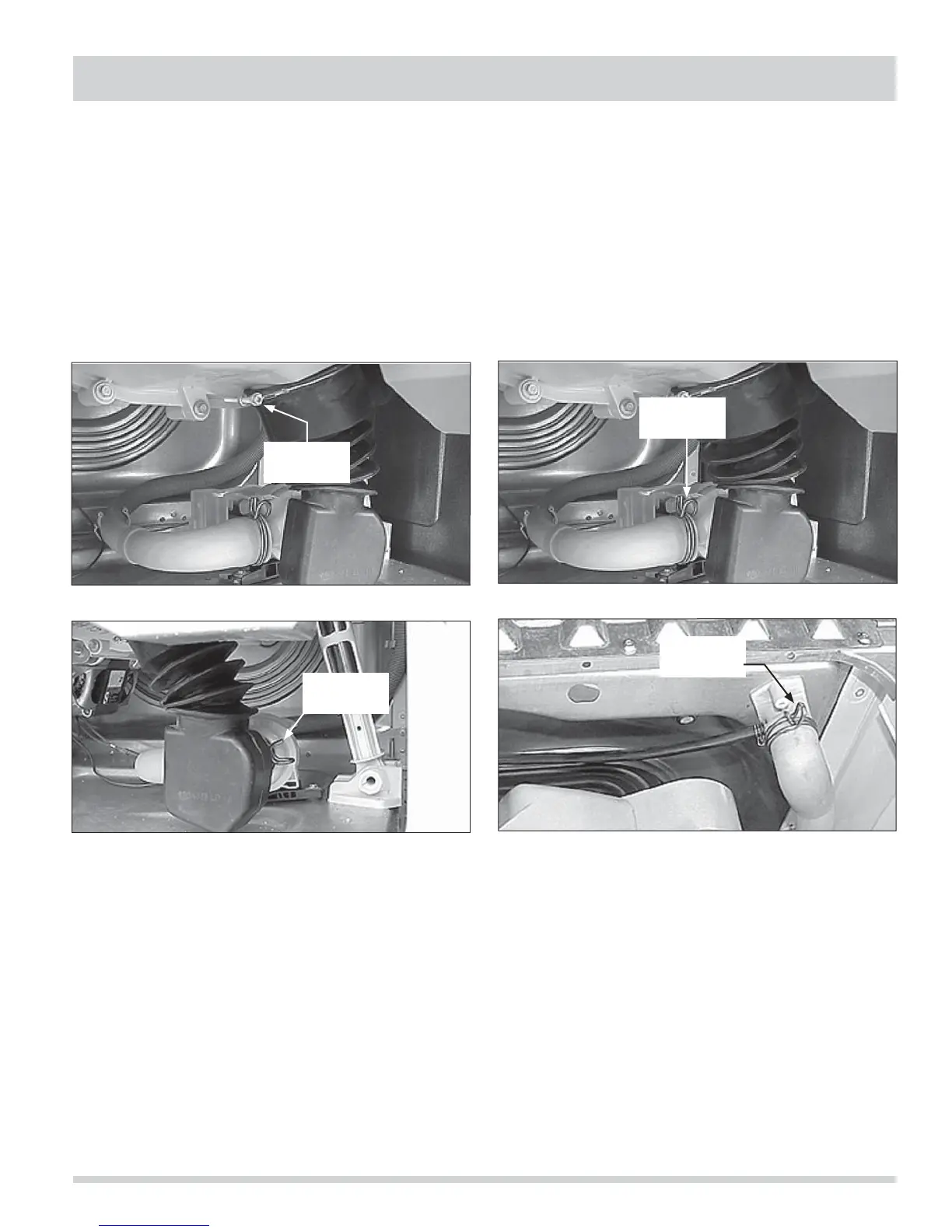

Figure 4-79.
Figure 4-80.
Figure 4-81.
Figure 4-82.
Remove
Hose Clamp
Remove
Hose Clamp
Remove
Hose Clamp
Remove
Hose Clamp
