Frigidaire Affinity 6000 Series - Console Mounting Bracket; Bellows

Section 4 Component Teardown
4-10

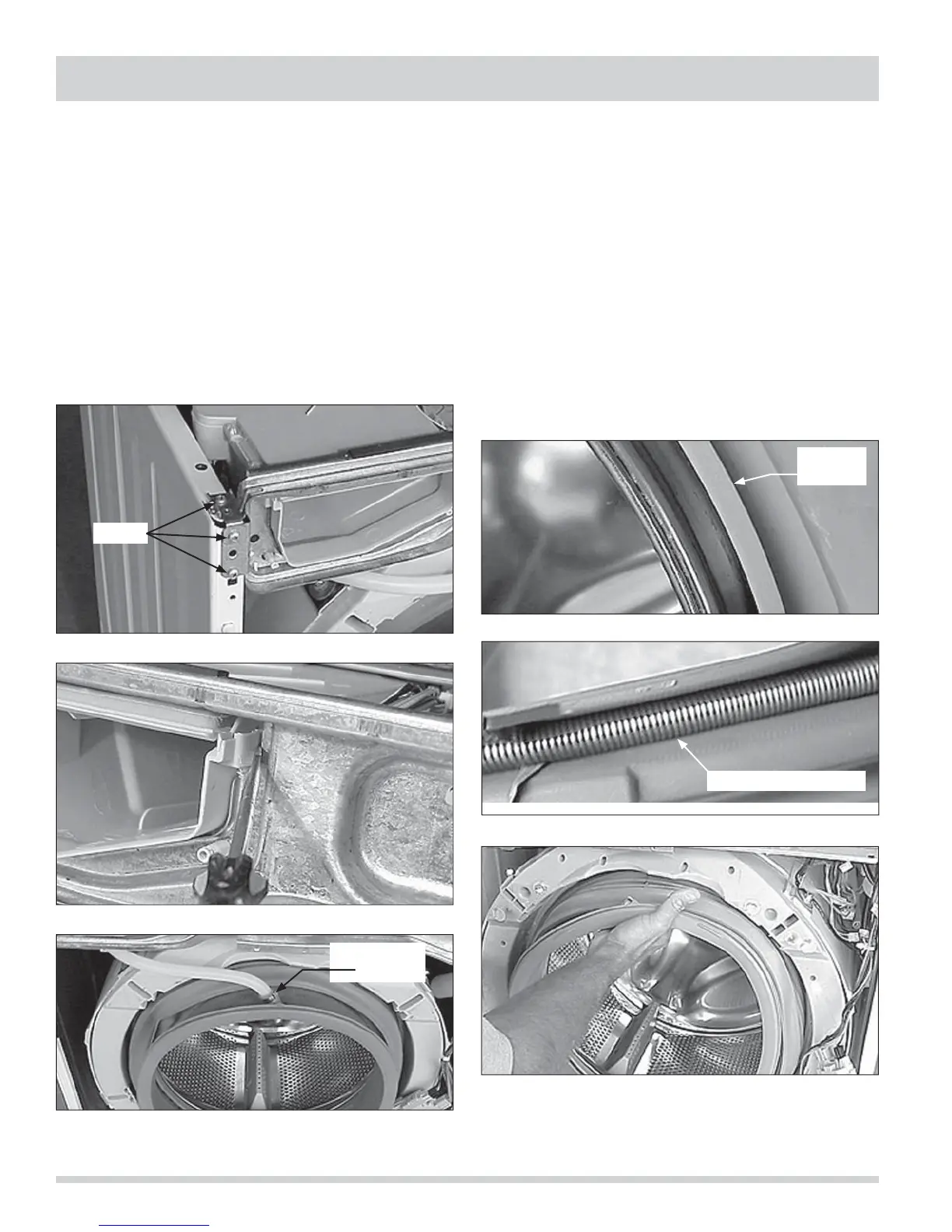

Console Mounting Bracket Removal
1. Disconnect the washer from the electrical supply
remove the console and front panel.
2. Release wiring harness from the back of brace and
remove transformer and heater control board
mounting bracket. Remove the (6) screws, one at
the top and two in the front on each side, holding
the brace to the side panels. (See Figure 4-35)
3. Release the (2) tabs on the dispenser drawer
housing, one on each side of the housing and pull
the bracket forward. (See Figure 4-36)
Bellows Removal
1. Disconnect the washer from the electrical supply
remove the console and front panel.
2. Release the hose clamp and remove the advanced
rinsing technology (A.R.T.) hose from the top of the
bellows. (See Figure 4-37)
3. On select models, remove light socket.
4. A groove in the rear of the bellows is placed over
the lip of the outer tub and held in place by a spring
loop. (See Figure 4-38 & 4-39)
5. Remove the bellows by placing your hand under the
bellows at the top of the opening and lift up while
pulling out. (See Figure 4-40)
Figure 4-35.
Figure 4-38.
Figure 4-39.
Figure 4-40.
Figure 4-36.
Figure 4-37.
Screws
Remove Hose
Clamp
Lip Of
Outer Tub
Spring Loop Behind Lip
