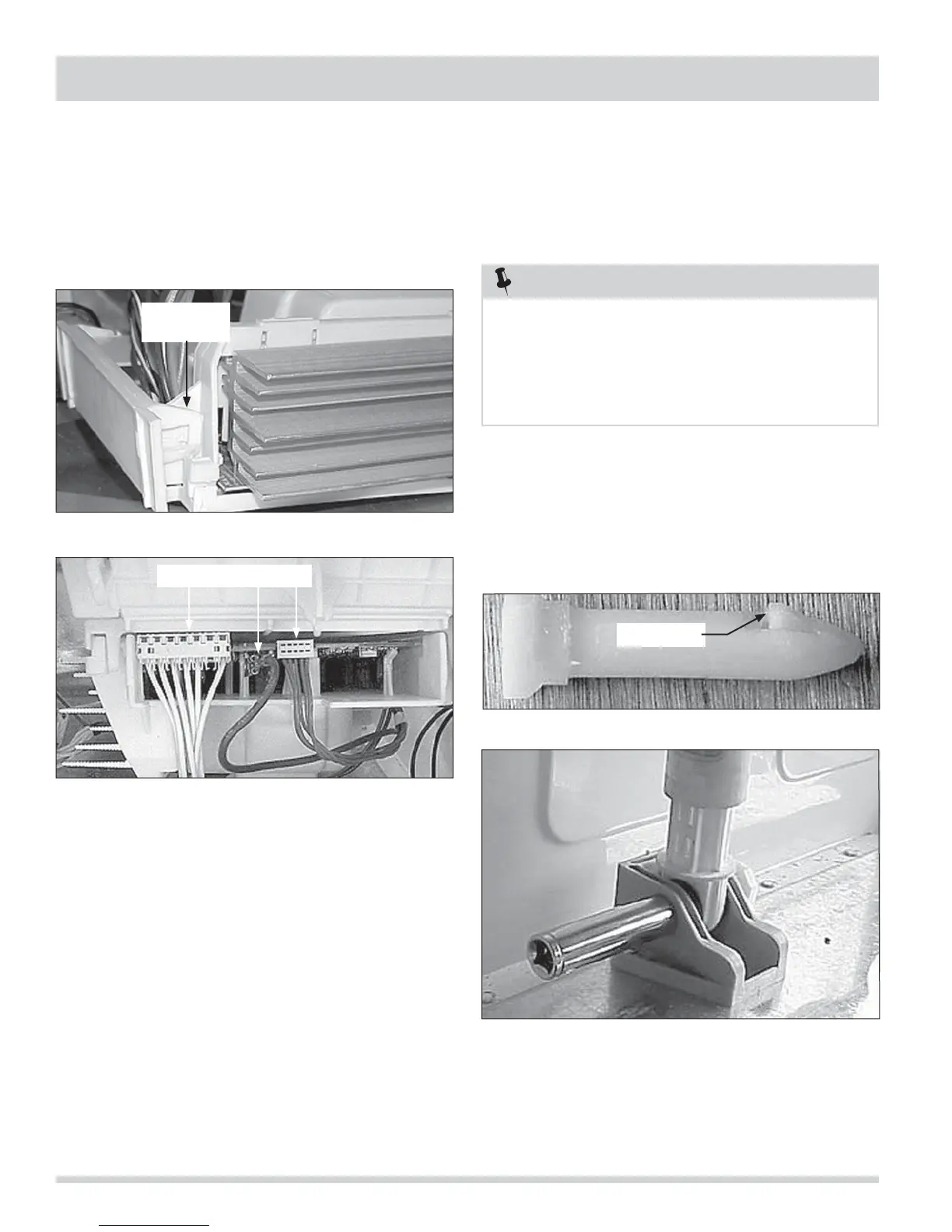

Section 4 Component Teardown
4-22
Speed Control Board Assembly Removal
(continued)
5. Release the latch on each end of the speed control
housing and raise the top flap. (See Figure 4-92)
6. Disconnect the (2) plugs & the ground wire and
remove the speed control assembly from the
washer. (See Figure 4-93)
Figure 4-94.
Right Hand Air Shock Absorber Removal
1. Disconnect the washer from electrical supply.
2. Remove the front panel and the rear access panel.
3. Remove air shock securement pins by depressing
locking tab while pulling pin to remove.
(See Figure 4-94)
4. Use pliers to grasp head of pin and pull to remove.
As the pin is removed the socket will drop free.
5. When replacing the air shock, make sure to position
it with the bell end facing downward.
6. Lubricate the securement pins with Sil-Glide®
before installing.
Figure 4-95.
This procedure is much easier if a deep 1/2”, 6 point
socket (or 13 millimeter, 6 point) is used to compress
the locking tab of the plastic pin. Push the socket onto
the tapered end of the pin as far as it will go to
compress the locking tab.
NOTE
Figure 4-92.
Retaining
Latch
Figure 4-93.
Electrical Connections
Locking Tab
To Next Page
