Section 4 Component Teardown
4-18

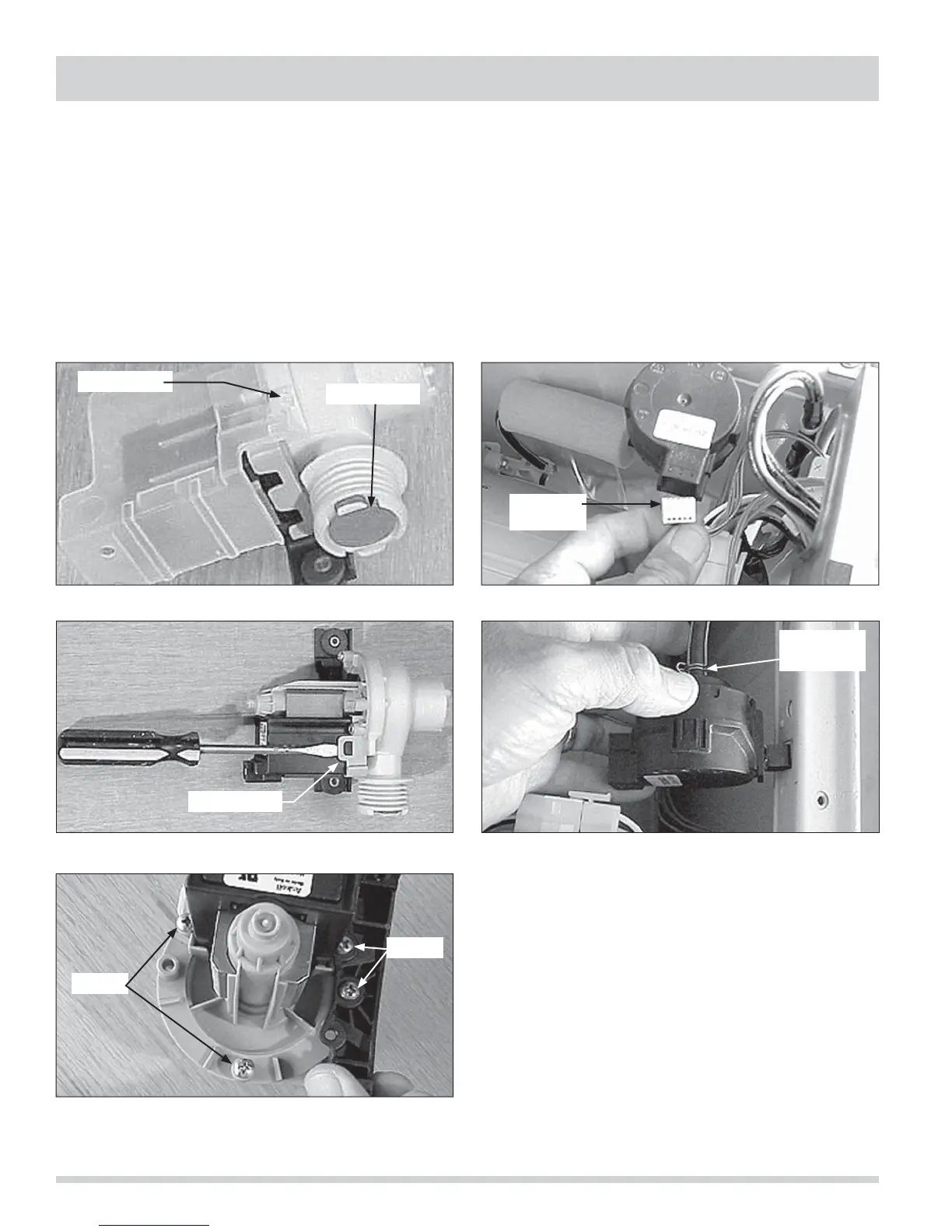

Drain Pump Disassembly
1. The drain pump check valve is located in the outlet
of the pump. (See Figure 4-74)
2. Remove the shield by releasing the tab and pulling
back on the shield. (See Figure 4-74)
3. Release the tab on each side of the motor and pull
back to remove the armature. (See Figure 4-75)
4. Remove (4) screws to release the housing from the
pump. (See Figure 4-76)
Electric Water Level Sensor Removal
1. Disconnect the washer from the electrical supply
and remove the top panel.
2. Unplug the wire harness from the sensor.
(See Figure 4-77)
3. Turn the sensor one quarter turn to release it from
the side panel and pull out on the sensor.
(See Figure 4-78)
4. Disconnect the pressure hose from the sensor.
(See Figure 4-78)
Figure 4-74.
Figure 4-75.
Figure 4-76.
Figure 4-77.
Figure 4-78.
Check Valve
Shield Tab
Release Tab
Screws
Screws
Electrical
Connection
Remove
Hose Clamp
