Section 4 Component Teardown
4-20
Drain Hose Coupler Removal
1. Disconnect the washer from the electrical supply
and remove the top panel.
2. Disconnect the (2) drain hoses and siphon break
hose.
3. Remove screw holding coupler to the rear panel and
pull coupler out the back. (See Figure 4-83)
Rear Access Panel Removal
1. Disconnect the washer from the electrical supply.
2. Remove the (6) screws holding the rear access
panel to the washer’s rear panel and lift the access
panel off. (See Figure 4-84)
Drive Belt Removal
The drive belt (6 rib flat Poly-V) is used to transmit
power from the motor pulley to the tub. The belt is
constructed of a material that stretches, which makes
belt tension adjustments unnecessary.
Removing or replace the drive belt:
1. Disconnect the washer from the electrical supply
and remove the rear access panel.
2. Remove the belt by turning tub drive pulley and
rolling belt off pulley. The belt is elastic and is
designed to “give” enough to remove and install in
this manner. (See Figure 4-85)
Large Pulley Removal
To remove the large pulley:
1. Disconnect the washer from the electrical supply.
2. Remove the rear access panel and drive belt.
3. Using a #6 mm allen wrench remove bolt in the
center of pulley by holding the pulley and turning
the bolt counter clockwise. (See Figure 4-86)
4. Work the pulley back and forth to remove it from
the shaft.

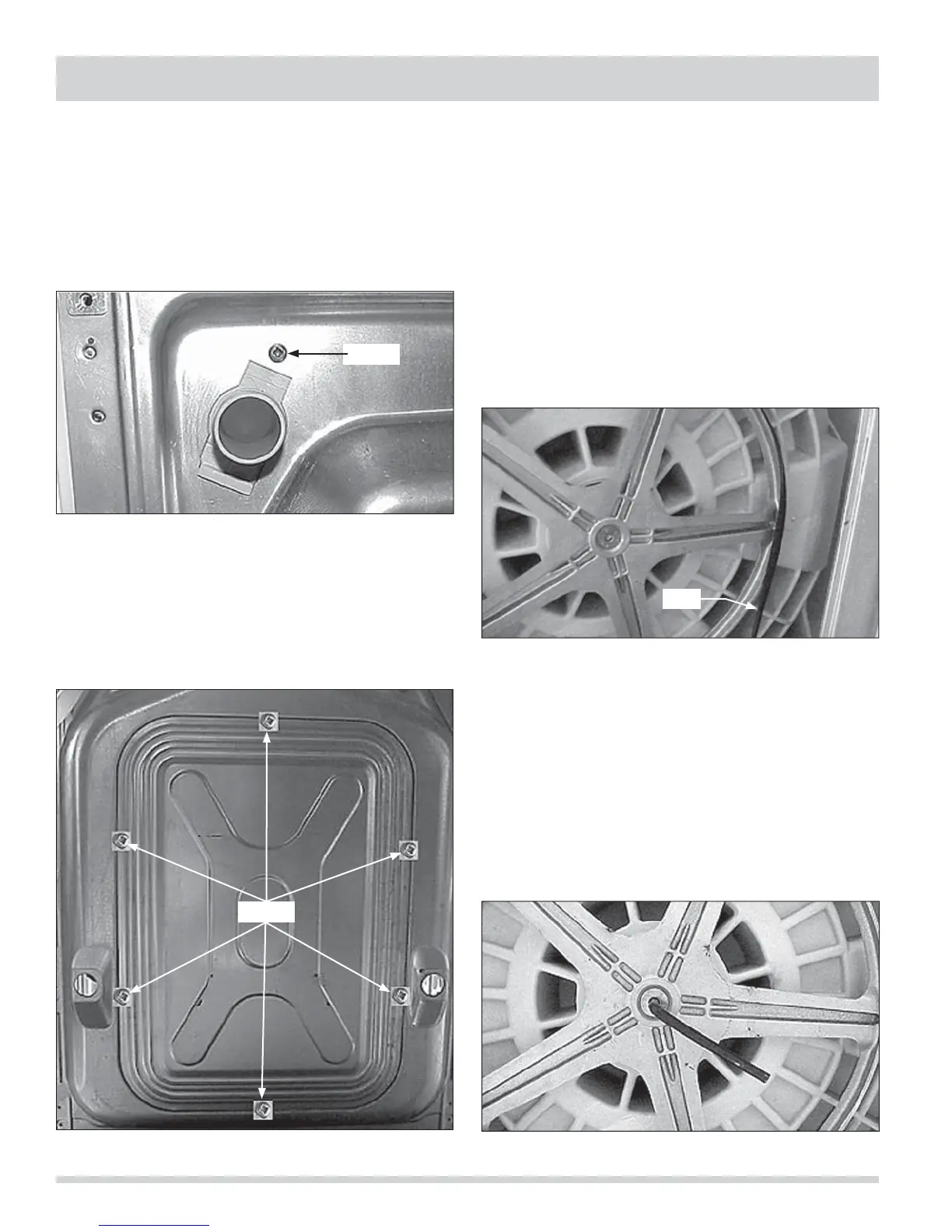

Figure 4-83.
Figure 4-85.
Figure 4-86.
Screw
Figure 4-84.
Screws
Belt
To Next Page
