Section 4 Component Teardown
4-21
Drive Motor Removal
1. Disconnect the washer from the electrical supply
and remove the rear access panel and the belt.
2. Disconnect the electrical plug and the ground wire
from the motor. (See Figure 4-87)
3. Using a 5/16” socket remove the (4) bolts, (2) in
the front and (2) in the rear, that hold the motor to
the outer tub. (See Figure 4-88 & 4-89)
4. Slide motor forward while supporting to remove.
5. Reverse procedure to reinstall, making sure the belt
tracks in the center of the large pulley. Adjust by
moving belt on motor pulley if required.
Speed Control Board Assembly Removal
1. Disconnect the washer from the electrical supply
and remove the front panel and rear access panel.
2. Disconnect the terminal plug from the lower front.
(See Figure 4-90)
3. Disconnect the wire harness and remove the screw
securing the tab on the side of the control board to
the base. Lift the side of the housing up, slide the
assembly to the rear to disengage the front tab and
lift the assembly away from the washer base.
(See Figure 4-91)
4. From the front of the washer tip the bottom of the
assembly toward the motor and slide the assembly
out between the shock absorber and the motor.
(continued next page)

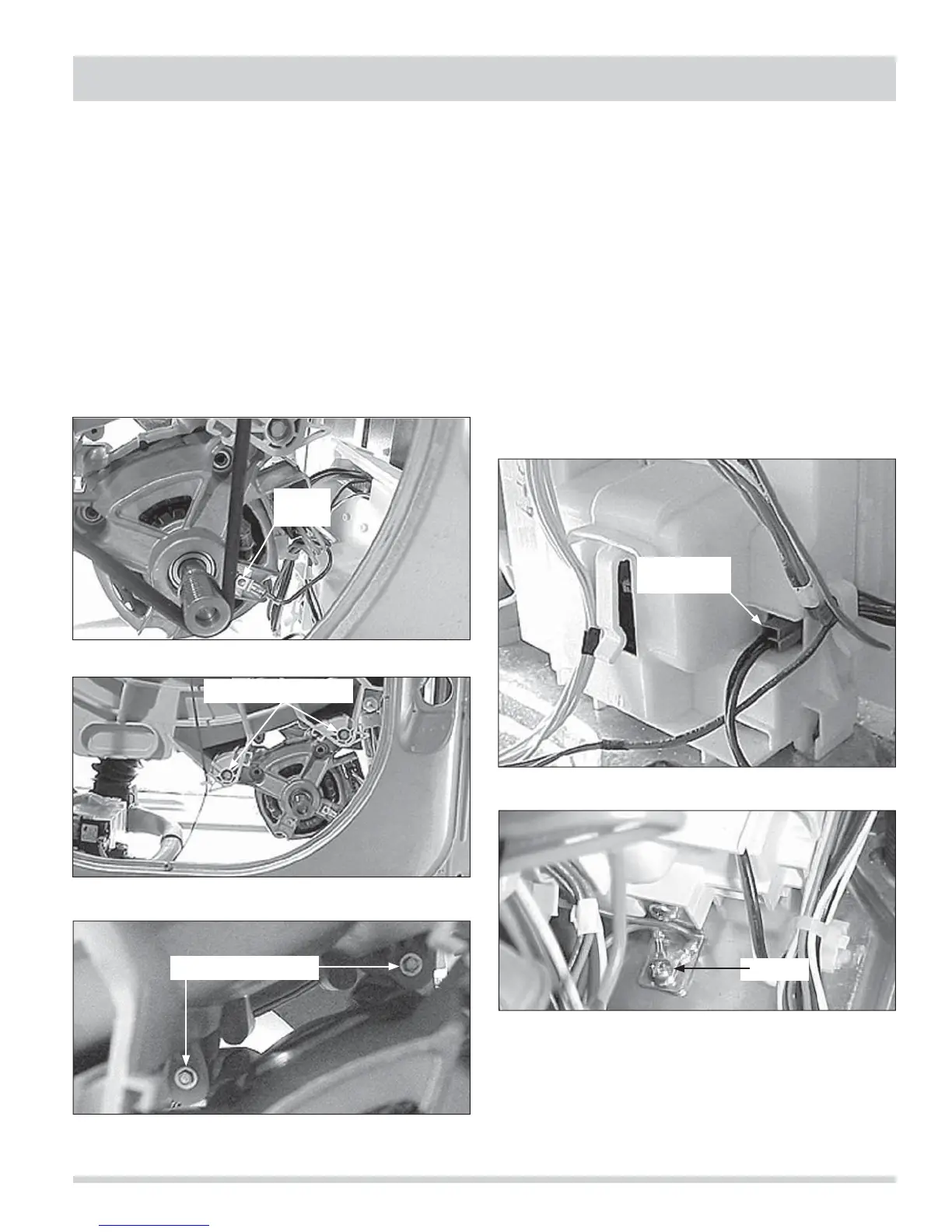

Figure 4-87.
Figure 4-88.
Figure 4-89.
Figure 4-90.
Figure 4-91.
Ground
Wire
Electrical
Connections
Motor Mounting Bolts
Motor Mounting Bolts
Screw
To Next Page
