Section 4 Component Teardown
4-4

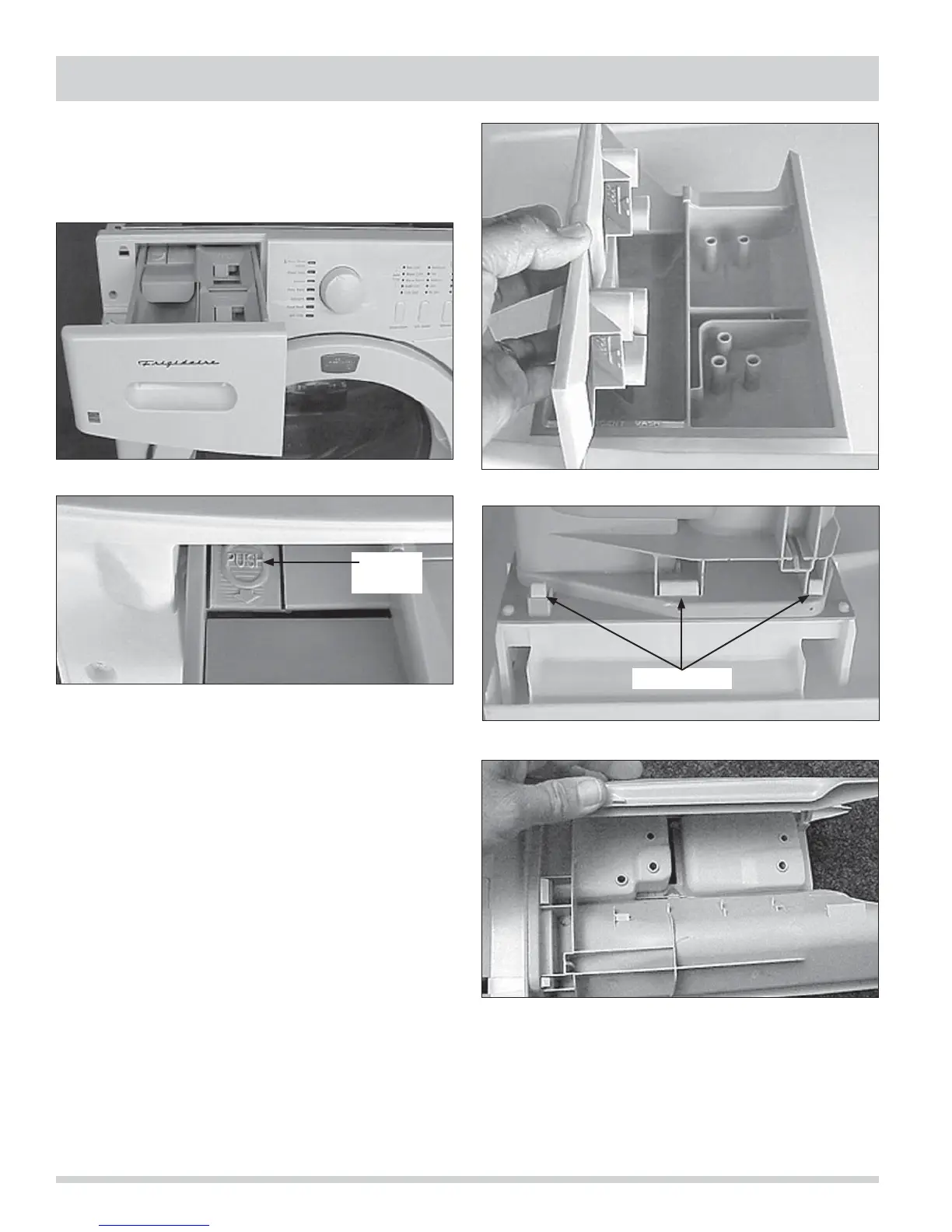

Detergent Drawer Removal
1. Pull the drawer out until it hits the stop.
2. Push down on the release tab and pull the drawer
out. (See Figure 4-10 & 4-11))
Detergent Drawer Disassembly
1. Remove the drawer from the washer.
2. The detergent, liquid bleach and fabric softener
inserts lifts off. When reinstalling, be sure to seat
them properly. (See Figure 4-12)
3. To remove the drawer front, release the three tabs
and pull the drawer front away from the body.
(See Figure 4-13)
4. To remove the conveyer, release the conveyer from
the tabs and lift it off. (See Figure 4-14)
Figure 4-10.
Figure 4-11.
Figure 4-12.
Figure 4-13.
Figure 4-14.
Push To
Remove
Release Tabs
