Frigidaire Affinity 6000 Series - Drain Pump

Section 4 Component Teardown
4-17

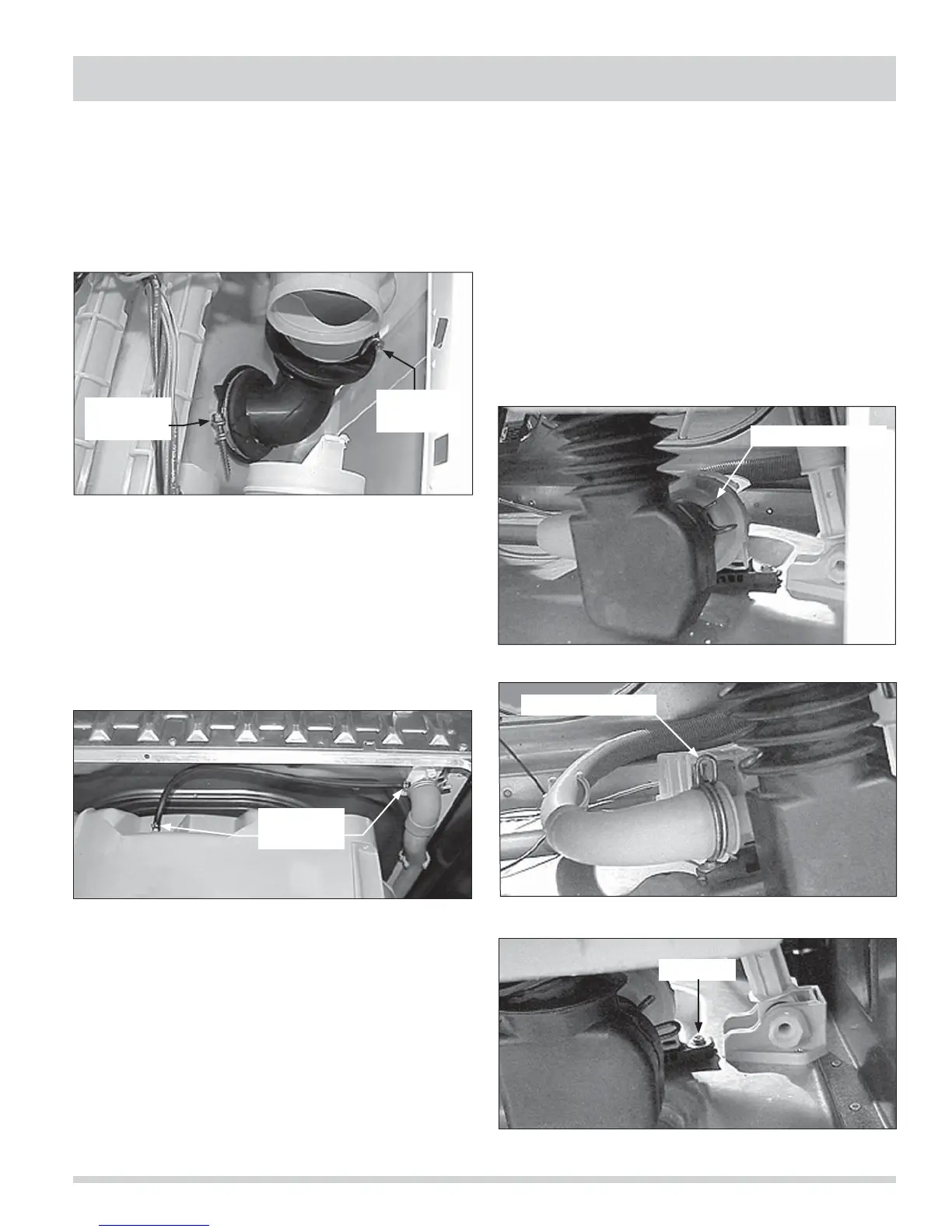

Detergent Dispenser Outlet Hose Removal
1. Disconnect the washer from the electrical supply
and remove the top panel.
2. Release the overflow/vent tube and slide it back.
3. Loosen the (2) clamps, one on each end, and slide
the hose off. (See Figure 4-69)
Siphon Break Hose Removal
1. Disconnect the washer from the electrical supply
and remove the top panel.
2. Release the (2) clamps, one on each end, and slide
the hose off. (See Figure 4-70)
Drain Pump Removal
1. Disconnect the washer from the electrical supply
and remove the front panel.
2. Disconnect the inlet sump from the pump.
(See Figure 4-71)
3. Disconnect the outlet hose from the pump.
(See Figure 4-72)
4. Remove the (2) screws, one on each side, holding
the pump housing to the washer base.
(See Figure 4-73)
5. Unplug the wires from the pump motor and lift the
pump assembly out.
Figure 4-72.
Figure 4-73.
Figure 4-71.
Remove Hose Clamp
Remove Hose Clamp
Screw
Figure 4-69.
Remove
Hose Clamp
Remove
Hose Clamp
Figure 4-70.
Remove
Hose Clamp
