Frigidaire Affinity 6000 Series - Tub Assembly

Section 4 Component Teardown
4-25

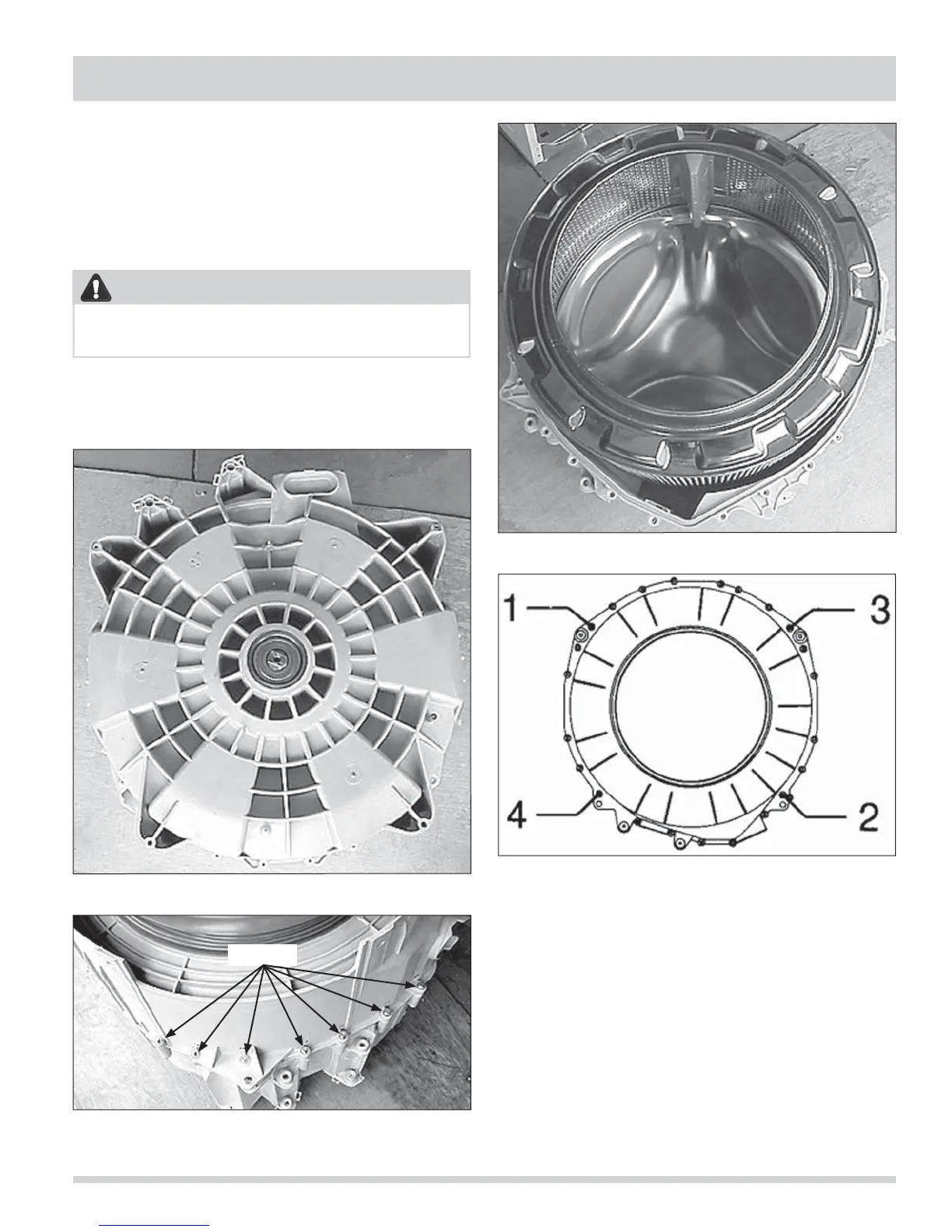

Tub Assembly Removal (continued)
11. Lift the cabinet off the tub. (See Figure 4-102)
12. Turn the tub over and remove the (23) screws
holding the two halves of the tub together.
(See Figure 4-103)
13. Lift off the front half of the tub. (See Figure 4-104)
14. Reverse procedure to reassemble using illustration
below to show outer tub screw tightening sequence.
(See Figure 4-105) (continued next page)
Figure 4-104.
Figure 4-102.
Use caution in handling the spin basket. The outer
surface is very sharp!
C
A
A
U
T
T
I
O
O
N
N
Figure 4-103.
Figure 4-105.
Screws
