Section 1 Basic Information
1-5
Drum Water Height
Water fi ll height 3.5 ± .5 “
No load, start position of permanent press cycle.
(See Figure 1-2)
Water Usages
Based on 1 wash and 3 rinse fills.
Per fill............. 4.23 gallons
Per cycle......... 16.92 gallons
Motor Specifications
No load agitate wattage - Max 150
No load spin wattage - Max 550
Tub Pulley to Motor Pulley Ratio - 16 To 1

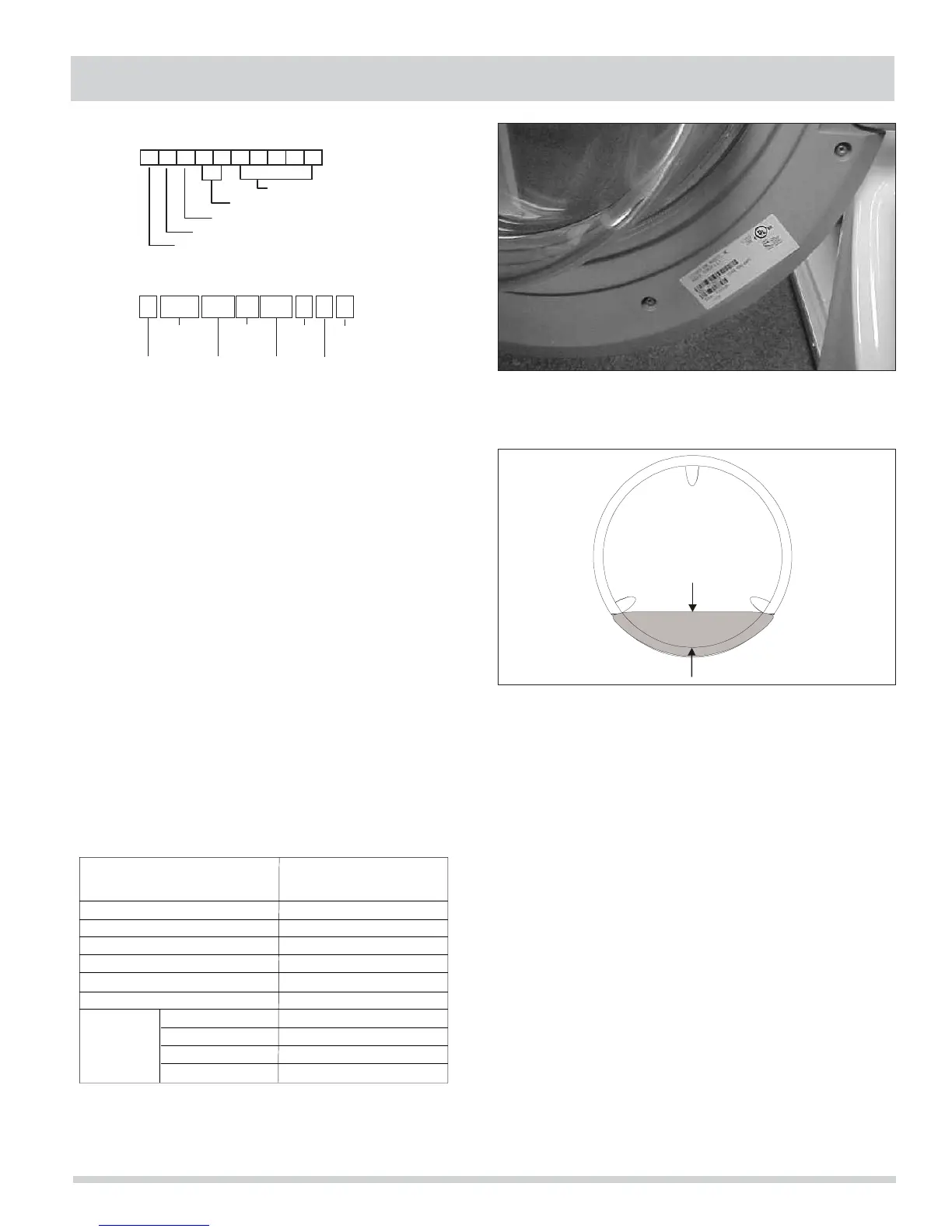

Serial Number Breakdown
4D82812345
Incremented unit number
Production Week
Last Digit of Production Year
Product Identification
Manufacturing Facility
Brand
Bundle/
Handle
Type
Capacity
Product
Style/
Level
Year
Model
Color
Feature
AW F3 5
1
0IHI
Model Number Breakdown
Resistance Ω
Electrical component @ 77 F (25 C)
Dispenser valve solenoids 800 ± 7%
Door lock solenoid 1325 ± 10%
Pump motor 12 ± 7%
NTC Thermistor dispenser 3K
NTC Thermistor heater 4.8K
Water heater 14 ± 10%
M1 TO M2 5.3 ± 7%
M2 TO M3 5.3 ± 7%
M1 TO M3 5.3 ± 7%
M4 TO M5 118 ± 7%
Motor
˚
˚
Figure 1-2. Drum Water Height
Figure 1-1. Serial Tag Location
Component Resistance Chart
Automatic Temperature Control Specifications
Auto Temp Sanitary Cycle.................... 152° ± 7° F
Auto Temp HOT/COLD setings............. 120° ± 7° F
Auto Temp WARM/WARM
and WARM /COLD settings ................. 90° ± 7° F
Auto Temp COLD/COLD settings ......... 65° ± 7° F
3.5”±1/2”
