Frigidaire Affinity 6000 Series - Jacks and Plugs

Section 3 Electronic Control
3-13

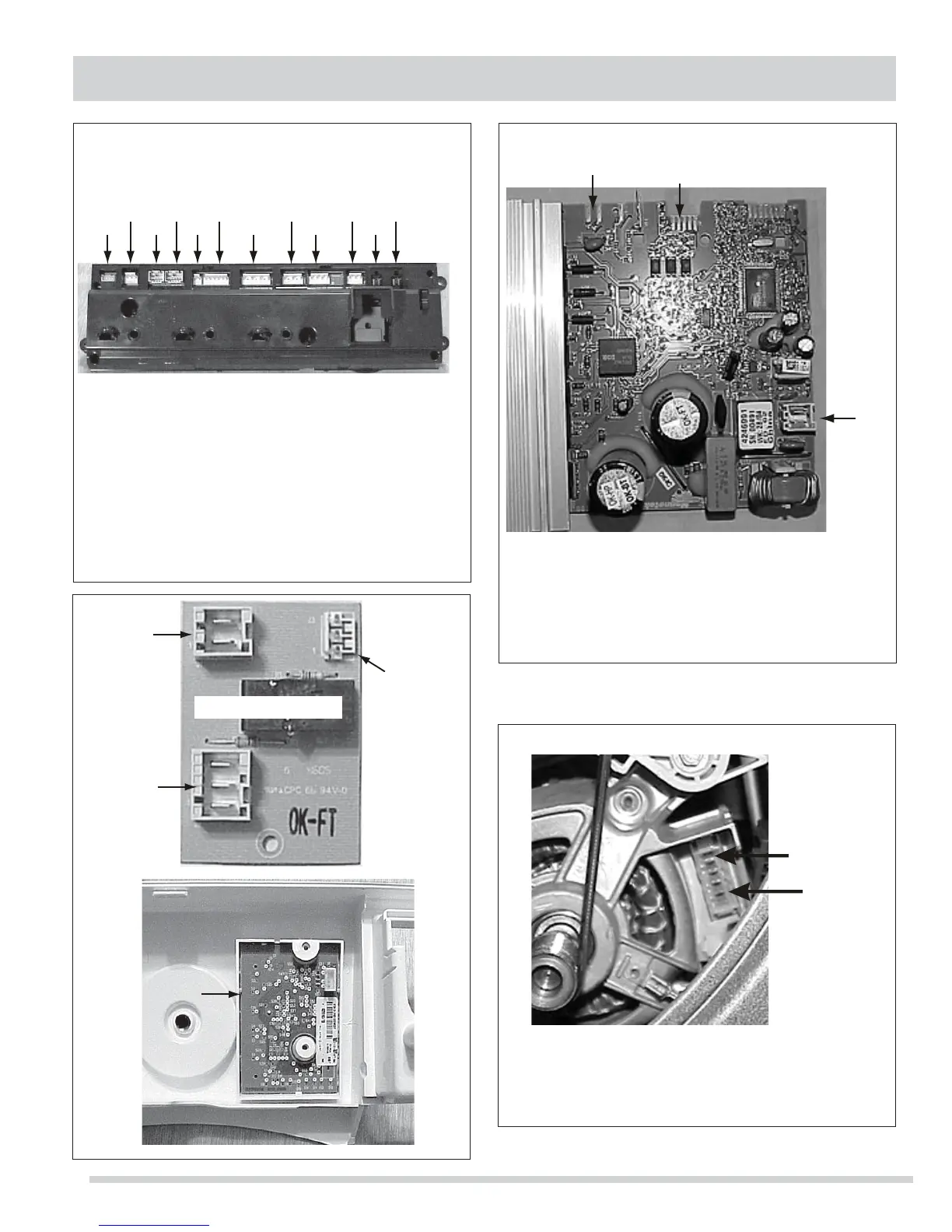

Jacks and Plugs
Control Panel
J3
J4
J6
J12 J1
J2
Control Board Circuits:
J1 Power to the speed control board.
J2 & J3 Door switch assembly circuits.
J4, J9 & J12 Water inlet and drain pump circuits.
J6 Codes to the speed control board.
J7 Thermal sensor circuit. (Some models)
J10 Drum light circuit.
J13 Interface board.
J7
J13 J9 J8
J11
J10
Speed Control Board
Speed control board circuits:
J1
Line to neutral voltage from control board.
J3 Code inputs from control board.
J5 Outputs to the motor windings and
tacho generator.
J1
J3
J5
Motor Plug
Motor Connections:
C5.1, C5.2 & C5.3 Motor winding connections.
C5.4 & C5.5 Tacho generator connections.
C5.1
C5.5
J1
J3
J2
Interface
Board
HeaterControl Board
