Froling P2-25 User Manual

Installers and service technicians

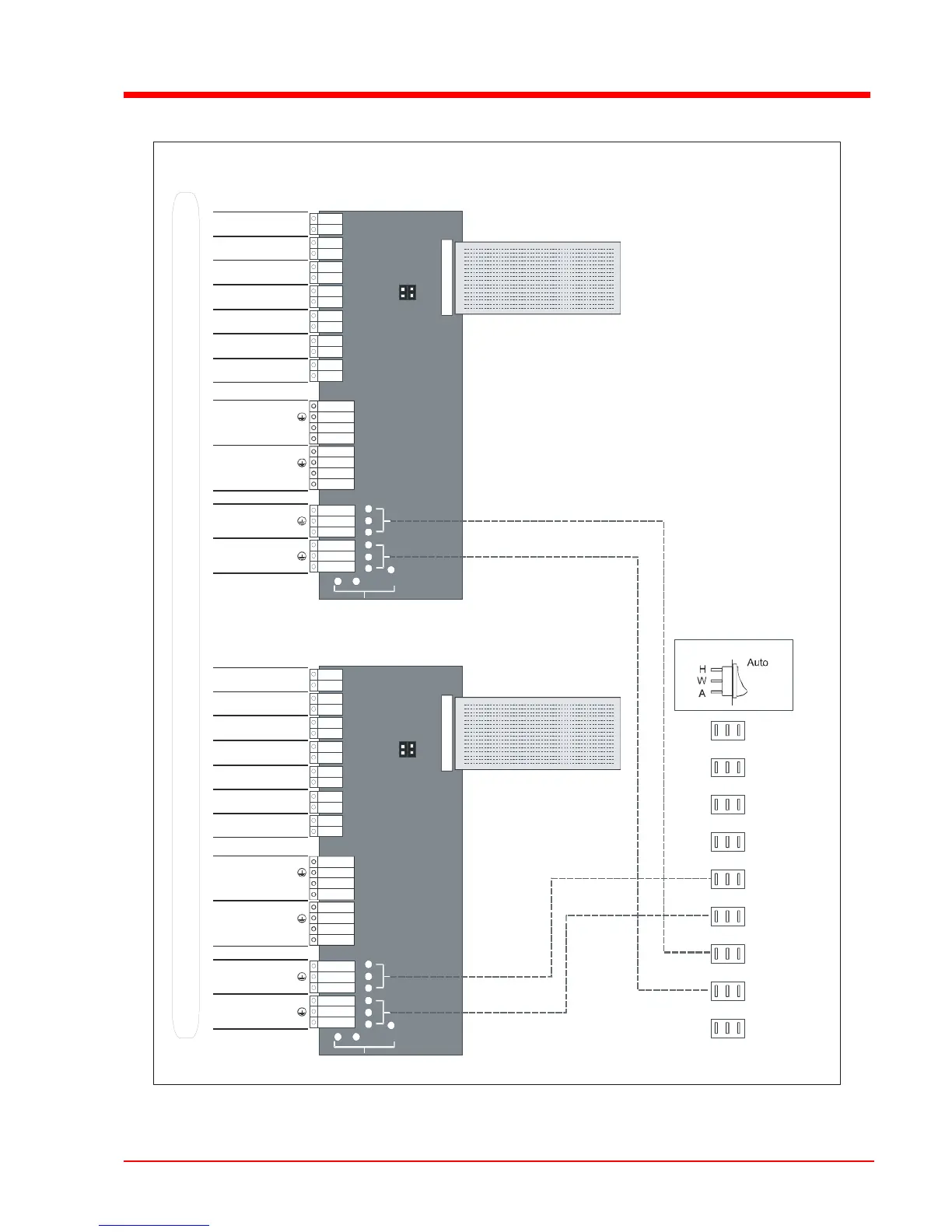

Electrical Connection
Fröling Heizkessel- und Behälterbau Ges.m.b.H, Industriestraße 12, A-4710 Grieskirchen, Austria Page 49
Tel +43 (0) 7248 606-0 Fax +43 (0) 7248 606-600 info@froeling.com www.froeling.com B0190806
7
HCP 2
Heating circuit
pump 2
HCP 1
Sensor 9
Sensor 7
Sensor 8
Sensor 6
OF 4
Outfeed sensor 4
EB 3
Extension board 3
EB 4
Extension board 4
OF 3
Outfeed sensor 3
OF 1
Outfeed sensor 1
ES 1
External sensor 1
OF 2
Outfeed sensor 2
RC 1
Remote control 1
RC 2
Remote control 2
Mixer 2
Heating 2
Heating 1
PE2
PE1
N2
N1
L2
L1
Power supply of motherboard
3
1
0
0
3
1
0
0
L
N
L
N
L
N
L
N
OPEN
CLOSED
N
N
N
N
View of upper level
W
H
A
W
H
A
W
H
A
W
H
A
J
P
2
J
P
2
J
P
1
J
P
1
Mixer 1
OPEN
CLOSED
Extension board 1
Heating 4
Heating 3
Ribbon cable
from motherboard
Heating circuit
pump 1
Ribbon cable
from motherboard
Extension board 2
Power supply of motherboard
HCP 4
Heating circuit
pump 2
HCP 3
Mixer 4
OPEN
CLOSED
Mixer 3
OPEN
CLOSED
Heating circuit
pump 1
Side view of switch
Manual
BLOWER
PUMP 3
PUMP 2
PUMP 1
HEATING 4
HEATING 3
HEATING 2
HEATING 1
HEATING 0/ OIL
Manual (M) - WHITE
Root (R) - BROWN
Automatic (A) - VIOLET
