Electrical Connection
Fröling Heizkessel- und Behälterbau Ges.m.b.H, Industriestraße 12, A-4710 Grieskirchen, Austria Page 51
Tel +43 (0) 7248 606-0 Fax +43 (0) 7248 606-600 info@froeling.com www.froeling.com
B0190806
7.2.3 Jumper setting for solar control
With the solar control the mixer 3 and mixer 4 outputs are used as
pump outputs.
The jumpers on expansion board 2 must be set as shown in the table:
Jumpers on expansion board 2 System
Set JP1 12,13,14
Set JP2 12,14
JP1 and JP2 on expansion board 2 must not be set without a solar
control (for mixer drive).

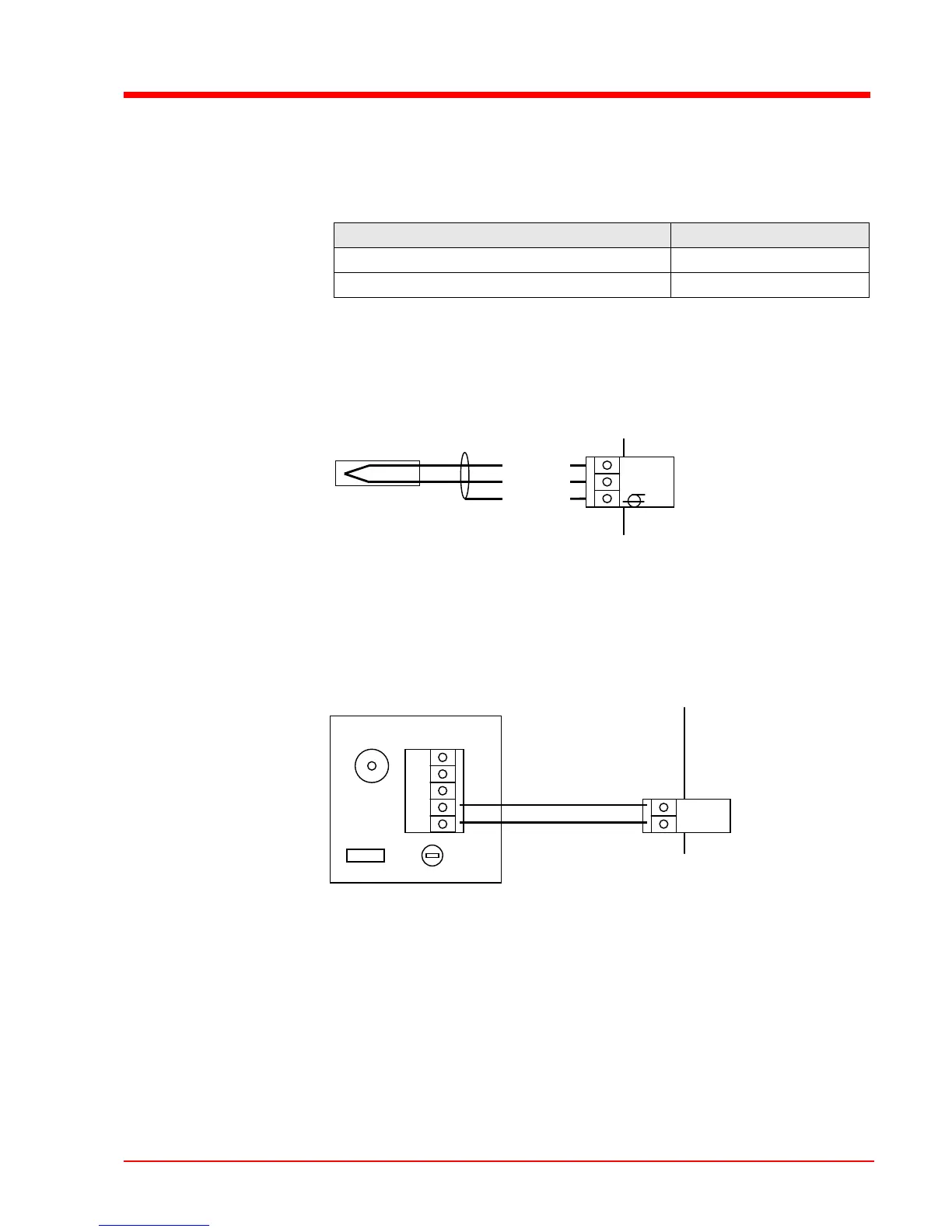

7.2.4 Flue gas sensor
7.2.5 Remote control
The remote control also contains a room sensor which sends the current
room temperature to the control.
Maximum cable length: 40m!
Switch settings:
... Override circuit: ignores the reduction
... Automatic: heating phases as per reduction program
... Drawdown mode: ignores the heating phases
Hand wheel ... allows you to adjust the temperature by ± 3°C
Lambdatronic
P 3100
