Electrical Connection
Page 54 B0190806
s
7

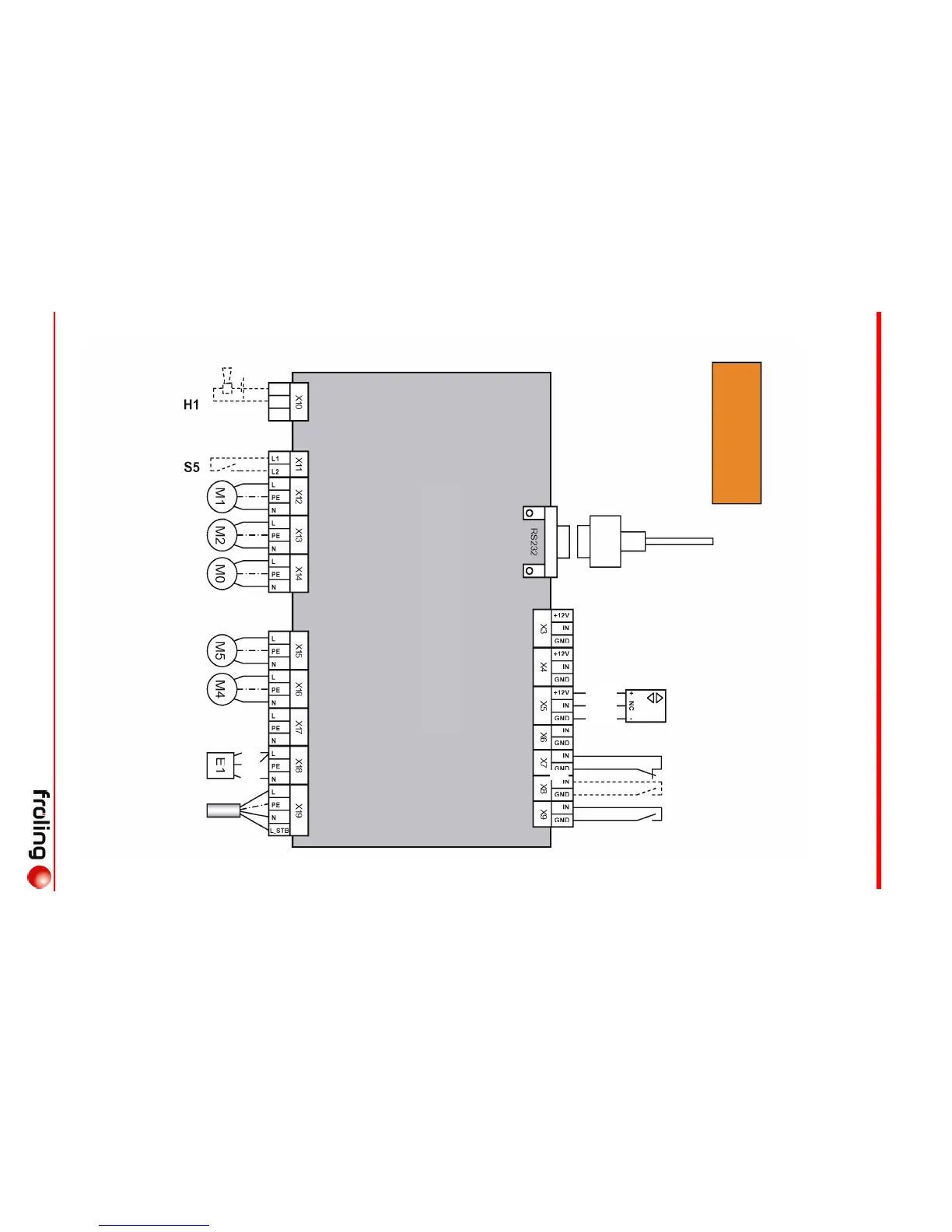

7.3 Connection layout of the pellet module
7.3.1 Pellet module with ash discharge
Caution:
Only connect
devices, which are shown!!!
To motherboard:
“Device extension”
S1 MAX level
(day store)
S2 Gravity shaft
level sensor
S4 Combustion chamber
excess pressure monitor
S6 Boiler release
(activation via menu)
Key switch
Example connection
Fault pot.
Free contact
Stoker thermostat
Only for devices
without pellet valve
Stoker
Discharge screw
Fan
Ash screw
Heat exchanger drive
Suction unit
Ignition
230VAC power supply:
from the mains
plug of the motherboard
black
white
blue
Clos.
R
Opener
3100 pellet module
b
r
o
w
n
w
h
i
t
e
b
l
u
e
+12V
