8. Description of carriage with oscillation
The carriage with oscillation consists of a drive system, pressing roller units,
oscillation, cross slide, torch holder, remote control, and a control box. The drive
system comprises a gear motor that drives the gear. The fixed roller unit lever and
rotational roller unit lever are used for fixing the carriage by clamping four hardened
steel rotational rollers to the guide using disk springs.
The clutch enables the gear to engage or disengage with the holes of the hardened
spring steel rail guide. The cross slide enables for precise control of the torch position
in both horizontal and vertical axis. The carriage travels according to parameters
programmed on the controller. The controller with the magnetic foot can be
positioned on the carriage, on the pipe, on flat ferromagnetic surfaces, or can be hold
in hands. The controller enables for programming and adjusting all welding
parameters as well as positioning of the torch during welding. The control box
assures communication between the controller and the welding device.

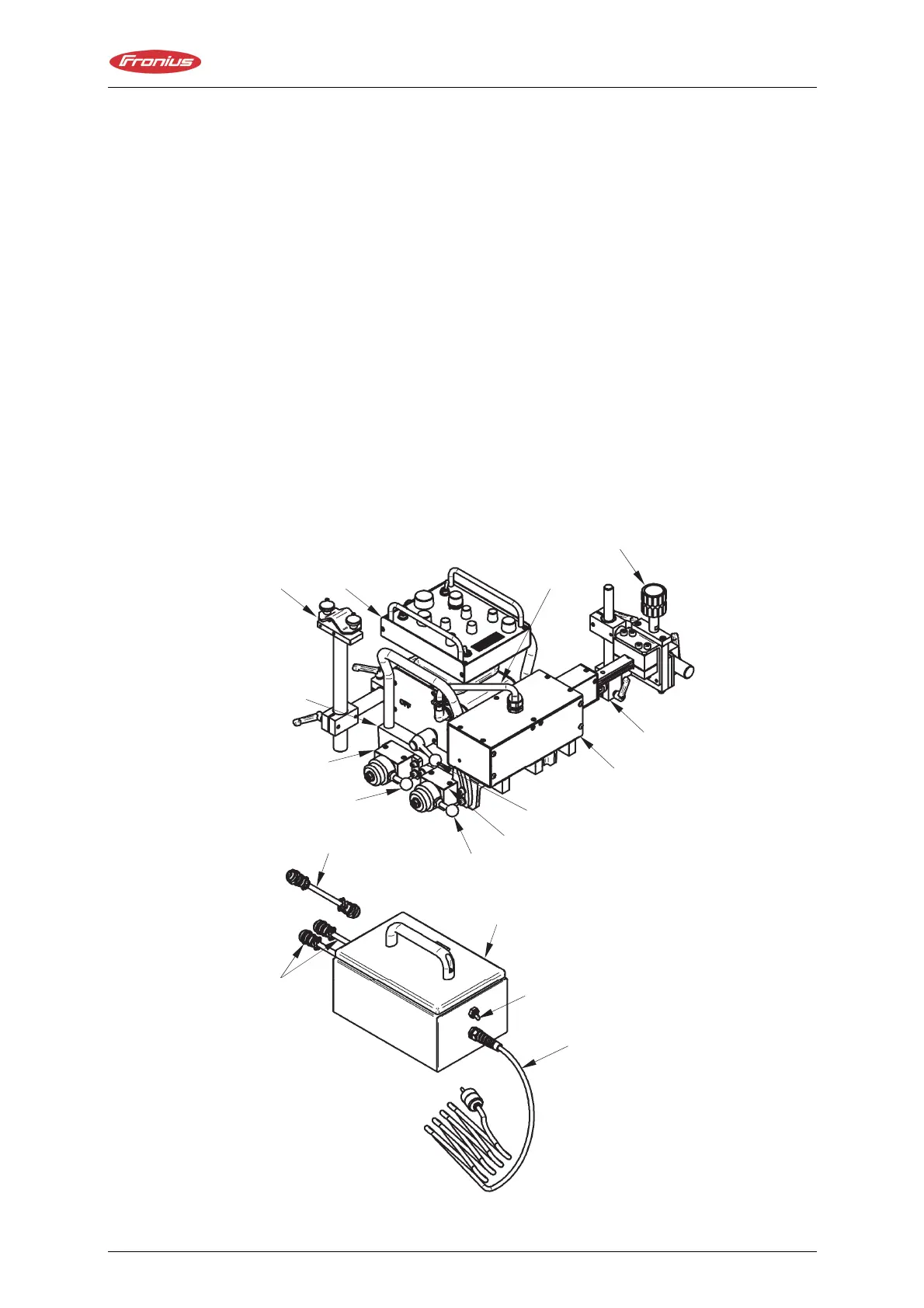

Remote control
cable holder
fixed pressing roller unit
fixed pressing roller lever
rotational pressing roller lever
rotational pressing roller unit
oscillator
torch vertical guide
torch holder
Clutch ON / OFF
welding device cable
control box
Main switch
Connection cable
Remote control and
drive system cables
drive system
oscillator cable
