© FRONIUS 2013 19
12. Straight rails

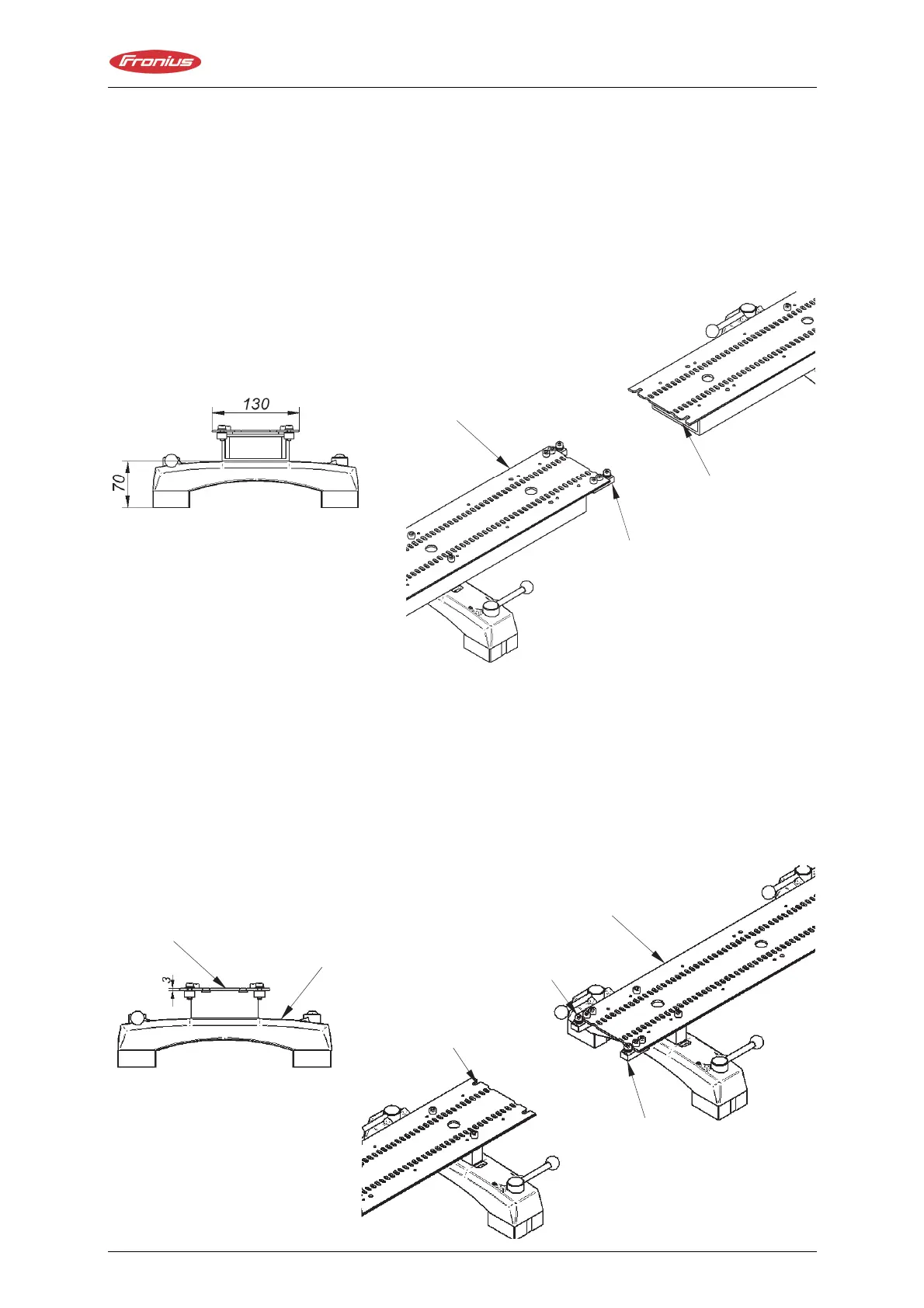

1.3 Straight rigid rail
The rigid rail consists of a guide made of the harden spring steel fixed using
rivets to an aluminum profile. M6 screws are used to assemble the unit to
magnetic bridges as well as to interconnect the rail segments.
1.4 Straight flexible rail
The straight flexible rail consists of a guide made of harden spring steel mounted
on the basic magnetic bridges (without fixing mechanism) with a distance block.
Place the rail on ferromagnetic steel with thickness of at least 5 mm and
minimum curvature inner/outer radius of 1500/1100 mm.
M6 screw
groove
lock
lock
M6 screw
groove
R L=1884mm
magnetic bridge with distance block
flexible rail
