© FRONIUS 2013 5

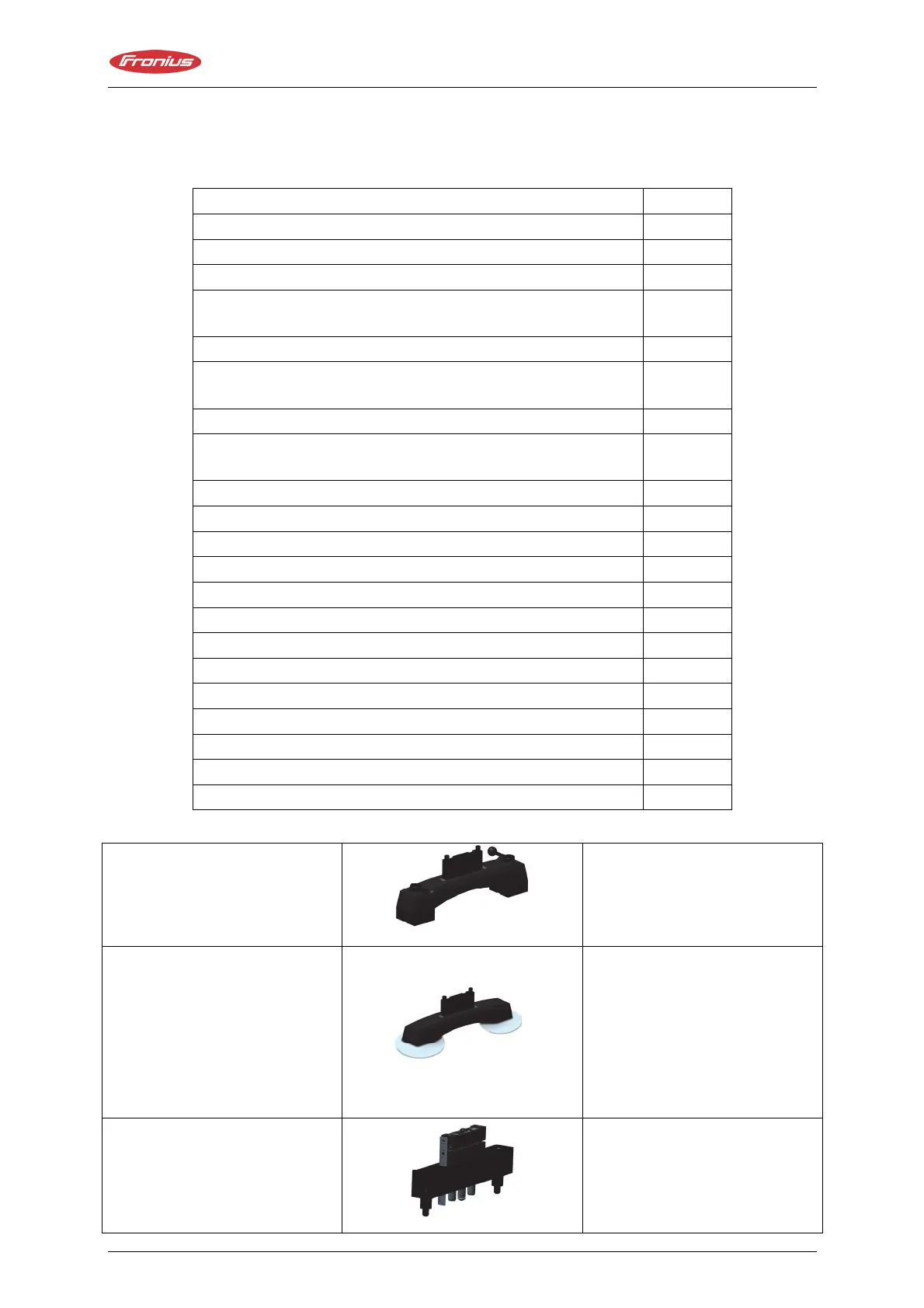

3. Weight of bridges and rails
Magnetic bridge 2.5 kg
Vacuum bridge 1.6 kg
Magnetic bridge with distance block 2.7 kg
Vacuum bridge with distance block 1.8 kg
Magnetic bridge with distance block and fixing
mechanism
3.4 kg
Magnetic bridge with fixing mechanism 3.2 kg
Screw feet bridge with distance block and fixing
mechanism
1.5 kg
Screw feet bridge with fixing mechanism 1.3 kg
Vacuum bridge with distance block and fixing
mechanism
2.6 kg
Vacuum bridge with fixing mechanism 2.4 kg
Rigid rail 1884 mm 11 kg
Flexible rail 1884 mm 5.5 kg
Flexible rail 1695 mm 4.8 kg
Flexible rail 1130 mm 3.3 kg
Ring rail Ø200-300 mm 8.8 kg
Ring rail Ø300-480 mm 11 kg
Ring rail Ø480-660 mm 14 kg
Ring rail Ø660-840 mm 16 kg
Rail segment Ø840-1020 mm 19 kg
Rail segment Ø1020-1200 mm 22 kg
Rail segment Ø1200-1380 mm 24 kg
Rail segment Ø1380-1560 mm 27 kg
MAGNETIC BRIDGE
For magnetic workpieces.
Heat resistant up to 180°C
(356 °F). Adjustable
magnetic force.
VACUUM BRIDGE
(2 Versions)
For non-magnetic
workpieces. A vacuum
pump is required.
Version 1: Heat resistant
up to max. 80° (176°F)
Version 2: Heat resistant
up to max. 250°C (480°F).
SCREW FEET BRIDGE
Recommended for rigid
ring rails up to 840 mm
(33.1 in) diameter.
