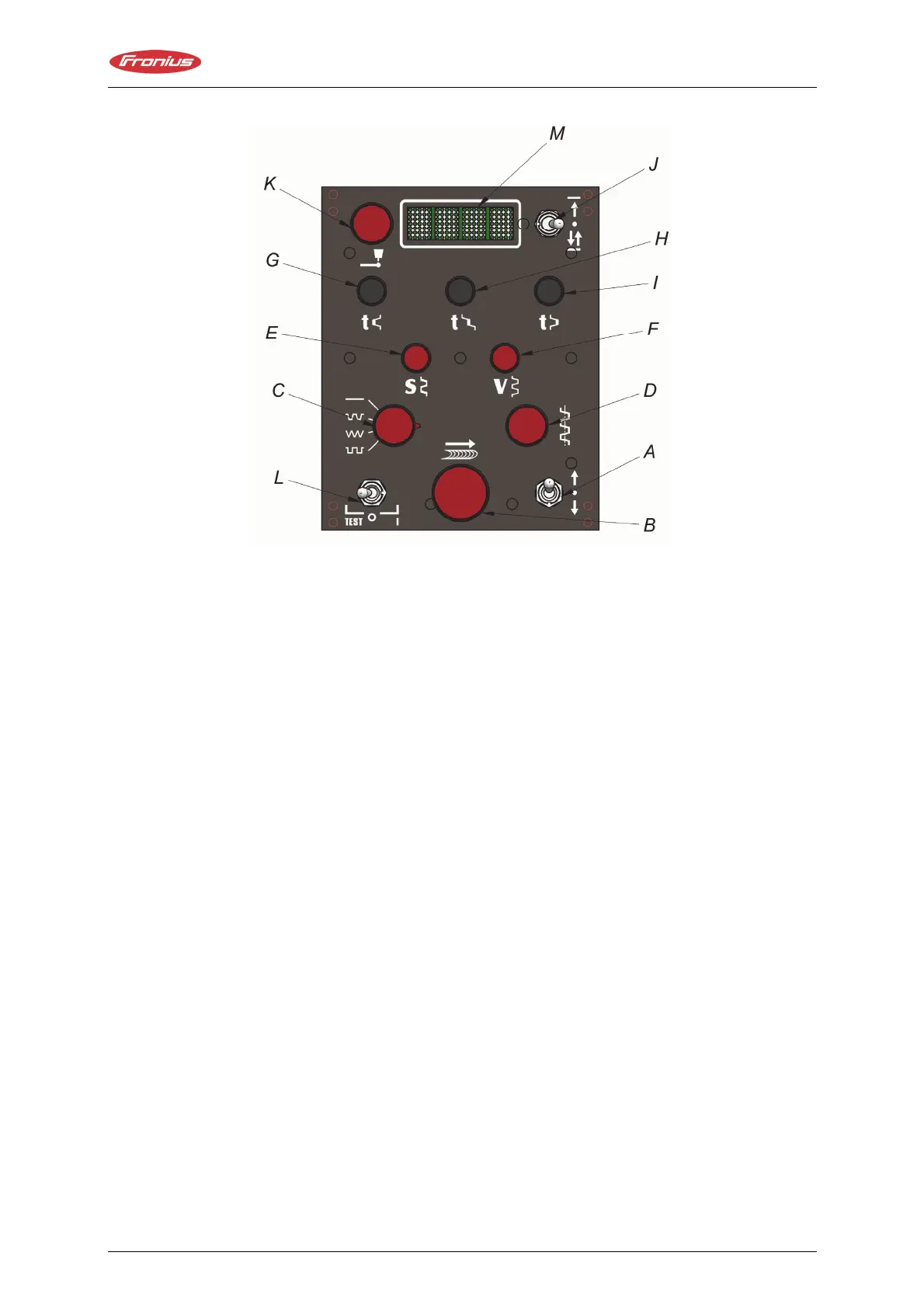

Description:
A – Travel direction switch with neutral (middle) ‘stop’ position.
B – Travel speed adjustment (5–150 cm/min).
C – Oscillation modes: no oscillation, trapezoid, rectangular or triangular.
D – OSC offset
E – OSC amplitude (2–30 mm).
F – OSC speed (5–400 cm/min).
G – OSC dwell time left (0–3 s).
H – OSC dwell time middle (0–3 s).
I – OSC dwell time right (0–3 s).
J – Direction change/stop: changes direction or stops, when limit switch gets
activated
K – End crater filling (0–5 s).
L – Welding modes: Test (left position), No Arc (middle pos.) Arc (right pos.)
M – 4-position numeric display. Indication selectable between metric or imperial
measure units.
Note: To change the value of a parameter, press the required button lightly. Once it
is pressed, the current value of the parameter will show on the display along with the
corresponding symbol of the parameter.
