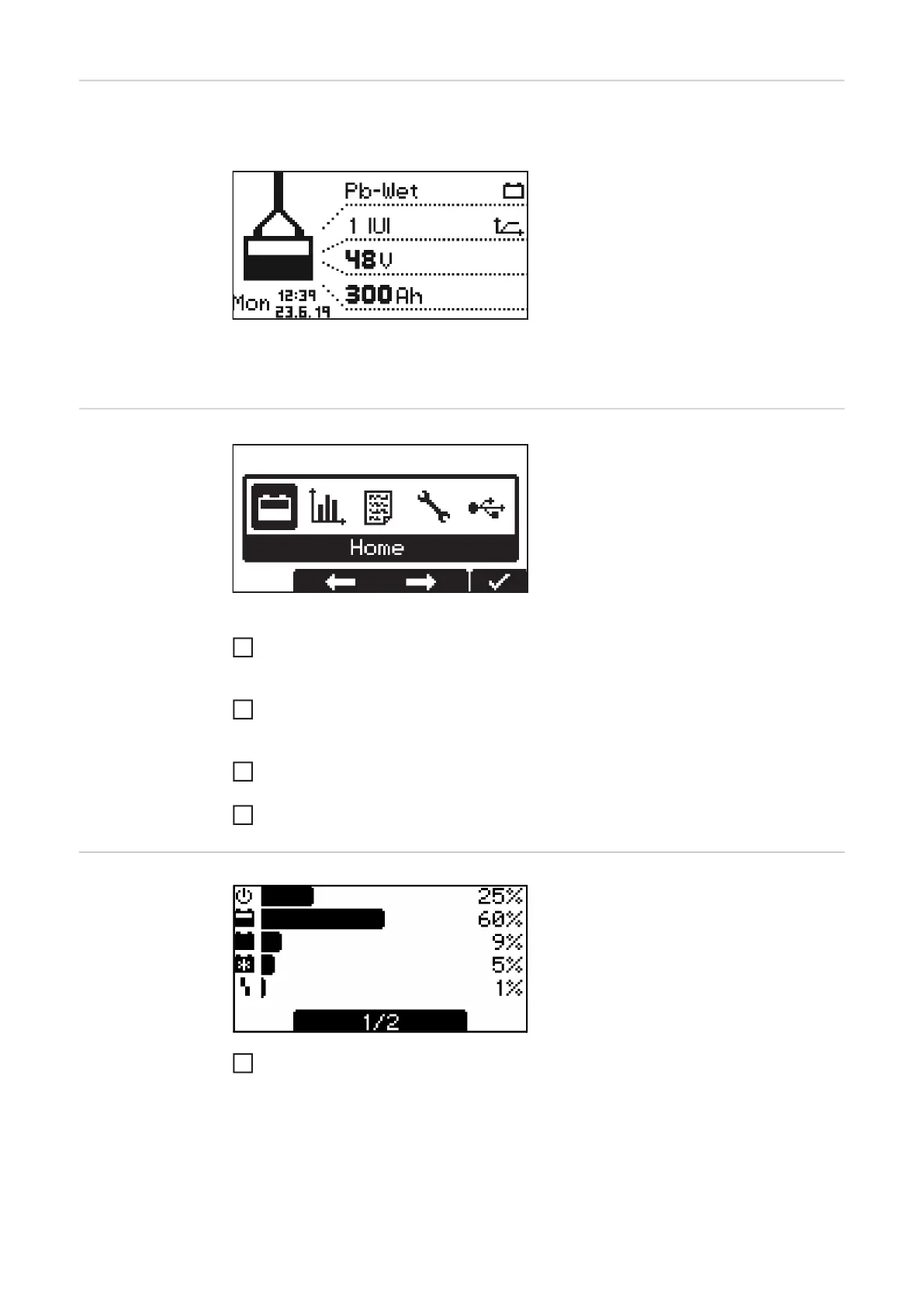

Standard mode Once the mains plug has been connected to the electrical mains supply, the display will
automatically operate in standard mode.
In standard mode, the display shows the
following charger parameters:
- Type of battery (e.g. Pb-WET)
- Charging characteristic (e.g. IUI)
- Nominal voltage (e.g. 48 V)
- Capacity (e.g. 300 Ah)
- Day of the week, date and time
The charger parameters can be set individually. More information can be found in the
"Configuration mode" section.
Menu selection
Change from standard mode to the menu selection as follows:
Press and hold the "Menu" key for approx. 5 seconds.
Change from all other modes to the menu selection as follows:
Briefly press the "Menu" key.
To select the desired mode:
Use the "Up/Down" keys to select the symbol for the desired mode.
- e.g. the battery symbol for standard mode
Use the "Pause/Start" key to confirm the "Tick" symbol.
Statistics mode In statistics mode, horizontal bars display
the frequency of the following device opera-
ting statuses:
- Idle
- Charging
- Floatingcharge
- Cooldown
- Error
Use the "Up/Down" keys to toggle between page 1/2 and page 2/2.
