Fronius Selectiva 4.0 Series - Fitting Plate for Mounting; Mounting Plate Dimensions

58

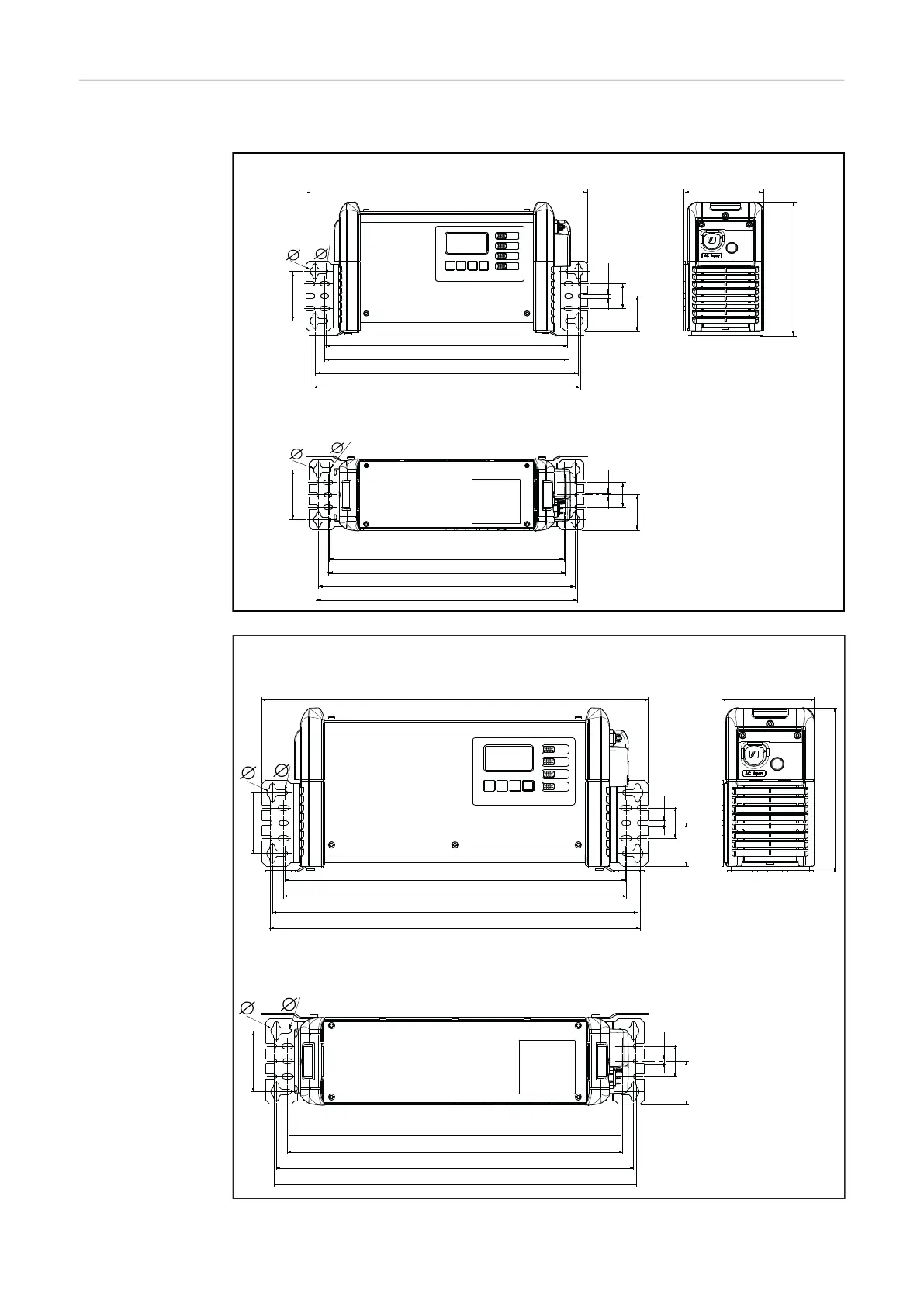

Fitting plate The mounting plate may be used as a space-saving floor or wall bracket.
406 (15.98)
mm (in.)
2 kW
349 (13.74)
352 (13.86)
380 (14.96)
386 (15.2)
339 (15.98)
342 (13.74)
370 (13.86)
376 (14.96)
115 (4.53)
6,5 (.26)
38 (1.5)38 (1.5)
53.8
(2.12)
53.8
(2.12)
6,5 (.26)6,5 (.26)
76 (2.99)
205 (8.07)
76 (2.99)
14 (.55)
6,5 (.26)
14 (.55)
425 (16.73)
482 (18.98) 115 (4.53)
428 (16.85)
456 (17.95)
462 (18.19)
415 (16.34)
418 (16.46)
446 (17.56)
452 (17.80)
6,5 (.26)
38 (1.5)38 (1.5)
53.8
(2.12)
53.8
(2.12)
6,5 (.26)6,5 (.26)
76 (2.99)
205 (8.07)
76 (2.99)
14 (.55)
6,5 (.26)
14 (.55)
mm (in.)
3 kW
