Normal
- Start ON
Charging starts when an external switch is closed and a battery is detected,
or when the charging plug is connected by closing the auxiliary contacts and a battery
is detected.
- Start OFF
Charging starts when a battery is connected.
- Stop ON
Charging is interrupted when an external switch is opened,
or when the charging plug is disconnected by opening the auxiliary contacts.
- Stop OFF
Opening of an external switch or the auxiliary contacts is ignored.
Contact detection
- ON
When Start Normal is ON, a battery is connected and the external start/stop contact
is not closed, error 16 is set.
When Stop Normal is ON, charging has started, the external start/stop contact is open
and the battery is not disconnected, error 16 is set.
- OFF
Contact detection does not take place.
Refill Indicator
The refill indicator is a message that appears as soon as the battery needs topping up with
distilled water. The time at which refilling is deemed necessary can be defined as follows:
Every nth week and weekday
- e.g. top up with water every fortnight on a Friday
If set to "OFF", the refilling request does not have to be confirmed.

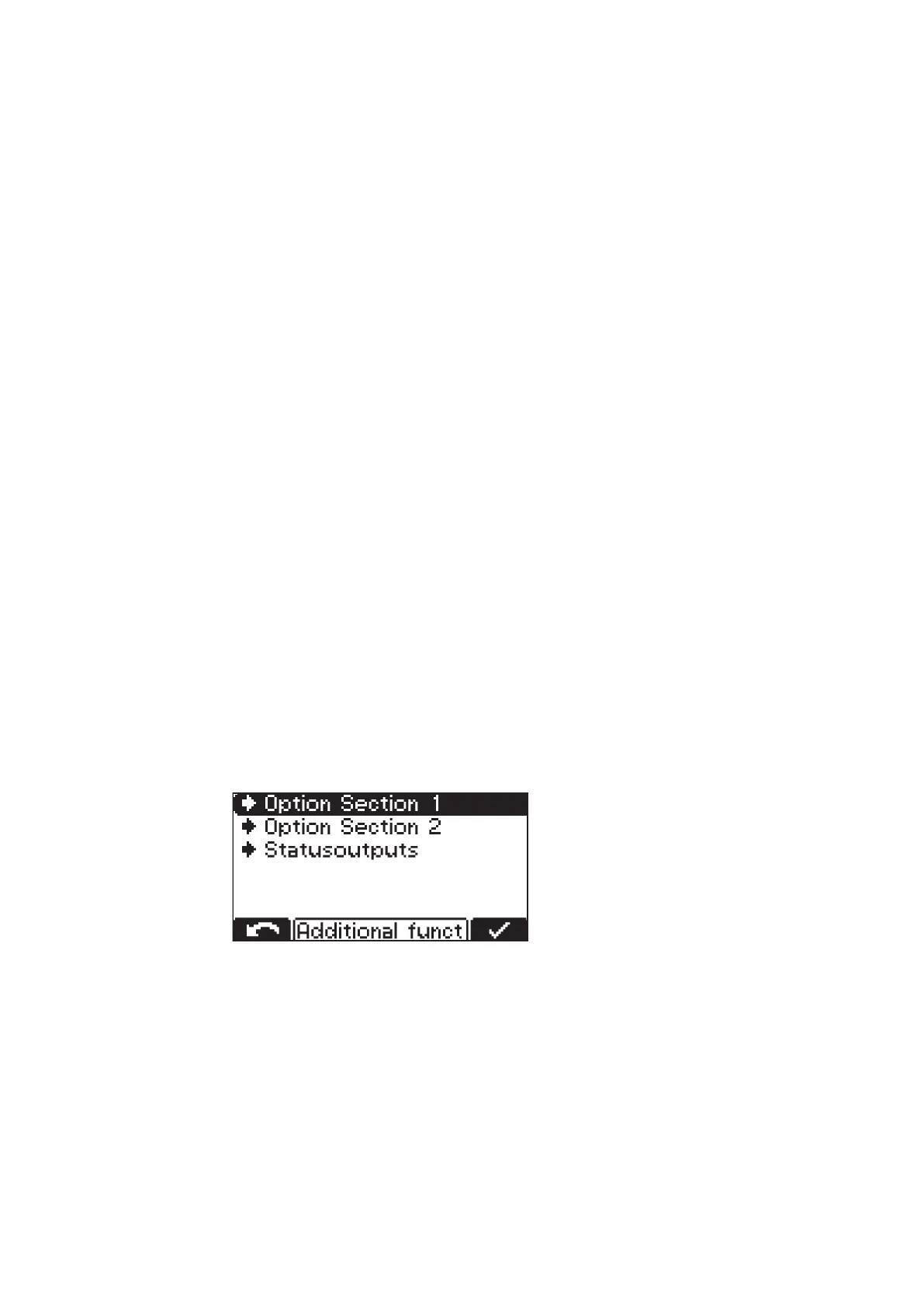

Option Section
Option Section 1
- Setting options:
CAN1 (option box)
Cool Bat Guide Easy (Fronius variants only)
Option Section 2 (3 kW only)
- Setting options:
CAN2 (option box)
AirPuls (EUW)
Status outputs (3 kW only)
- Setting for external lamp (normal or RGB)
