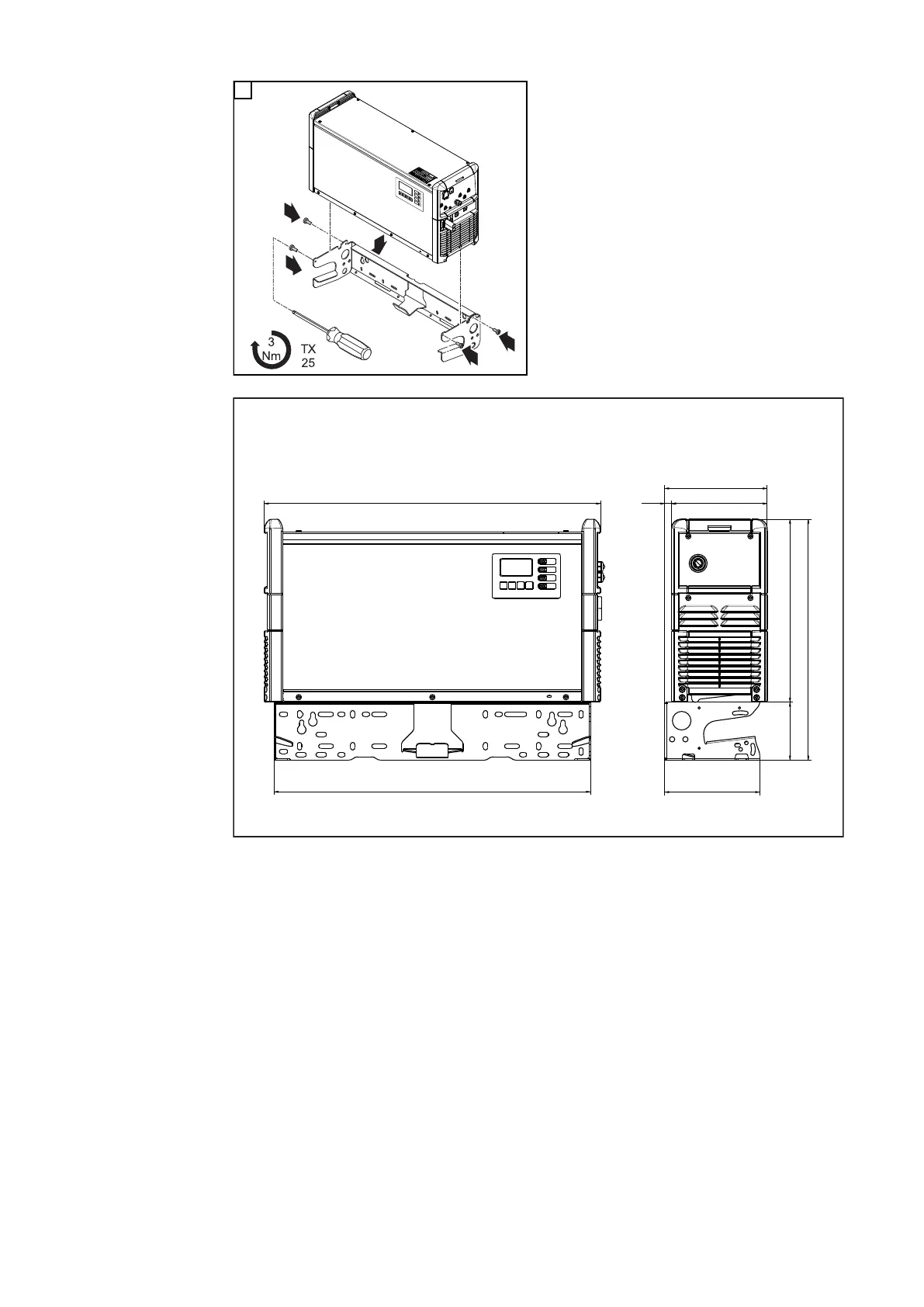

Warning notices
inside the device
WARNING!
Danger from electric current.
This can result in serious injury or death.
► The housing must never be opened by anyone other than a trained service technician.
► The device must be disconnected from the mains before starting any work with the
housing open.
► A suitable measuring instrument must be used to ensure that electrically charged com-
ponents (e.g. capacitors) are fully discharged.
► Use an easily legible and understandable warning sign to ensure that the device is not
reconnected to the mains supply before all the work has been completed.
Inside the device:
(A) CAN (B) Signal lamps
(2) External start/stop (+) - black (1) 12 V
(3) External start/stop (-) - black (2) GREEN
(5) Detect - white (3) YELLOW
(6) CAN High - green (4) RED
(7) CAN Low - yellow (5) BLUE
(8) CAN GND - brown (6) External start/stop (+)
(7) External start/stop (-)
(2)
black
white
Ext. Start/Stop (-)
black
Detect
42,0409,0411
CAN High
green
CAN Low
yellow
CAN GND
brown
(3)
(5)
(6)
(7)
(8)
Ext. Start/Stop (+)
(A)
(B)
WARNING
Hazardous Voltage
(4)
(5)
(1)
(2)
(3)
REMOTE
CONTROL
Lights
1
2
3
4
12V
GREEN
YELLOW
RED
BLUE
Ext. Start/Stop (+)
Ext. Start/Stop (-)
(6)
(7)
Kondensator Entladezeit < 2 min.
Capacitor discharge time < 2 min.
Décharge de condensateur < 2 min.
Condensador tiempo de descarga < 2 min.
Condensatore tempo di scaricamento < 2 min.
