(9) Mains cable
(10) Optional LED strip.
Lights up in different colours depending on the state of charge, as explained in
the "Control panel" section.
(11) Control panel
(12) CAN connection area
The connection area can only be accessed by removing the connection plate on
the front of the device.
The warning notices in the "Safety" section of the "Options" chapter must be
obeyed.

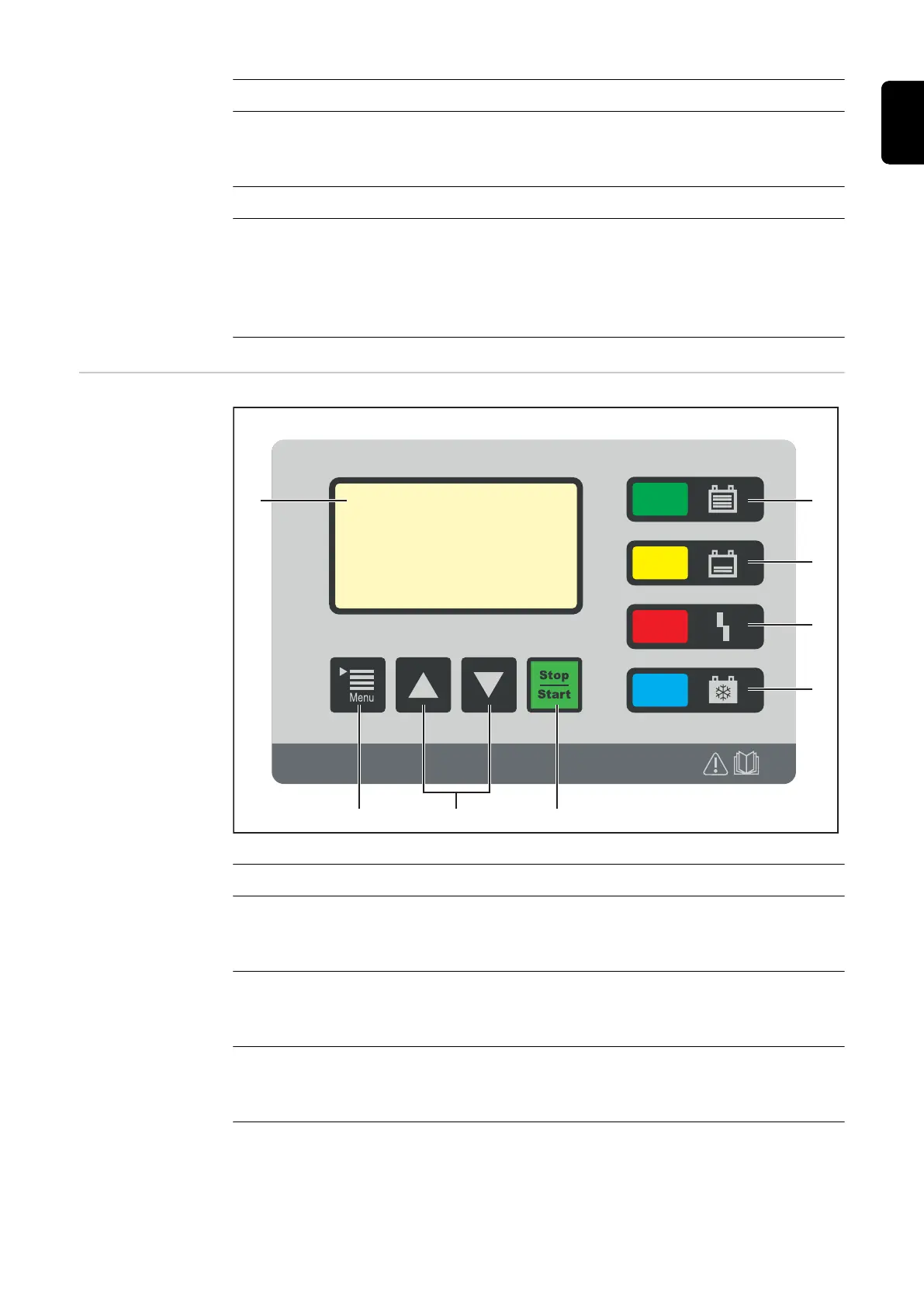

Control panel
(1) (8)
(7)
(6)
(5)
(4)(3)(2)
No. Function
(1) Display
Displays the current charging parameters
Displays settings
(2) "Menu" key
Selects the desired menu
Selects the appropriate symbol to return to the previous display
(3) "Up/Down" keys
Selects the desired menu item
Sets the desired value
(4) "Stop/Start" key
For interrupting and resuming the charging process
Confirms a menu item or setting
