When you select a menu item you may be
presented with a prompt to read the Oper-
ating Instructions. Confirm this prompt by
pressing the "Pause/Start" key again.
The procedure for navigating the configuration menu and its submenus is as follows:
1
Use the "Up/Down" keys to select the desired menu item.
2
Use the "Pause/Start" key to confirm the menu item, and reconfirm any double-
check prompt (e.g. "OK?").
3
Use the "Up/Down" keys as necessary to choose an item, e.g. "Off/On" or enter a
value.
4
Use the "Pause/Start" key to confirm what you have entered.
5
If the cursor moves to another setting or position after confirmation of the previous
setting, repeat the procedure described in points (3) and (4).
To exit the current menu:
6
Press the "Menu" key to return to the higher-level menu.

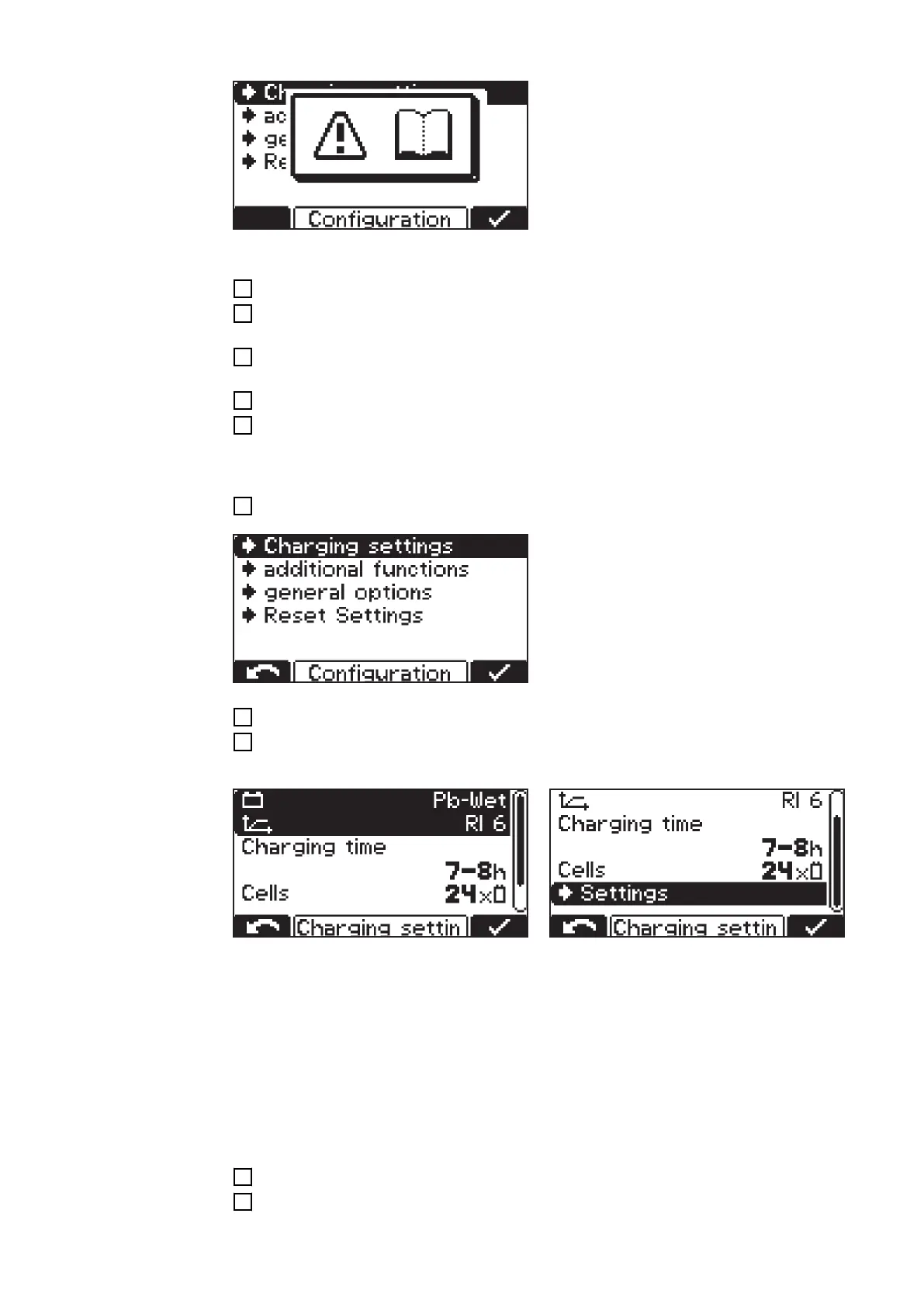

See the following explanation of how to set
the charging settings by way of example:
1
Use the "Up/Down" keys to select the "Charging settings" menu item.
2
Use the "Pause/Start" key to confirm this menu item.
The choice of settings for the "Charging settings" menu item will now be displayed:
the display may vary depending on the selection made. If the "Pb-WET" type of battery
has been selected in combination with the "RI" characteristic ("Curve") as in the example
here, the "Ah" heading is replaced by the "Charging time" setting option.
Both the start and end time can be set for this charging time period. The starting time
can be deselected as required; the charging time then bases itself exclusively on the
specified charge end time following a manual charge start.
When applying the settings, the user will be guided through the menu in much the same
way as a wizard function.
3
Use the "Up/Down" keys to select the desired parameter (e.g. "Cells").
4
Use the "Pause/Start" key to confirm the parameter.
