The charger parameters can be set individually. More information can be found in the
"Configuration mode" section.
Menu selection
Change from standard mode to the menu selection as follows:
1
Press and hold the "Menu" key for approx. 5 seconds.
Change from all other modes to the menu selection as follows:
1
Briefly press the "Menu" key.
To select the desired mode:
2
Use the "Up/Down" keys to select the symbol for the desired mode.
- e.g. the battery symbol for standard mode
3
Use the "Pause/Start" key to confirm the "Tick" symbol.

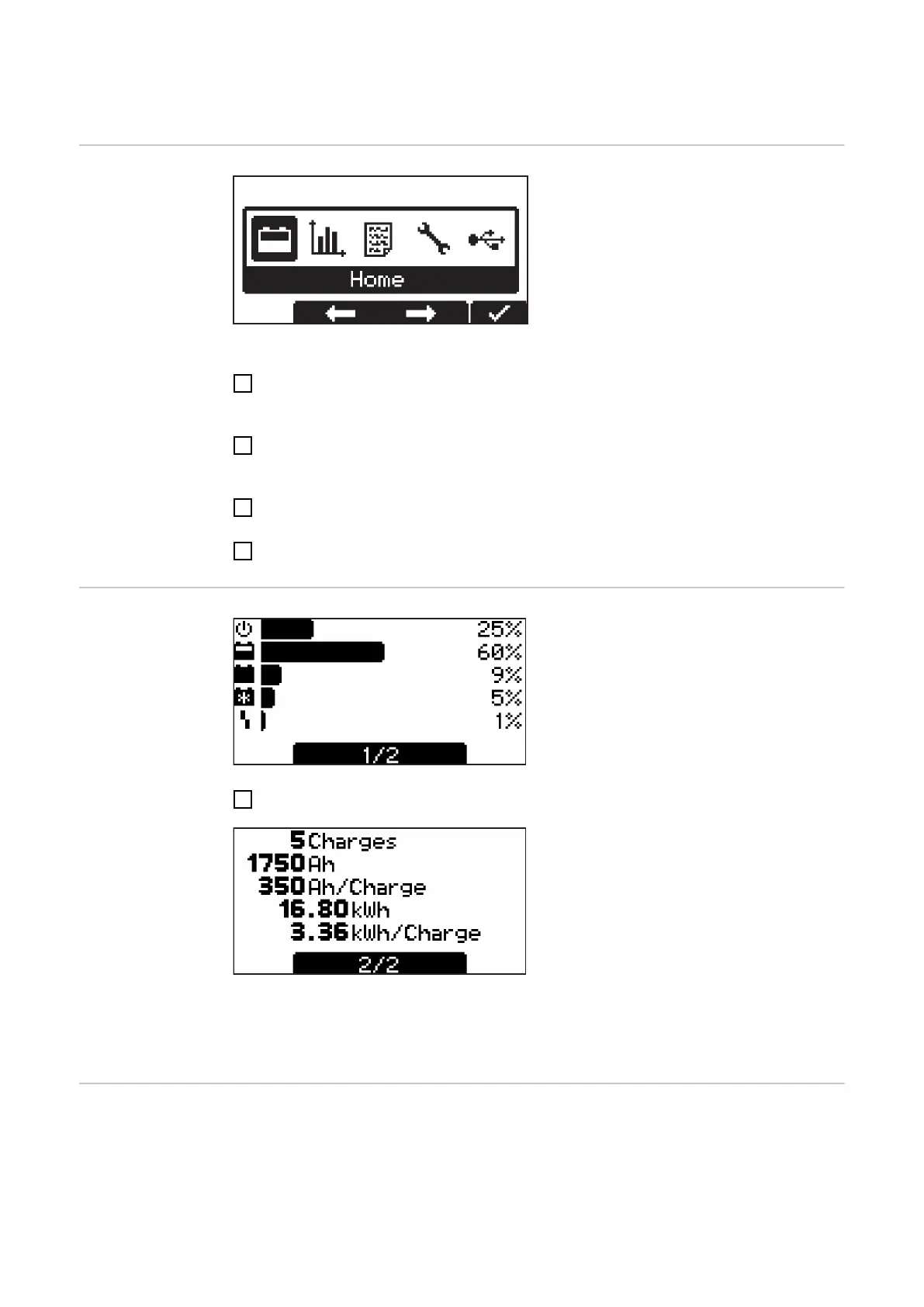

Statistics mode In statistics mode, horizontal bars display
the frequency of the following device oper-
ating statuses:
- Idle
- Charging
- Floatingcharge
- Cooldown
- Error
1
Use the "Up/Down" keys to toggle between page 1/2 and page 2/2.
Page 2/2 shows the following values:
- Total number of charges.
- Total Ah output.
- Average Ah output per charge.
- Total energy consumed (kWh).
- Average energy consumed (kWh) per
charge.
The consumed energy display is a standard value and can deviate from the actual
amount of energy by up to 5% at nominal output. At lower power levels the deviation
may be higher.
History mode History mode provides information about the parameters for all the stored charging pro-
cesses. In order to show changing or different displays, two versions of the display win-
dow are shown below:
