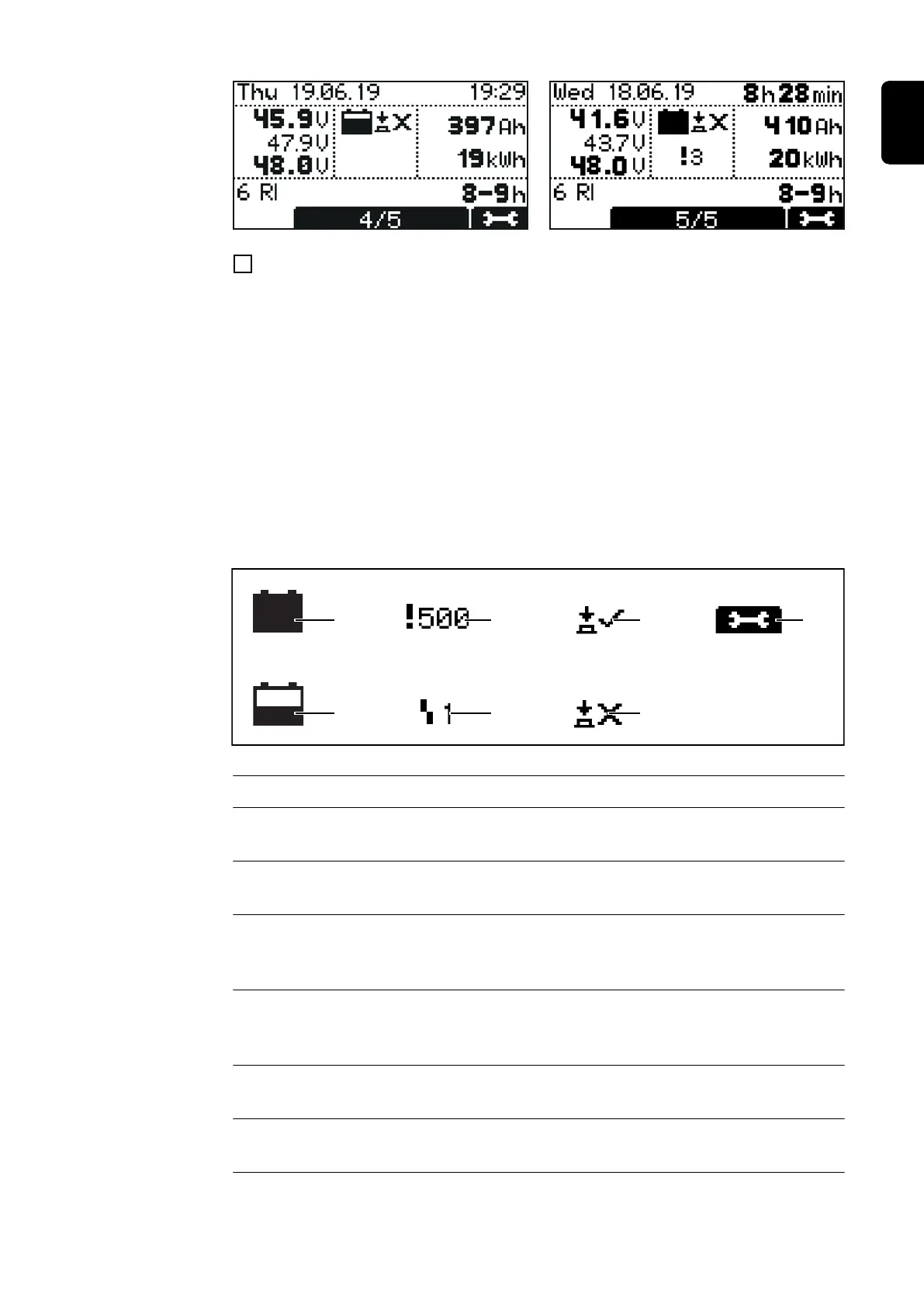

Display
Overview of
modes
The device has the following modes:
As long as a battery is connected to the battery charging system, the charging process can
only be interrupted and resumed using the "Stop/Start" key. Display modes can be
changed using the "Menu" key as described in the following sections that explain the indi-
vidual modes, but this is only possible when there is no battery connected to the battery
charging system.
During a pause in the charging process the menu selection is available, however only in a
limited form. In this case the modes described below are available as follows:
Statistics mode and history mode remain unrestricted.
In configuration mode the following data is available:
- Date and time
- Device serial number
- Hardware version and serial number
- Software: main software, secondary software, primary software and characteristic
block version
In USB mode all options except for "Update" and "Load configuration" are available.
Standard mode Once the mains plug has been connected to the electrical mains supply, the display will
automatically operate in standard mode.
Standard mode
In standard mode the display shows the charging parameters
Statistics mode
Visualises the frequency of the device operating modes and shows the total
number of charging actions. Also shows an overview of the total and average Ah
produced and energy consumed per charge
History mode
Provides information about the parameters for all the stored charging processes
Configuration mode
Configuration mode enables all the settings for the device and the charging pro-
cess to be adjusted
USB mode
USB mode enables a device to be updated, device configurations to be saved
and loaded, and the charging parameters to be recorded during the charging
process - all using a USB flash drive
