Setup regulations
WARNING!
Danger from machines falling or toppling over.
This may result in serious injury and damage to property.
► Make sure that all system components are securely in position when setting them up.
► If using a floor bracket or wall bracket, always make sure that all the fastenings are se-
cure.
► Devices weighing more than 25 kg (55.12 lb.) must be carried by at least two people.
► If mounting on shelves, the shelf must be capable of supporting the weight of the de-
vice.
The device is tested to IP20 protection, meaning:
- Protection against penetration by solid foreign bodies with diameters exceeding 12.5
mm (0.49 in.)
- No protection against water
The device can be set up and operated in dry, closed areas that comply with degree of pro-
tection IP20. Exposure to wet conditions should be avoided.
The device may only be operated in a hori-
zontal position.
Cooling air
The charger must be set up in such a way that the cooling air can flow unimpeded through
the vents in the housing that are provided for that purpose. Ensure that there is always a
minimum clearance of 0.2 m (7.874 in.) around the air inlets and outlets. The surrounding
air must be free from
- Excessive dust
- Electrically conductive particles (carbon black or swarf)
- Heat sources

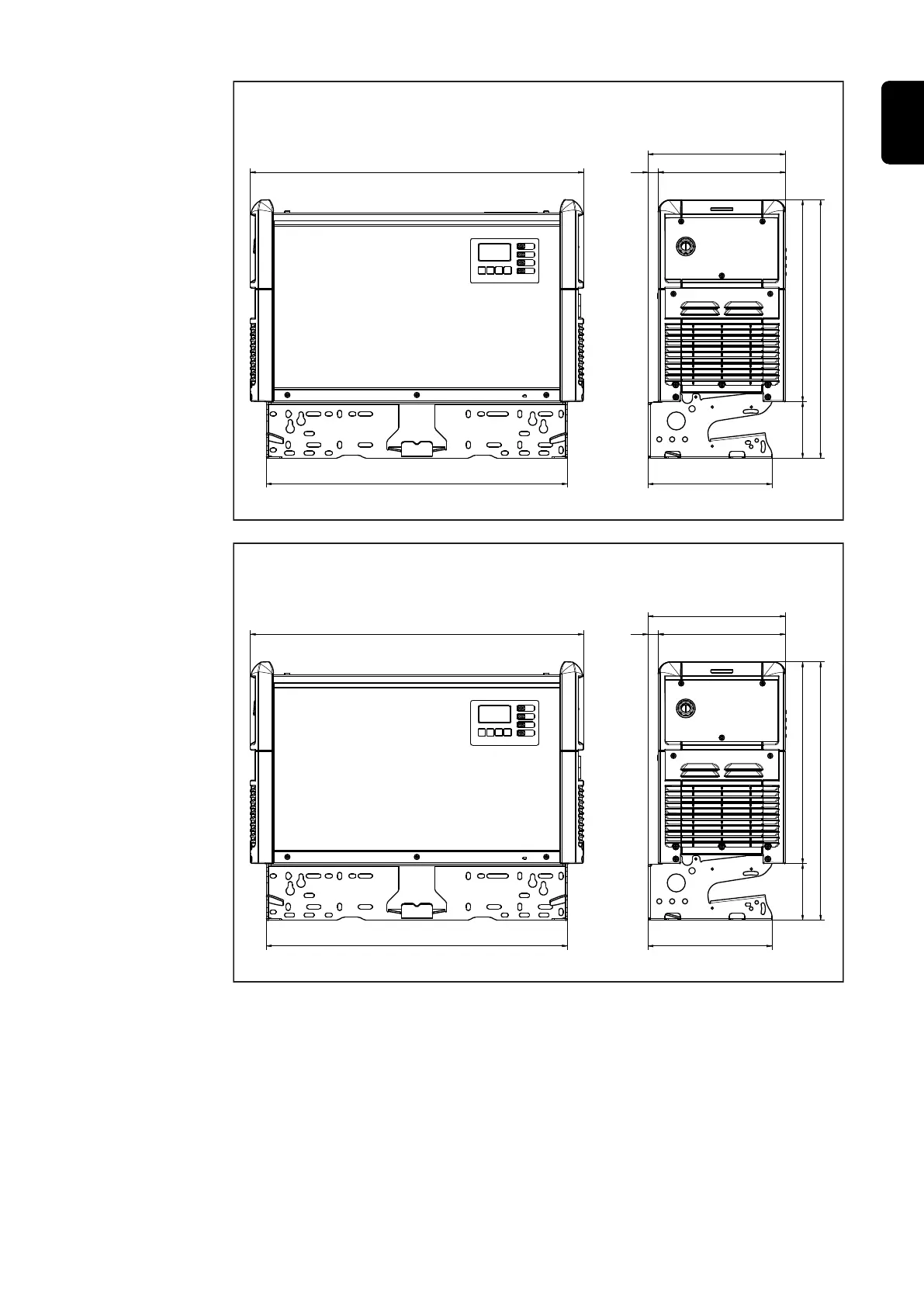

Cooling air is drawn in and flows out as indicated by the arrows in the following illustrations.
NOTE!
Danger due to partially or fully covered air inlets and outlets.
This can result in damage to property.
► If several chargers are set up one behind the other, they should be offset.
To Next Page
