Charging the battery
Charging
WARNING!
Danger due to escaping battery acid or explosion if faulty batteries are charged.
This may result in serious injury and damage to property.
▶
Before charging, ensure that the battery to be charged is fully functional.
WARNING!
Danger due to faulty charging settings or a defective battery.
This may result in serious injury and damage to property.
▶
Before charging, ensure that the battery to be charged is fully functional.
NOTE!
Risk of property damage if the charging plug contacts are very dirty.
The resulting increase in contact resistance can lead to overheating and subsequent
destruction of the charging plug.
▶
Keep the charging plug contacts free from impurities and clean them if necessary
1
Connect the charger mains plug to the electrical mains supply
The display appears in standard mode.

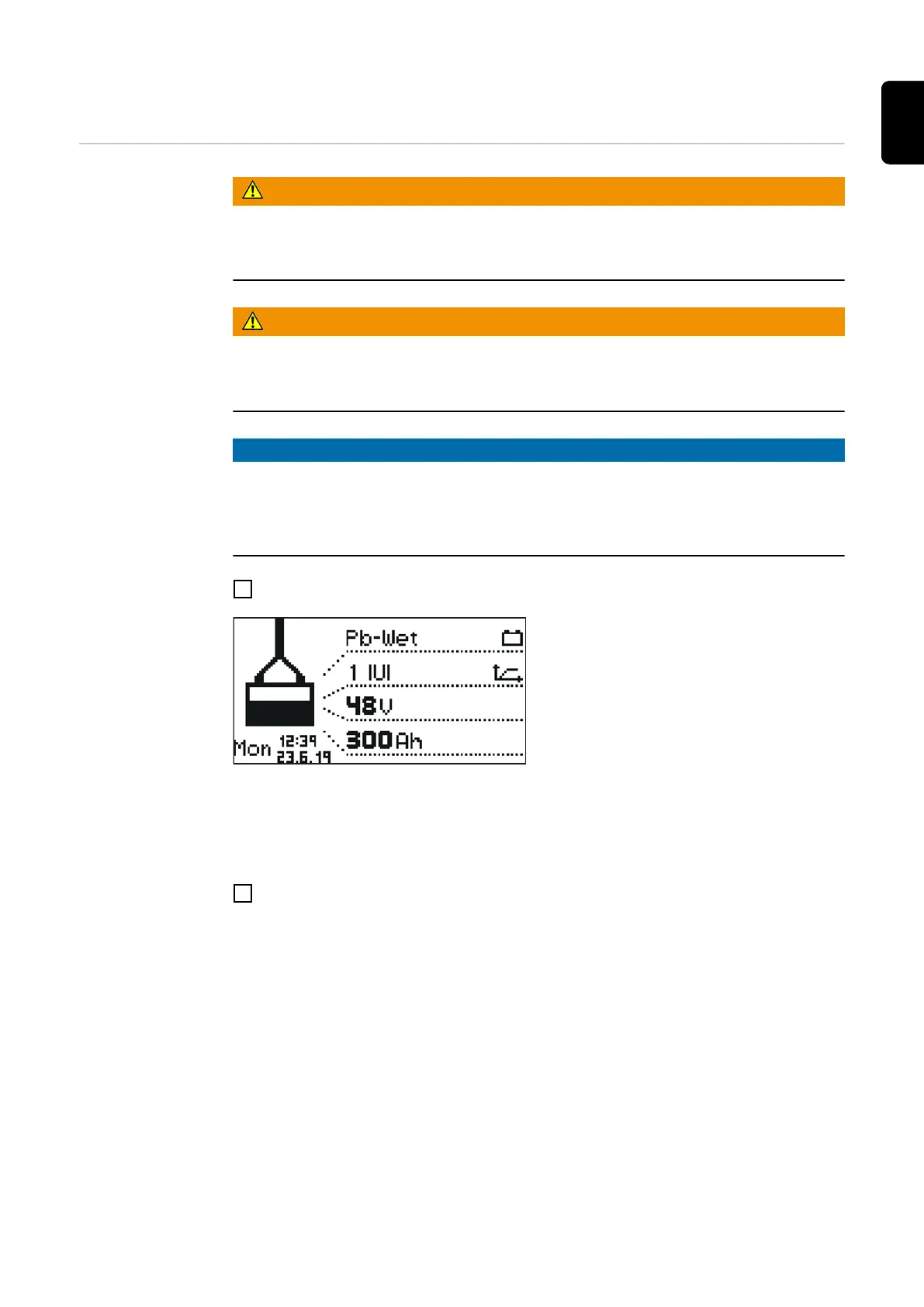

The display shows the charger paramet-
ers:
- Type of battery (e.g. wet)
- Charging characteristic (e.g. IUI)
- Nominal voltage (e.g. 48 V)
- Capacity (e.g. 300 Ah)
- Day of the week, date and time
The charger parameters can be set individually. More information on the charger para-
meters can be found under "Configuration mode" in the "Display functions" chapter.
Ensure that the battery to be charged matches the configuration of the battery charging
system.
2
Connect the charging plug
or connect the
(+) charging lead to the positive pole of the battery and the
(-) charging lead to the negative pole of the battery
The charger detects that the battery is connected and starts charging. If start-up delay is
activated, then charging will start at the end of the set delay time. For more information,
see "Configuration mode" in the "Display" section.
During the charging process the display shows the following values:
- Current charging current (A)
- Current charging voltage (V)
- The charge already input (Ah)
- Battery temperature with the "temperature-controlled charging" option
- The time (hh:mm) since charging started
23
